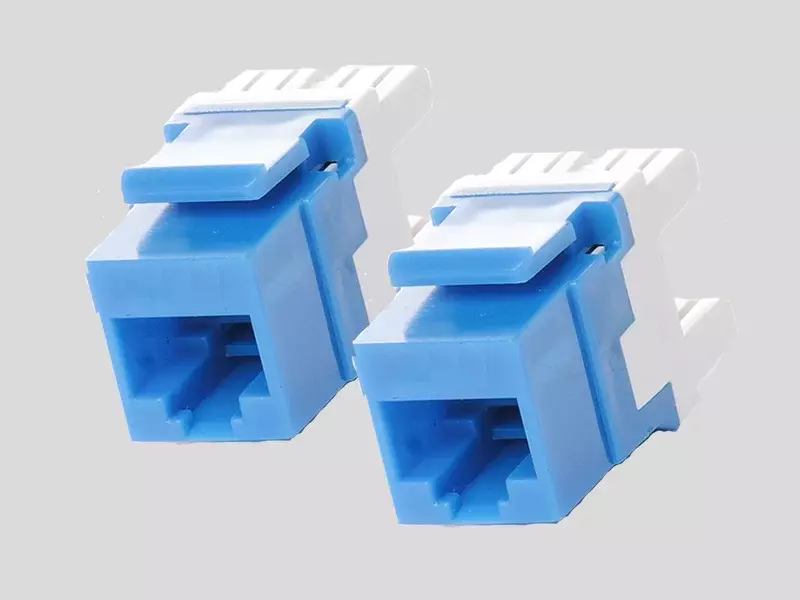

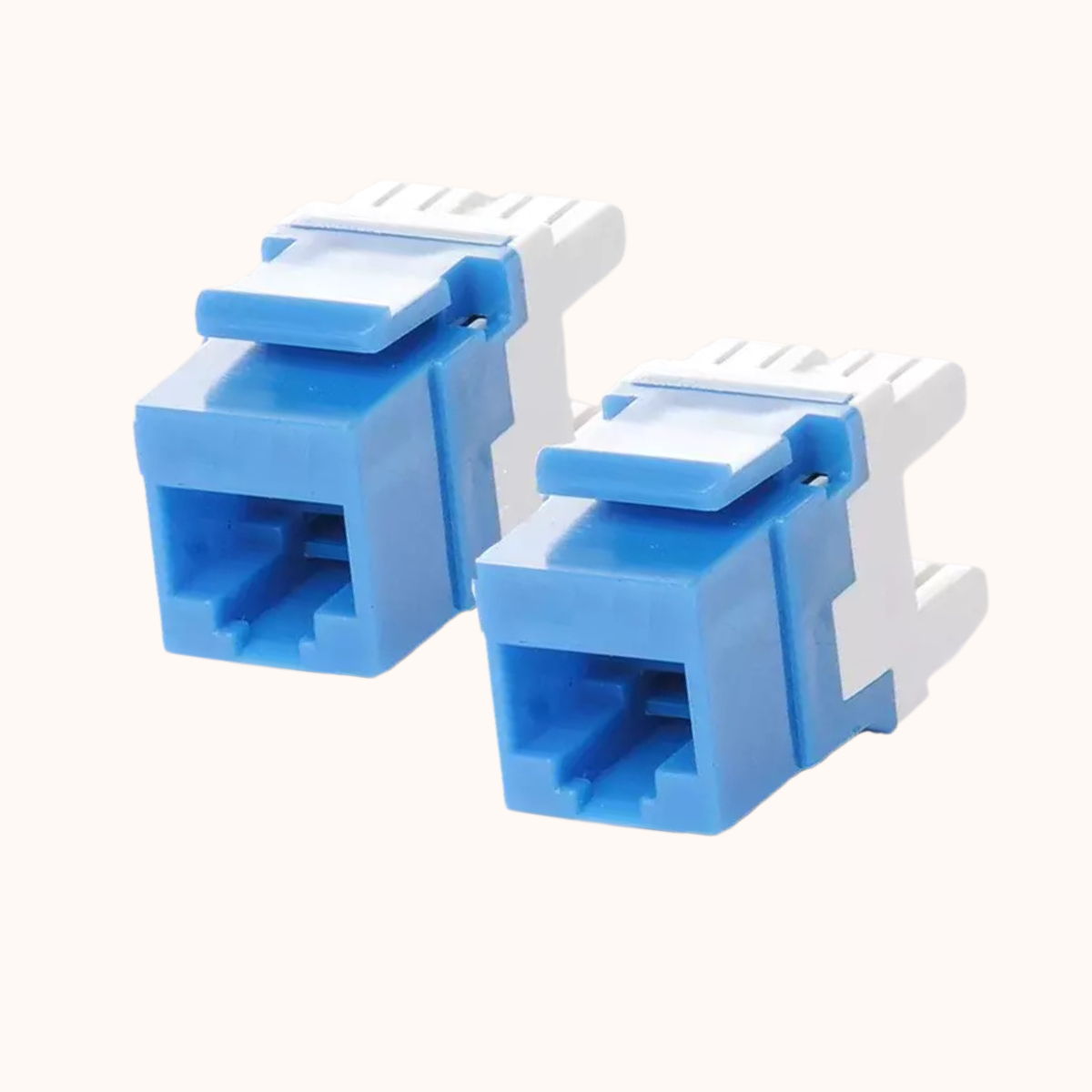

Delton Cat6 UTP, Toolless Type, Keystone Jack (DLT-KW6U-X)
Specification | Details |
|---|---|
Outer Dimensions | 35.5 mm x 23.15 mm x 15 mm |
Outer Housing | PC (Polycarbonate) |
Terminal Pin Housing | PBT / PC |
PCB | Double-sided, FR4, 1.0 mm |
Terminal Pins | PH Bronze, Gold Plating over Nickel Plating |
Pins Inner | Bronze with Gold Plating |
Plug Insertion | 750 Cycles with UL Compliant Male Plugs |
Locking on Face Plate | Top & Bottom |
Operating Temperature | -10°C to 60°C |
Storage Temperature | -40°C to 68°C |
Current Rating | 1.5 Amps |
IDC | 200 Termination Cycles |
ABS | Very strong material; provides good finish; can be mounted on back box with 60 mm pitch |
Specification | Details |
|---|
Product Type | Cat6 UTP Keystone Jack |
RJ45 Jack Housing | PC, UL94V-2, with optional color |
Contact Bracket | PC, UL94V-2, transparent color |
PCB Material | FR-4, Thickness = 1.2 mm |
RJ45 Jack Contact | Phosphor bronze with nickel plating; 50 µin gold plating on contact area |
IDC Housing | PC, UL94V-2 |
IDC Terminal | Phosphor bronze with tin plating |
IDC Cap | PC, UL94V-2 |
Insertion Cycles | 750 times |
IDC Life | Minimum 200 termination cycles |
Wire Compatibility | AWG 22–24 |
Operating Temperature | -10°C to 60°C |
Storage Temperature | -40°C to 70°C |
Current Rating | 1.5 Amps |
Insulation Resistance | >100 MΩ (Megaohms) |
Contact Resistance | Max variation: 20 mΩ (Milliohms) |
Insertion Force | 50N, Duration: 60 ± 5 seconds |
General
- Type Of OutletsDual
