TP-Link 5-Port 10/100/1000Mbps Desktop Switch-LS105G
Brand | TP-Link |
Number of Ports | 5 |
Included Components | Installation Guide, 5-Port 10/100/1000Mbps Desktop Switch, Power Adapter |
Compatible Devices | Desktop |
Switch Type | unmanaged |
Category | Details |
|---|---|
Hardware Features | |
Standards & Protocols | IEEE 802.3i / 802.3u / 802.3ab / 802.3x, IEEE 802.1p |
Interface | 5× 10/100/1000 Mbps Ports (Auto-Negotiation, Auto MDI/MDIX) |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
LED Indicators | System Power, Link/Act (per port) |
Dimensions (W × D × H) | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
Max. Power Consumption | 2.776 W (220V/50Hz) |
Max Heat Dissipation | 9.466 BTU/h |
Performance | |
Packet Forwarding Rate | 7.4 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1 Mb |
Jumbo Frame | 16 KB |
Software Features | |

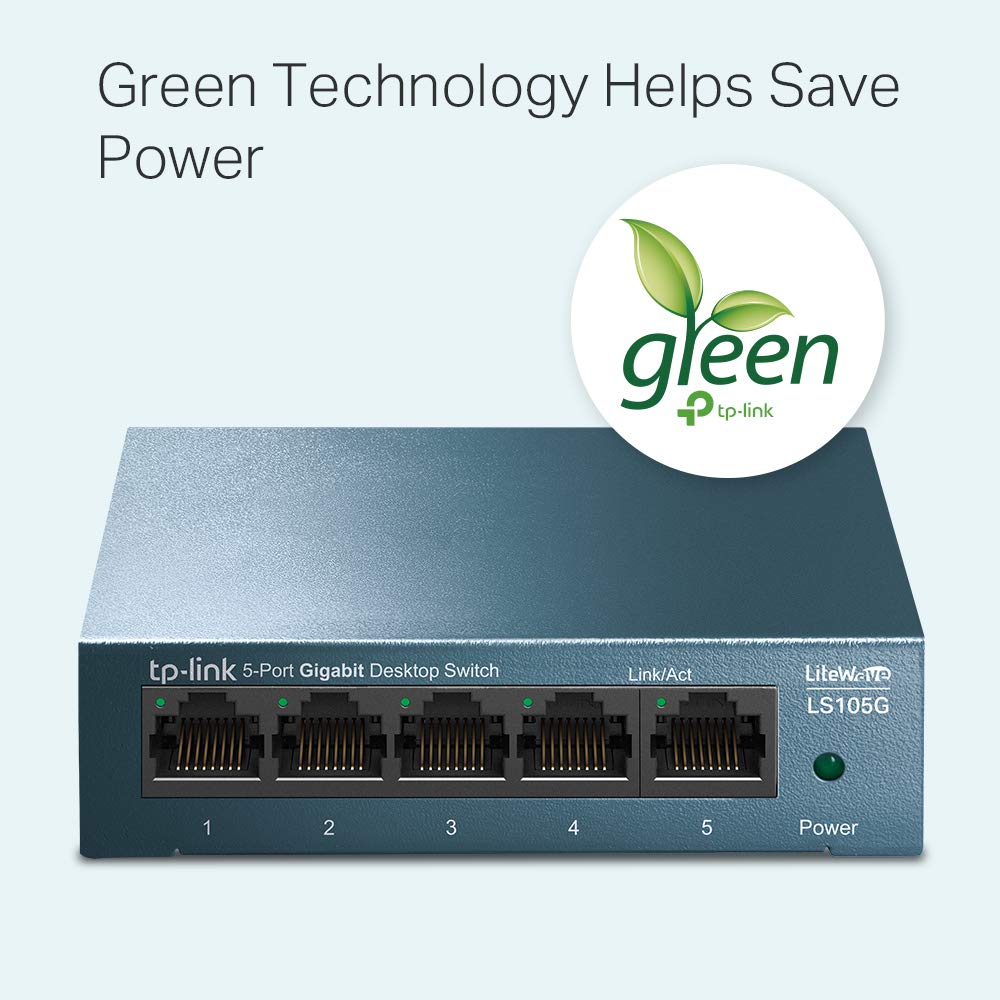

Advanced Features | Green Technology, 802.3X Flow Control, 802.1P/DSCP QoS |
Transmission Method | Store and Forward |
Others | |
Certification | CE, FCC, RoHS |
Package Contents | 5-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide |
General
- TypesUnManaged
- Switching Capacity10 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports5
- Rack MountingNo
