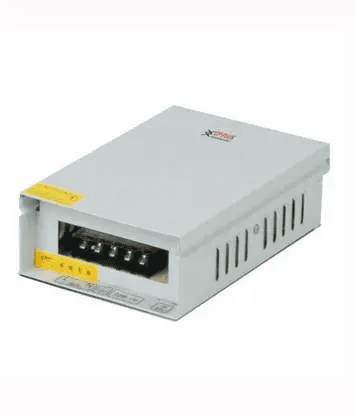

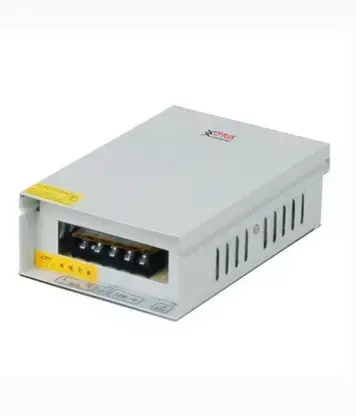

CP PLUS 8CH Power Supply
Specification | Details |
|---|---|
Model | CP-DPS-MD100P-12D |
Type | 8-Channel CCTV Power Supply (SMPS) |
Input Voltage | 180–264V AC |
Output Voltage | 12V DC |
Current Output | 0–10A (Total) |
Rated Power | 120W |
Ripple & Noise (max.) | 100mVp-p |
Voltage Adjustment | 11.4–13.2V |
Line Regulation | ±1.0% |
Load Regulation | ±5.0% |
Efficiency (Typ.) | 84% |
AC Current (Typ.) | 5A @ 115VAC; 3A @ 230VAC |
Inrush Current (Typ.) | 20A @ 115VAC; 40A @ 230VAC |
Leakage Current | <2mA @ 240VAC |
Overload Protection | 110–200% rated output power; Protection type: Shut down O/P, re-power |
Working Temperature | -20°C to +40°C |
Storage Temperature | -20°C to +85°C |
Humidity | 20–90% RH (Non-condensing) |
Vibration Resistance | 10–500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z axes |
Dimensions (L×W×H) | 187 × 103 × 52 mm |
Weight | Approximately 0.5 kg |
Housing | Metal Case for uniform/quick heat dissipation |
Protections | Overload, Over Voltage, Short Circuit |
Voltage Regulator | Built-in Voltage Regulator Switch for voltage adjustment |
EMI Filter | Built-in EMI filter to nullify interference |
Warranty | 1 Year |
