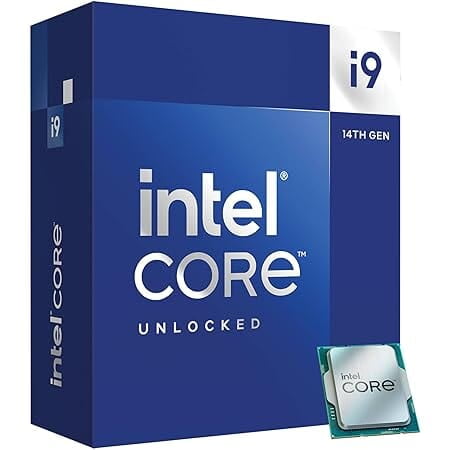

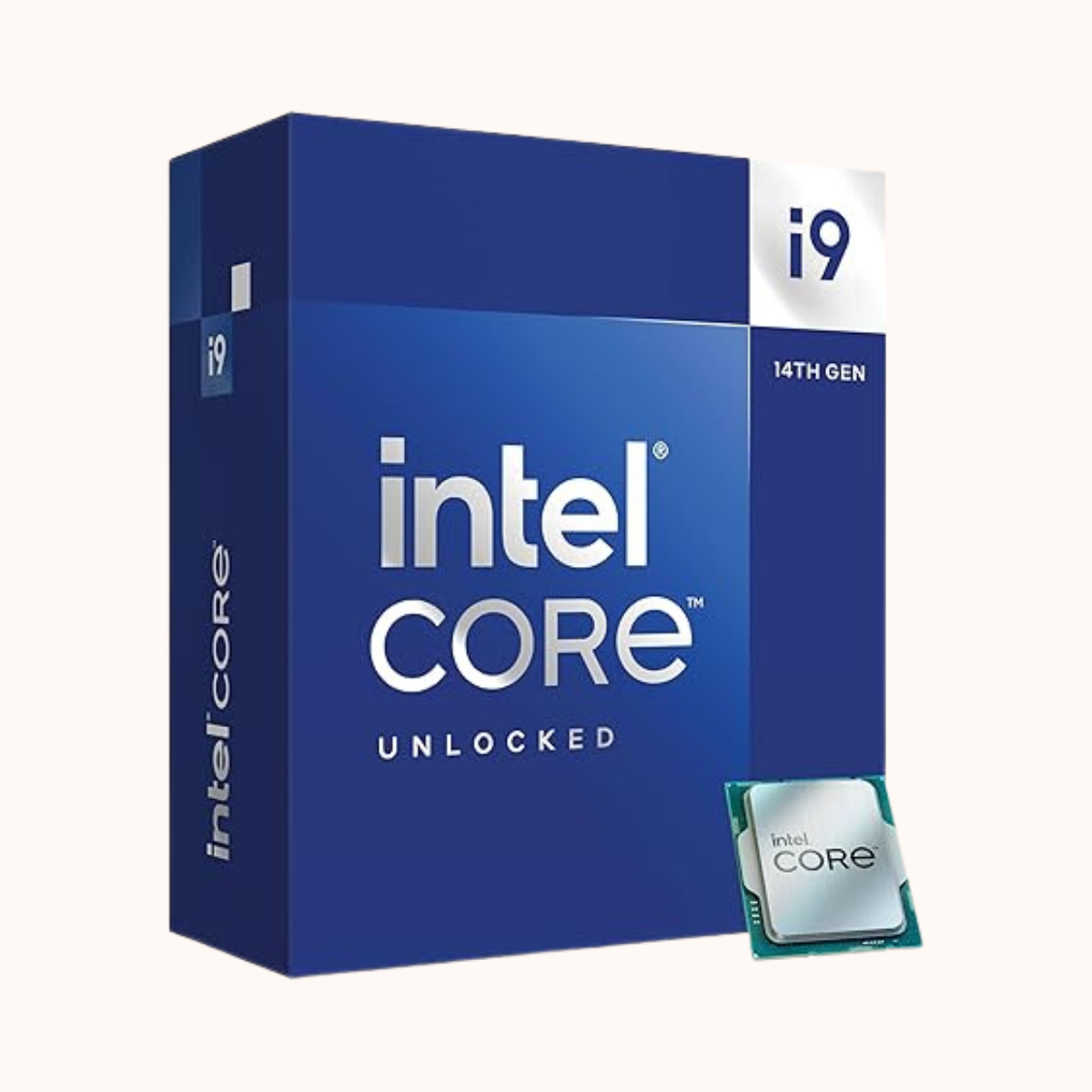

Intel Processor CPU 8 P-Cores + 16 E-Cores) with Integrated Graphics - Unlocked| I9-14900K

Model

Intel Core i9-14900K

Generation

14th Generation Intel Core

Core Architecture

Hybrid Architecture with 8 Performance Cores (P-Cores) + 16 Efficiency Cores (E-Cores)

Total Cores

24 Cores (8 P-Cores + 16 E-Cores)

Total Threads

32 Threads

Base Clock Speed

- P-Cores Base Frequency: 3.2 GHz - E-Cores Base Frequency: 2.2 GHz

Max Turbo Frequency

- P-Cores Turbo Boost Max 3.0: Up to 6.0 GHz - E-Cores Turbo: Up to 4.3 GHz

Cache

- L3 Cache: 36 MB - L2 Cache: 32 MB

Unlocked for Overclocking

Yes (Fully unlocked multiplier for tuning and overclocking)

Integrated Graphics

Intel UHD Graphics 770

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.65 GHz

Graphics Features

- 4K Support - Intel Quick Sync Video - DirectX 12 and OpenGL 4.5

Power Consumption (TDP)

- Base TDP: 125W - Maximum Turbo Power: 253W

Memory Support

- DDR5-5600 and DDR4-3200 - Up to 128GB RAM capacity

PCIe Support

PCIe 5.0 and PCIe 4.0 compatibility

Socket Compatibility

LGA 1700

Cooling Solution

Not included (Aftermarket cooling required)

Advanced Technologies

- Intel Deep Learning Boost (DL Boost) - Intel Speed Shift and Turbo Boost Max Technology 3.0 - Hyper-Threading Technology

Applications

- Gaming with cutting-edge performance - Content Creation and Video Editing - High-end Computing

Power Efficiency Features

Supports Efficient-core scheduling for optimized multitasking

Overclocking Features

- Enhanced Thermal Velocity Boost (TVB) - Per-core and all-core overclocking

Warranty

3-Year Limited Warranty
