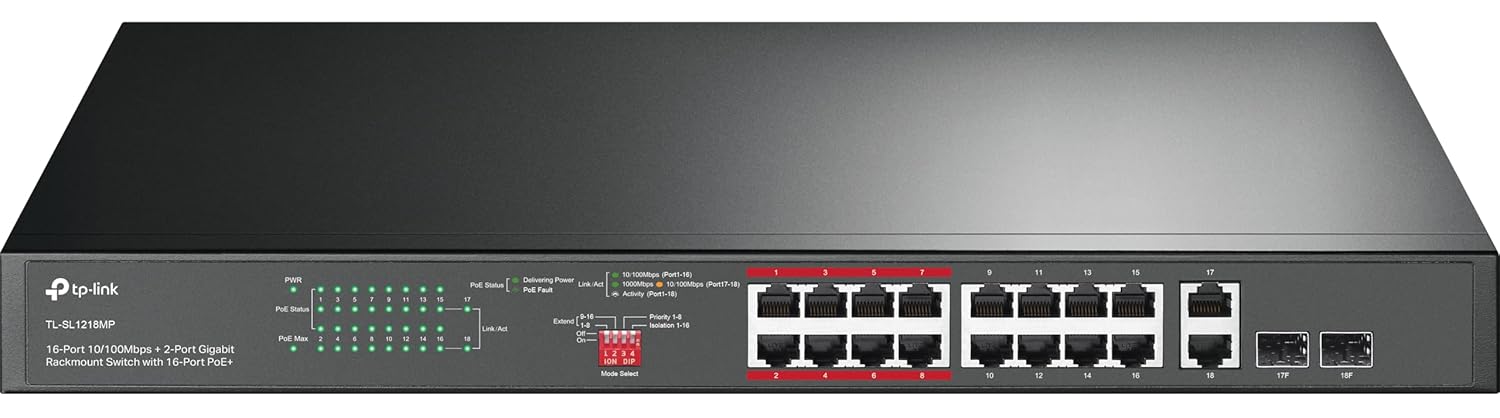

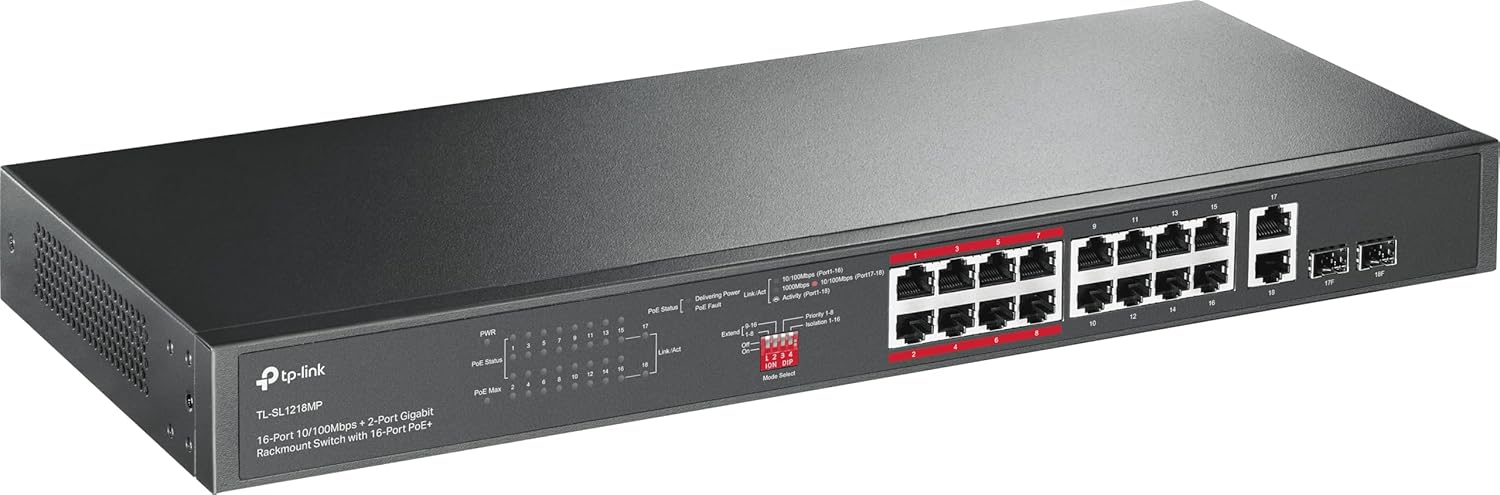

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch-TL-SL1218MP

Model

TL-SL1218MP

Interface

16× PoE+ 10/100 Mbps RJ45 Ports
2× Gigabit RJ45 Ports
2× Combo Gigabit SFP Slots

Network Media

10BASE-T: Cat 3, 4, 5 UTP/STP (max 100m)
100BASE-TX: Cat 5, 5e UTP/STP (max 100m)
1000BASE-T: Cat 5/5e/6 UTP/STP (max 100m)
1000BASE-X: MMF/SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

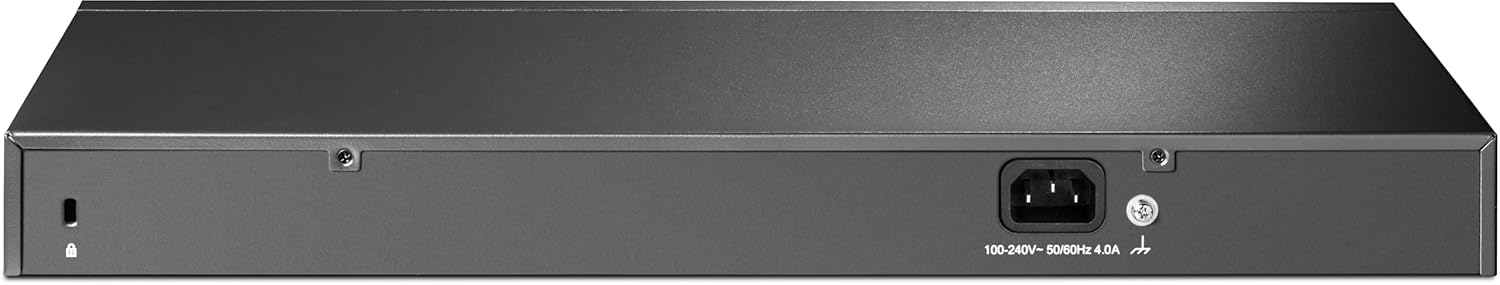

Power Supply

100–240V AC, 50/60 Hz

PoE Ports

Ports 1–16 (802.3af/at compliant)

PoE Power Budget

192 W

Switching Capacity

7.2 Gbps

Packet Forwarding Rate

5.36 Mpps

MAC Address Table

8K

Jumbo Frame

10 KB

Dimensions (W×D×H)

440 × 180 × 44 mm (44.0 × 18.0 × 4.4 cm)

Max Power Consumption

217.22 W (with 192W PD connected)
18.73 W (no PD connected)

Max Heat Dissipation

741.15 BTU/h (with PD connected)
63.89 BTU/h (no PD connected)

Advanced Features

Port Priority Mode
Extend Mode (Up to 250m)
IEEE 802.3x Flow Control
Mac Address Auto-Learning and Aging

Transmission Method

Store-And-Forward

Certifications

CE, FCC, RoHS

Package Contents

TL-SL1218MP, Power Cable, Installation Guide, 2 Mounting Brackets with fittings
