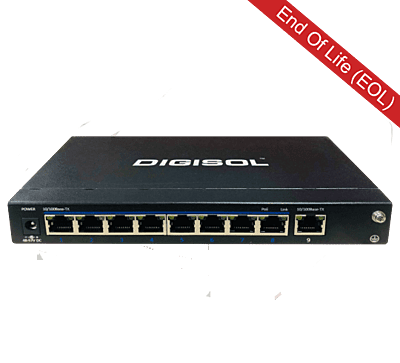

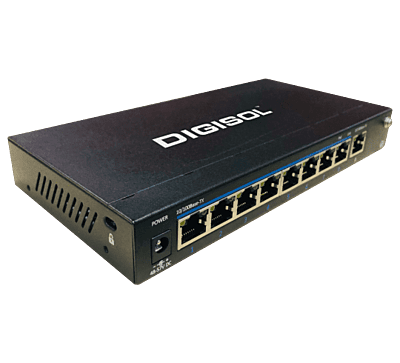

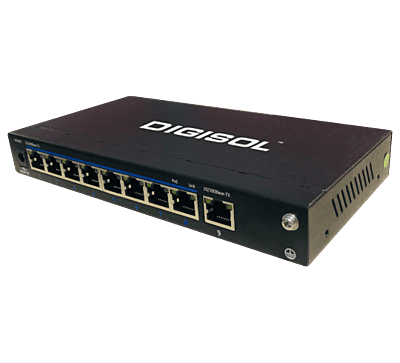

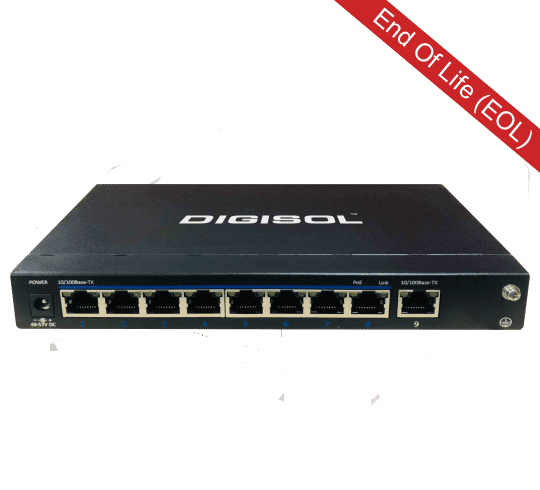

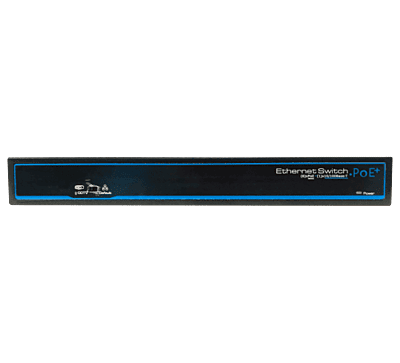

DIGISOL Desktop Switch with 8 PoE Ports and 1 Uplink Port, DG-FS1009PF-A
Key Features
9 x 10/100Mbps Auto-negotiation Fast Ethernet RJ45 ports
Supports PoE on 8 ports
Supports PoE power up to 30W
Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af and IEEE802.3at standards
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
Supports MDI/MDI-X auto crossover
4K MAC address table
Plug and Play installation
Supports VLAN mode
Max. PoE Budget 120W
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports | PoE Ports | 8 x 10/100 Mbps auto-sensing UTP RJ-45 ports with PoE |
Uplink Port | 1 x 10/100Mbps auto-sensing UTP RJ-45 | |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T Ethernet |
Fast Ethernet | IEEE 802.3u 100BASE-TX Fast Ethernet | |
Flow Control | IEEE 802.3x Full Duplex Flow Control | |
PoE | IEEE 802.3af/ IEEE 802.3at Power over Ethernet | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 5 (100 m) |
100BASE-TX | UTP Cat. 5, 5e (100 m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Performance Specifications | Forwarding mode | Store-and-forward |
MAC Address database | 4K | |
PoE | Max. PoE budget | 120W |
Status LEDs |
| Power, PoE in Use for each port, Link & activity indicators for each port, PoE-Max for max. PoE consumption |
Environmental Specifications | Operating temperature | 0°C ~ 50°C |
Storage temperature | -40°C ~ 85°C | |
Operating humidity | 10 %~90 % RH (non-condensing) | |
Storage humidity | 0 to 90 % RH (non-condensing) | |
Power Adapter |
| DC 48V ~54V, 2.5A |
Physical Specifications | Dimensions (l x w x h) | 200 x 101.8 x 27 mm |
Minimum System Requirements |
| Network card for each PC or Server, Network cables Min. Cat.5 for 100 Mbps |
Warranty |
| DIGICARE Limited Lifetime Warranty |
