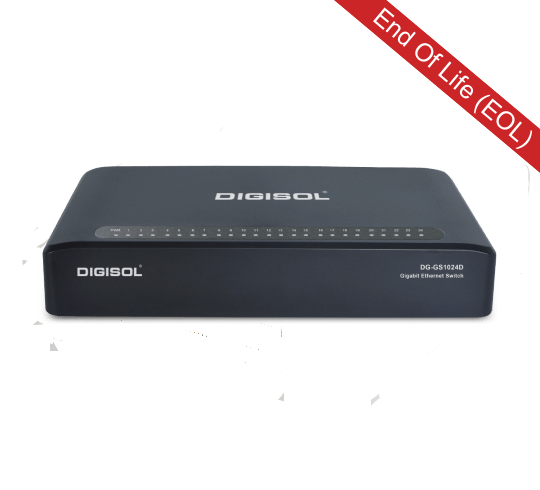

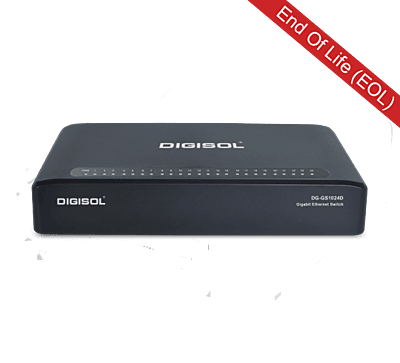

DIGISOL 24 Port 10/100/1000Mbps Gigabit Ethernet Unmanaged Desktop Switch, DG-GS1024D
Key Features
24 x 10/100/1000Mbps RJ-45 Nway ports
Supports Auto-Negotiation & Non-Blocking Wire Speed
Supports High-Speed Networking and Jumbo Frames
Supports Store and Forward Architecture
Supports Auto MDI/MDI-X Crossover
Energy Efficient
Fan-less Design
IEEE802.3x Full-duplex flow control
Plug and Play installation
Switching Capacity: 48Gbps Backplane
Technical Specifications
Category | Item | Description |
|---|---|---|
General | Model | DG-GS1024D |
Physical Ports |
| 24 x Gigabit Ethernet Ports, RJ-45 |
Standards | Ethernet | IEEE802.3 10BASE-T |
Fast Ethernet | IEEE802.3u 100BASE-TX | |
Gigabit Ethernet | IEEE802.3ab 1000BASE-T | |
Features | Packet Buffer | 4.1 Mbit |
MAC Address Table | 8K | |
Jumbo Frame | Up to 9K Bytes | |
LED Indicators |
| Power (Green), Link/Activity (Green) |
Power Input |
| 12V/1.5A Power Adapter, Support Power on/off Switch Function |
Dimension |
| 238(W) x 40(H) x 130(D) mm |
Fan Design |
| Fan-Less |
Temperature | Operating | 0°C~40°C |
Storage | -40°C~70°C | |
Humidity |
| 10%~90% RH (non-condensing) |
General
- TypesUnManaged
- Switching Capacity24 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports24
- No. Of RJ45 Ports24
- No. Of Power Supplies Supported1
- Rack MountingYes
