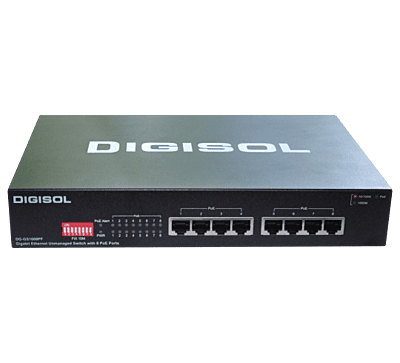

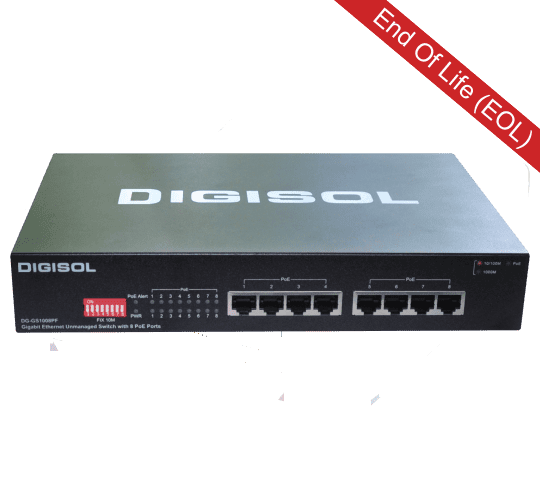

Digisol 8 Port Gigabit Ethernet Unmanaged PoE Switch-DG-GS1008PF (H/W Ver. B2)
Key Features
8 x 10/100/1000 Mbps RJ-45 Power over Ethernet Ports
Complies with IEEE802.3, IEEE802.3x, IEEE802.3af and IEEE802.3at standards
Supports MDI/MDI-X auto crossover
Up to 2000Mbps data transfer rates in Full Duplex Mode
High Performance
Plug and Play installation
Link/ACT LED for each port & PoE LED for PoE ports
Supports wire speed packets filtering and forwarding rate
Supports store-and-forward switching infrastructure
Internal Power Supply
Max. PoE Budget 130W
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports | Number and Type | 8 x 10/100/1000 Mbps auto-sensing UTP RJ-45 Ports with PoE |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T Ethernet |
Fast Ethernet | IEEE 802.3u 100BASE-TX Fast Ethernet | |
Flow Control | IEEE 802.3x Full-duplex Flow Control | |
Gigabit Ethernet | IEEE 802.3ab 1000BASE-T | |
Auto-negotiation | IEEE/ANSI 802.3 Nway auto-negotiation | |
PoE | IEEE-802.3af / IEEE-802.3at | |
Packet forwarding rate | 10BASE-TX | 14881PPS |
100BASE-TX | 148810PPS | |
1000BASE-TX | 1488100PPS | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 4, 5 (100 m) |
100BASE-TX | UTP Cat. 5 (100 m) | |
1000BASE-TX | UTP Cat. 5e, Cat. 6 (100 m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Gigabit Ethernet | 1000 Mbps (Half-Duplex), 2000 Mbps (Full Duplex) | |
Power Supply |
| Internal (100~240VAC) |
Performance Specifications | Forwarding mode | Store-and-forward |
Backplane | 16 Gbps | |
Buffer memory | 192 Kbytes | |
MAC Address database | 4K | |
PoE Power Budget |
| 130W |
DIP Switch |
| Support 10Mbps /200m transition function for PoE ports |
Status LEDs |
| Power, Link/Act, PoE Act/Status indicators |
FAN |
| Fanless design |
Environmental Specifications | Operating temperature | 0°C~40°C |
Operating humidity | 10 %~90 % RH (non-condensing) | |
Storage temperature | -20°C~60°C | |
Physical Specifications | Dimensions (l x w x h) | 265 x 185 x 45 mm |
Weight | 1.68kg | |
System Requirements |
| Network card for each PC or Server, Network Cables Min. Cat.5 for 100 Mbps |
Warranty |
| DIGICARE Limited Lifetime Warranty |
General
- TypesUnManaged
- Switching Capacity16 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports8
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
- Rack MountingYes
