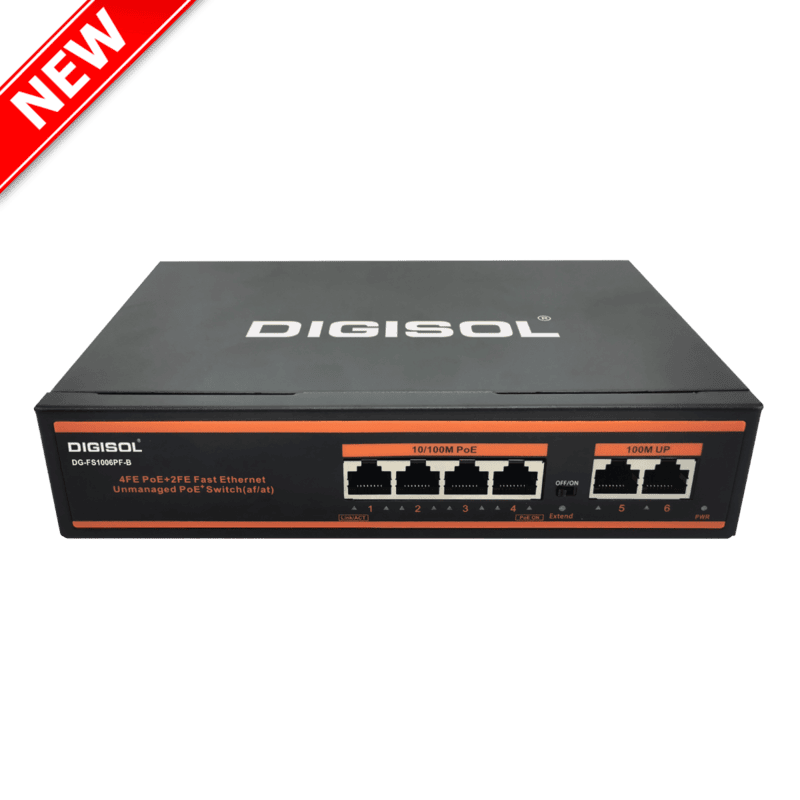

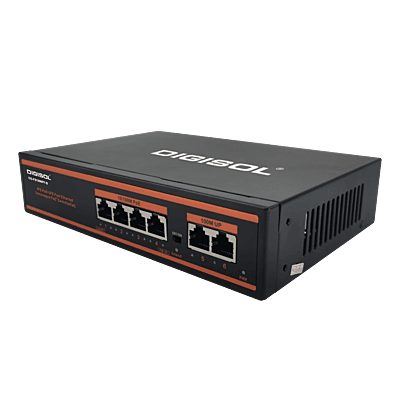

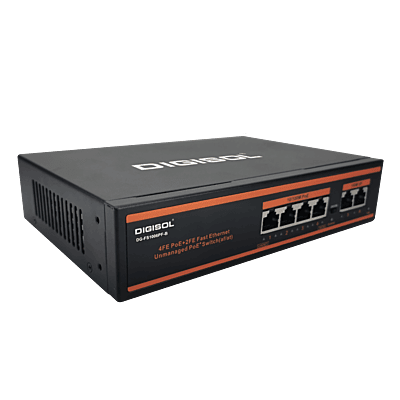

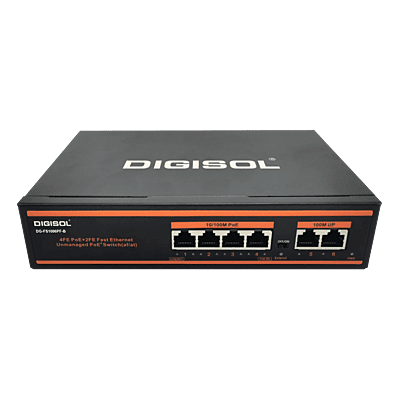

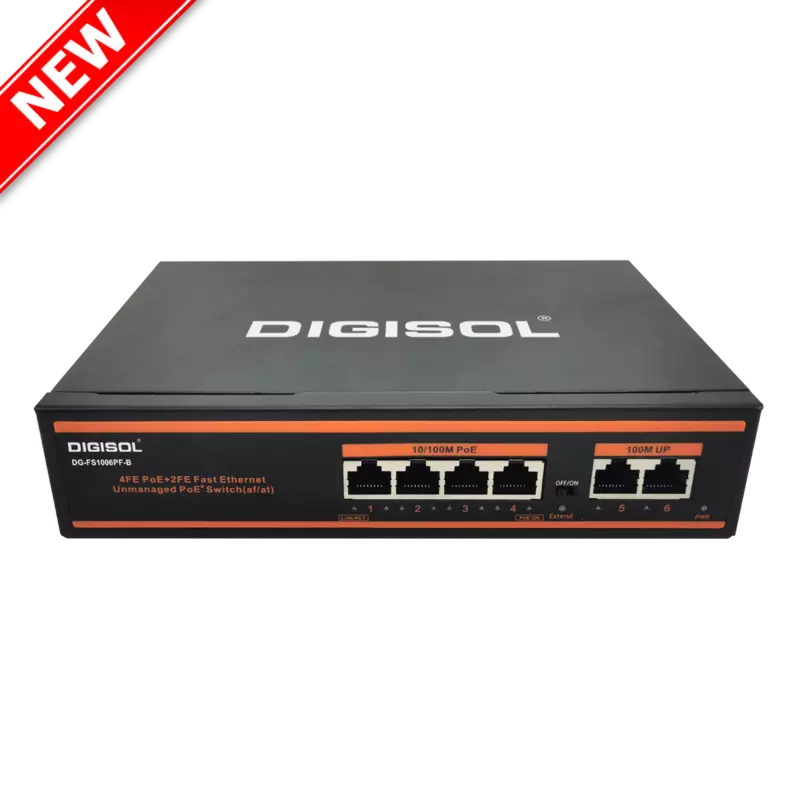

DIGISOL 4 Port PoE Fast Ethernet Unmanaged Switch with 2 Uplink Ports – DG-FS1006PF-B
Key Features
4 PoE 10/100Mbps ports + 2 10/100Mbps uplink ports
Support PoE power up to 15.4W (IEEE802.3af) / 30W (IEEE802.3at) for PoE ports
All ports support MDI/MDIX
PoE: 78W
Plug and play installation
Forwarding Mode: Store-And-Forward
Switching capacity: 1.2Gbps Full duplex
Built-in AC Power Supply
Support 6KV lightning protection
Fanless for quiet functioning with natural cooling
Small and compact design, suitable for desktop or wall-mounting
Supports distance of 250m at 10 Mbps
Technical Specifications
Category | Item | Description |
|---|---|---|
Ports Configuration | Network Ports | 6 |
PoE Port | 4 x 100Mbps. Max. 30W Output of Single PoE Port | |
Transmission Distance | 0~100m | |
Indicators | Power, VLAN, Port 1-6 (Link, Powering, Data Transmitting) | |
Standard | Network Protocol | IEEE802.3i/802.3u/802.3x/802.3af/802.3at |
Performance | Switching Capacity | 1.2Gbps Full duplex |
Packet Forwarding Rate | 0.8928Mpps/port | |
Forwarding Mode | Store-and-forward | |
MAC Address Table | 1K | |
Transmission Distance | 1-4 Port: 100Mbps: 0~100m; 10Mbps: 0~250m | |
VLAN Mode |
| Supports VLAN Mode |
Power Over Ethernet | PoE Standard | IEEE802.3af, IEEE802.3at |
PoE Power Supply | 1/2(+), 3/6(-) | |
Transmission Distance | 0~250m/10Mbps, 0~100m/100Mbps | |
PoE Feature | All ports support MDI/MDIX | |
General | Power Source | Built-in Power Supply |
Input | 110-264V AC, 50/60Hz | |
PoE Power Budget | 78W | |
Power Consumption | <5W | |
ESD | Air discharge: 1.5KV, Contact discharge: 1.5KV | |
Anti-Thunder Level | Common mode: 2KV, Differential mode: 2KV | |
Operating Temperature | -0°C-55°C | |
Humidity | 20%-95%, non-condensing | |
Storage Temperature | -20°C-70°C | |
Weight |
| 0.95Kg |
