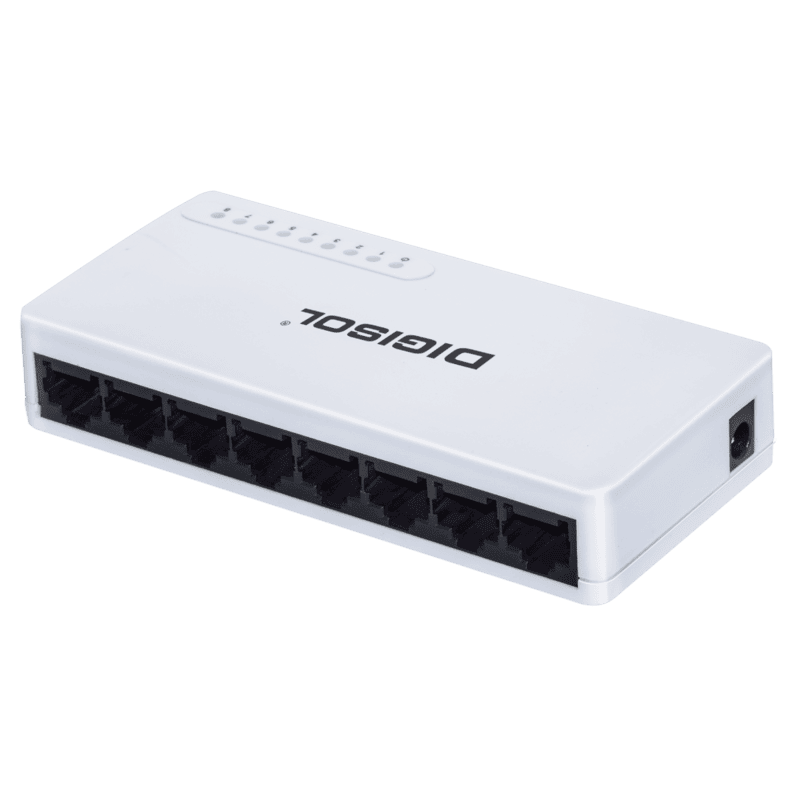

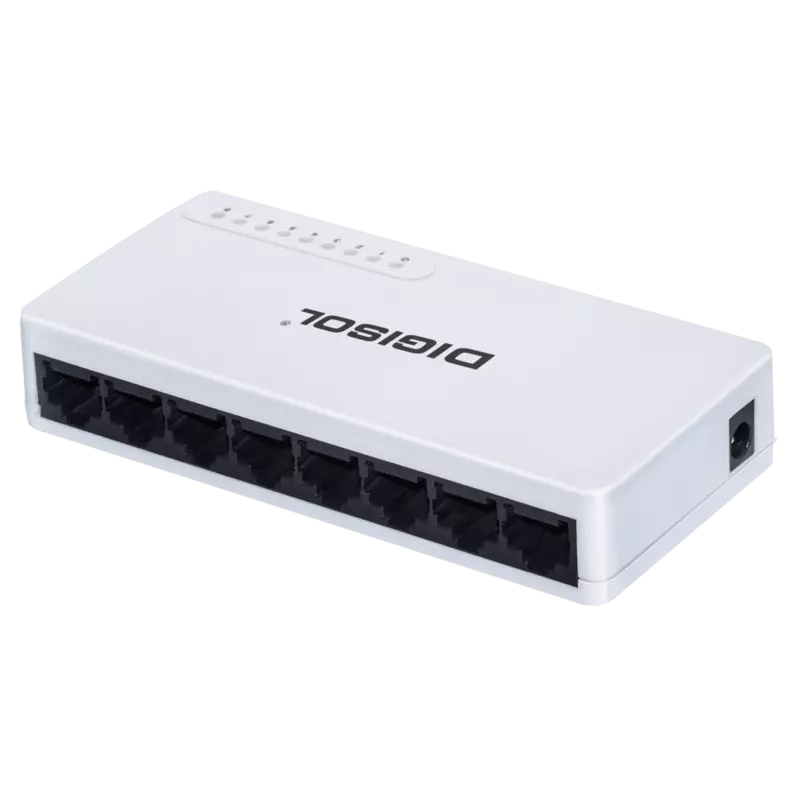

DIGISOL 8 Port 10/100Mbps Ethernet Unmanaged Switch, DG-FS1008DGE
Key Features
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
1.6Gbps Switching Capacity
4K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
Fanless design ensures quiet operation
Plug and Play design simplifies installation
Power In: DC 5v 1000ma
Technical Specifications
Category | Item | Description |
|---|---|---|
General | Model | DG-FS1008DGE |
Chipset |
| IP178G/RTL8309N |
Standards |
| IEEE802.3 10Base-T, IEEE802.3u 100Base-TX |
Network Media (Cable) | 10BASE-T: UTP category 3, 4, 5 cable (maximum 50m) | |
Ports | Number of Ports | 8 10/100Mbps RJ45 Ports |
AUTO Negotiation/AUTO MDI/MDIX | Yes | |
LED Indicators |
| Link/Act, Power |
Performance | Transfer Method | Store-and-Forward |
Switching Capacity | 1.6G | |
MAC Address Learning | Automatically learning | |
Physical Specifications | Dimensions (L × W × H) | 123 * 59 * 22mm |
Environmental | Storage Temperature | -40°C~70°C |
Operating Temperature | 0°C~40°C | |
Storage Humidity | 5%~90% non-condensing | |
Operating Humidity | 10%~90% non-condensing |
