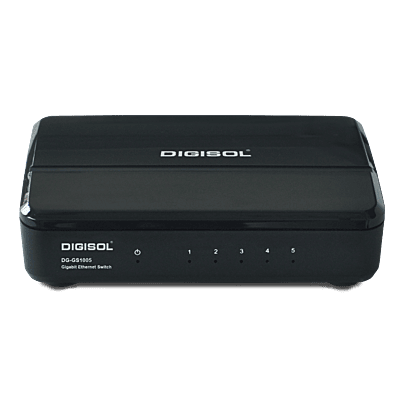

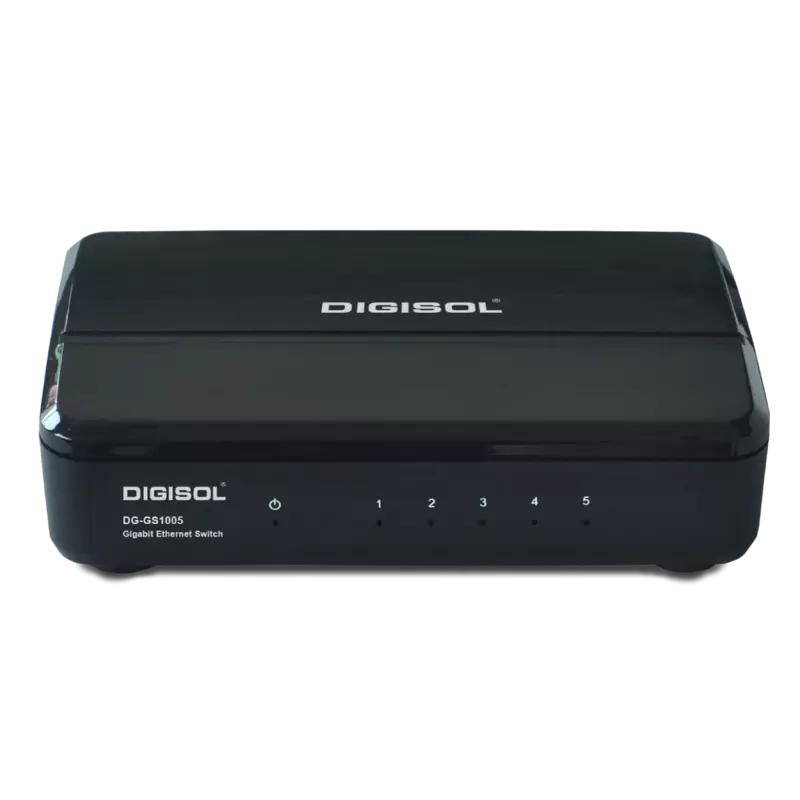

DIGISOL 5 Port 10/100/ 1000Mbps Gigabit Ethernet Unmanaged Desktop Switch, DG-GS1005
Key Features
Support IEEE802.3, IEEE802.3u and IEEE802.3ab standards
Supports auto MDI/MDI-X crossover detecting and auto correction
Supports full and half duplex for 10/100Mbps, and full duplex for 1000Mbps
Wire-speed packet filtering and forwarding rate
Store-and-forward architecture filters fragment & CRC error packets
Supports IEEE802.3az energy efficient Ethernet function
RoHS compliant
Technical Specifications
Category | Item | Description |
|---|---|---|
General | Model | DG-GS1005 |
Interface |
| 5 x 10/100/1000Mbps, RJ-45 Ports |
Features |
| Auto Negotiation, Full Duplex, Auto MDI/MDIX, Plug and Play |
Temperature | Operating | 0°C ~ 40°C (32°F ~104°F) |
Storage | -20°C ~ 70°C (-4°F ~158°F) | |
MAC Address Table |
| 2K |
Buffer Memory |
| 128K bytes |
Jumbo Frame |
| 9K bytes |
LED Indications |
| 1 x power LED (Power: Green), 5 x port LEDs (Link/Act: Green) |
Power |
| External power supply 5V/1A |
Power Consumption | Max AC Input | 3.61W |
Physical Specifications | Dimensions | 99 x 24.5 x 67mm |
Case |
| Plastic |
Humidity | Operating | 10% ~ 90% RH, non-condensing |
Storage | 5%~90% RH, non-condensing |
