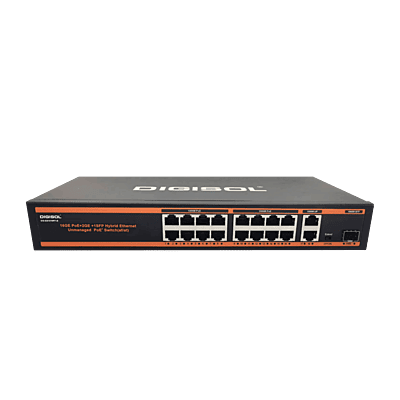

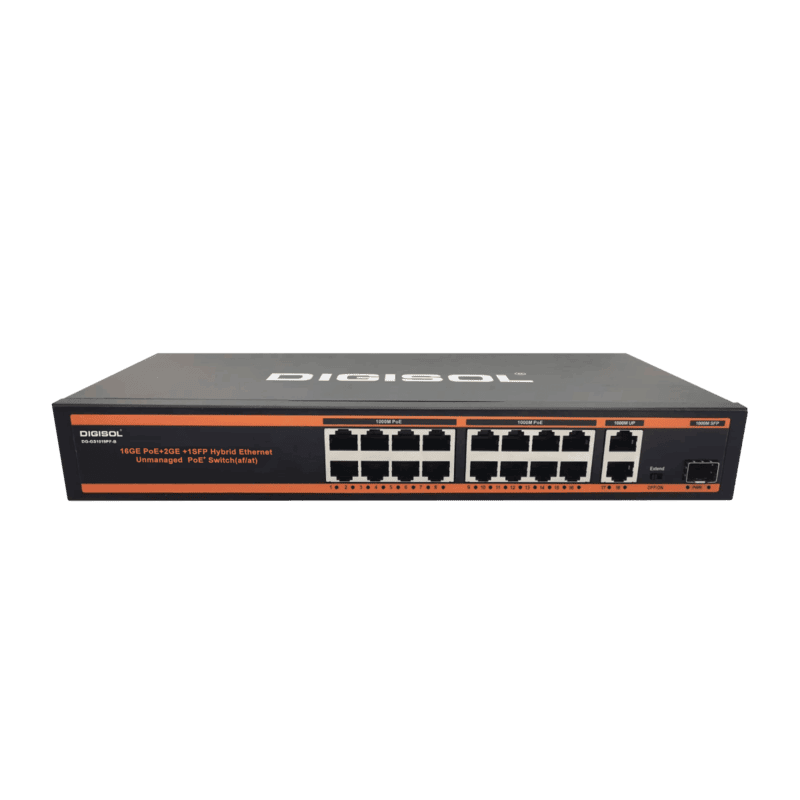

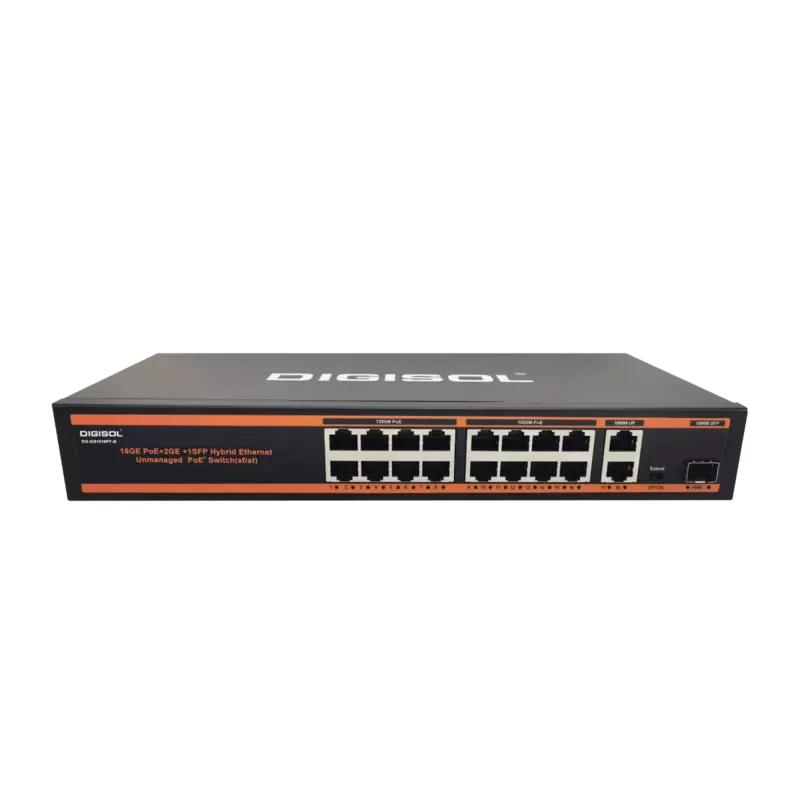

DIGISOL 16 Port PoE Gigabit Unmanaged Switch with 3 Uplink Ports – DG-GS1019PF-B
Key Features
16 x 10/100/1000Mbps PoE ports, 2 x 10/100/1000Mbps uplink ports, 1 x 1000Mbps SFP Slot
Support IEEE802.3af/at
Support restrain network storm, VLAN function
Support Max Transmission distance up to 100m
All ports supported by MDI/MDIX auto flip and self-negotiation
Built-in power supply
Maximum power of single PoE port: 30W
Whole machine power: 300W
Adopts store-and-forward architecture
Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall mounting
Support lightning protection 4KV
Supports distance of 250m at 10Mbps
Technical Specifications - Network
Item | Descriptions |
|---|---|
Power | AC 110V-240V |
Power Adapter Voltage | 300W (52V, 2.3A) |
Network Port | 1-16 Port: 10/100/1000Mbps |
Uplink Port | 10/100/1000Mbps |
SFP Port | 1000Mbps |
Transmission Distance | 1~16 Port: 100/1000Mbps: 0~100m |
Transmission Medium | Cat5/5e/6 standard network cable |
Network Standard | IEEE802.3/802.3u, IEEE802.3x, IEEE802.3ab |
Switching Capacity | 38Gbps |
Packet buffer memory | 1Mbits |
Throughput | 28.272Mpps |
MAC Table | 2K |
Packet Forwarding Rate | 10Mbps: 14880pps/port |
Technical Specifications - Power Over Ethernet
Item | Descriptions |
|---|---|
PoE Standard | IEEE 802.3af/at |
PoE Power Supply | End-Span (1/2+3/6-) |
PoE Power | af 15.4W, at 30W |
Port Function | Power priority mechanism, Fast and Forward, MAC automatic earning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
R145 port | PoE Ethernet Port |
LED Indicator
LED Indicator | Descriptions |
|---|---|
LINK/ACT, 100Mbps, PoE Status Indicator, Power indicator, Extender | Various status indicators |
Environmental
Item | Descriptions |
|---|---|
Working temperature | 0°C~55°C |
Relative Humidity | 20-95% |
Storage temperature | -20°C~70°C |
Mechanical
Item | Descriptions |
|---|---|
Dimension (L×W×H) | 310mm x 183mm x 45mm |
Color | Black |
Weight | 2.6kg |
Brand | DIGISOL |
