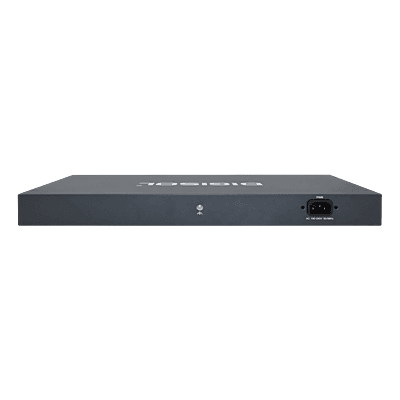

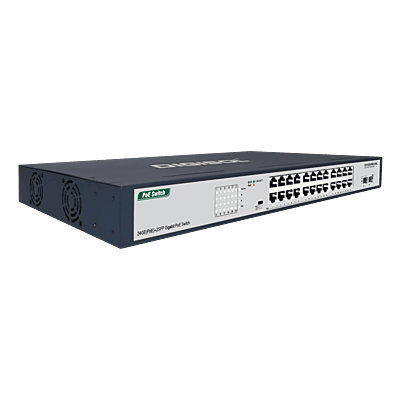

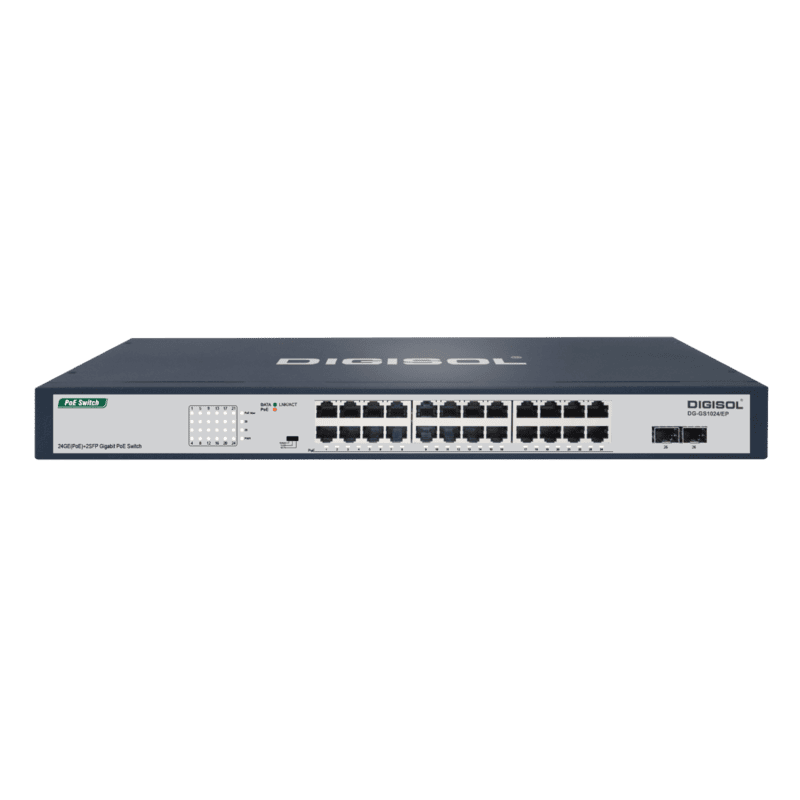

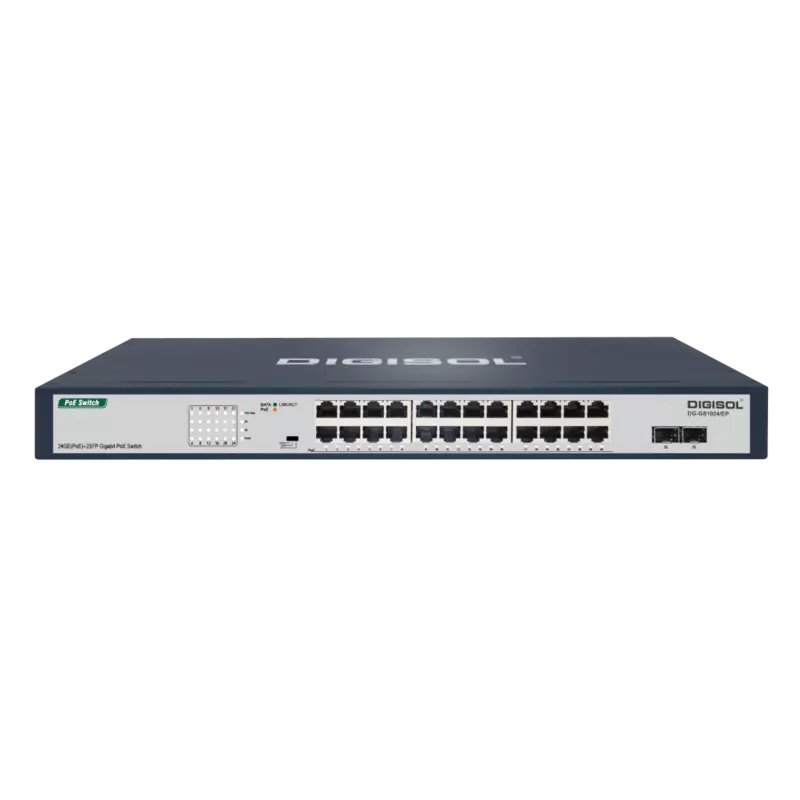

DIGISOL 24 Port PoE Gigabit Unmanaged Switch with 2 SFP Uplinks – DG-GS1024/EP
Key Features
24x1G PoE ports + 2x1G SFP uplink ports
Supports IEEE802.3af/at on PoE ports
All ports support MDI/MDIX
PoE Power: 250W
Plug and play installation
Supports VLAN and CCTV functions
Energy efficient - IEEE802.3az
Port power priority for continuous power supply
4KV lightning protection
Fanless
Supports PD Alive function
Technical Specifications
Category | Item | Description |
|---|---|---|
Technical Specifications | Model | DG-GS1024/EP |
Port | 24x10/100/1000Mbps RJ45 Ports, 2x1000Mbps SFP Slots | |
PoE Standard | IEEE802.3af/at | |
PoE Port | Port 1~24 | |
PSE Power on RJ-45 | Mode A 1/2(+), 3/6(-) | |
PoE Port Output | 30W Max | |
PoE Power Budget | 250W | |
Power Supply | 280W | |
Key Function | CCTV & VLAN | |
Forwarding Mode | Storage-and-Forward | |
Switching Capacity | 52Gbps | |
MAC Address Table | 8K, Auto-learning, Auto-aging | |
Jumbo Frames | 9216Byte | |
Packet Buffer | 4.1Mbit | |
Forwarding Rate | 38.69Mpps | |
Input Power Supply | AC 100-240V 50/60Hz | |
HARDWARE FEATURES | Operation Temperature | 0°C ~ 40°C |
Storage Temperature | -40°C ~ 70°C | |
Operation Humidity | 10% ~ 90% RH non-condensing | |
Storage Humidity | 5% ~ 90% RH non-condensing | |
Dimensions (L*W*H) | 440 * 207 * 44mm | |
Fan Qty. | 2 | |
Weight | < 5Kg | |
LED Indicator | PWR, LNK/ACT, PoE | |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (≤100m) | |
Surge Protection | Common mode 4KV, differential mode 2KV | |
MTBF | > 50000 hours | |
Electrostatic Standard | Contact 6KV, air 8KV | |
Green Energy Saving | Support IEEE 802.3az |
