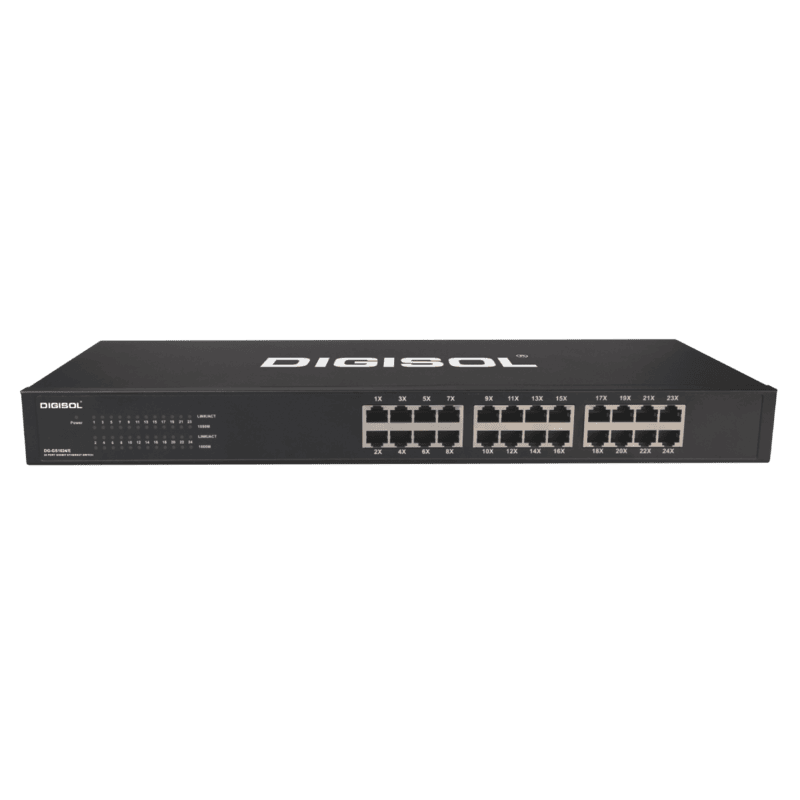

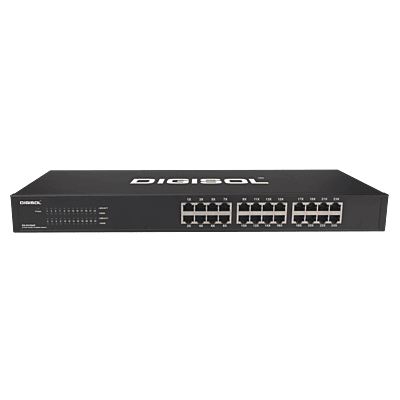

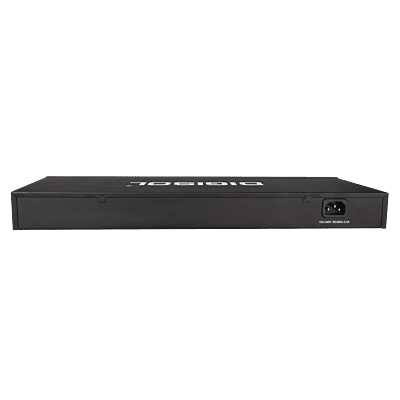

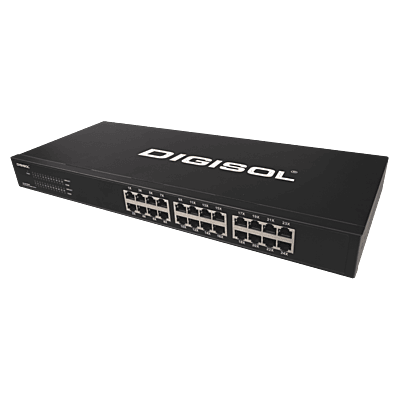

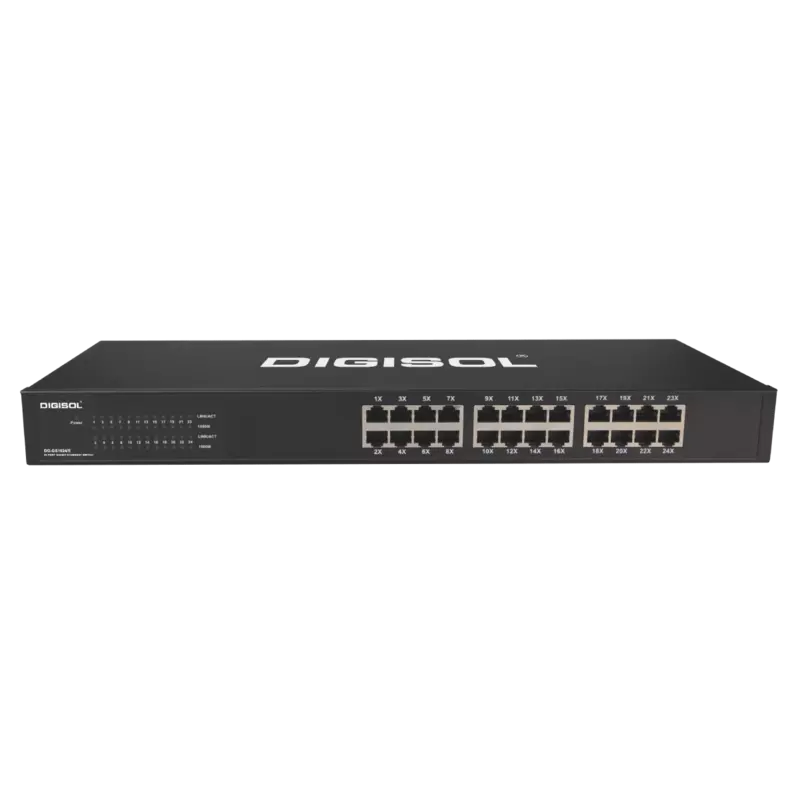

DIGISOL 24 Port Gigabit Ethernet Unmanaged Switch – DG-GS1024/E
Key Features
24 x 10/100/1000Mbps RJ-45 Nway ports
Supports Auto-Negotiation & Non-Blocking Wire Speed
Supports High-Speed Networking and Jumbo Frames
Supports Store and Forward Architecture
Supports Auto MDI/MDI-X Crossover
Internal Universal Power Supply
19'' rack-mount size
Energy Efficient
Fan-less Design
IEEE802.3x Full-duplex flow control
IEEE/ANSI 802.3 Nway auto-negotiation
Plug and Play installation
Switching Capacity: 48Gbps Backplane
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports | Number and Type | 24 x 10/100/1000 Mbps auto-sensing UTP RJ-45 ports |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T Ethernet |
Fast Ethernet | IEEE 802.3u 100BASE-TX Fast Ethernet | |
Gigabit Ethernet | IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
Energy Efficient Ethernet | IEEE 802.3az Energy Efficient Ethernet | |
Flow Control | IEEE 802.3x Full-duplex flow control | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 5 (100 m) |
100BASE-TX | UTP Cat. 5, 5e (100 m) | |
1000BASE-T | UTP Cat. 5e, 6 (100m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Gigabit Ethernet | 2000 Mbps (Full-duplex) | |
Performance Specifications | Forwarding Mode | Store-and-forward |
Buffer Memory | 4.1 Mbit SRAM Packet Buffer | |
MAC Address Database | 8K L2 MAC table with 4-way hashing algorithm | |
Jumbo Frames | 9KB | |
Switching Capacity |
| 48Gbps |
Power Consumption |
| 18 Watts |
Status LEDs |
| Power, Link & activity indicators for each port |
Environmental Specifications | Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -40°C ~ 70°C | |
Operating Humidity | 10%~90% RH (non-condensing) | |
Storage Humidity | 5 to 90 % RH (non-condensing) | |
Power Supply |
| Internal (100~240v, 50-60hz AC) |
Physical Specifications | Dimensions (l x w x h) | 440 x 180 x 44 mm |
Minimum System Requirements |
| Network card for each PC or Server |
| Network cables min. Cat5e for 1000 Mbps | |
Warranty |
| DIGICARE 3 Years Warranty |
