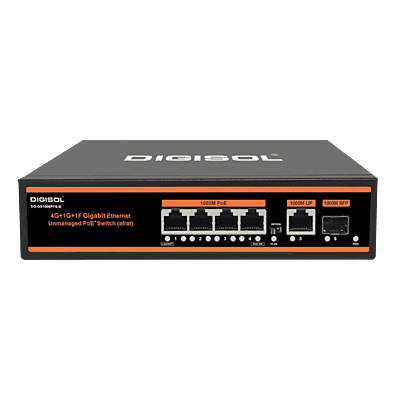

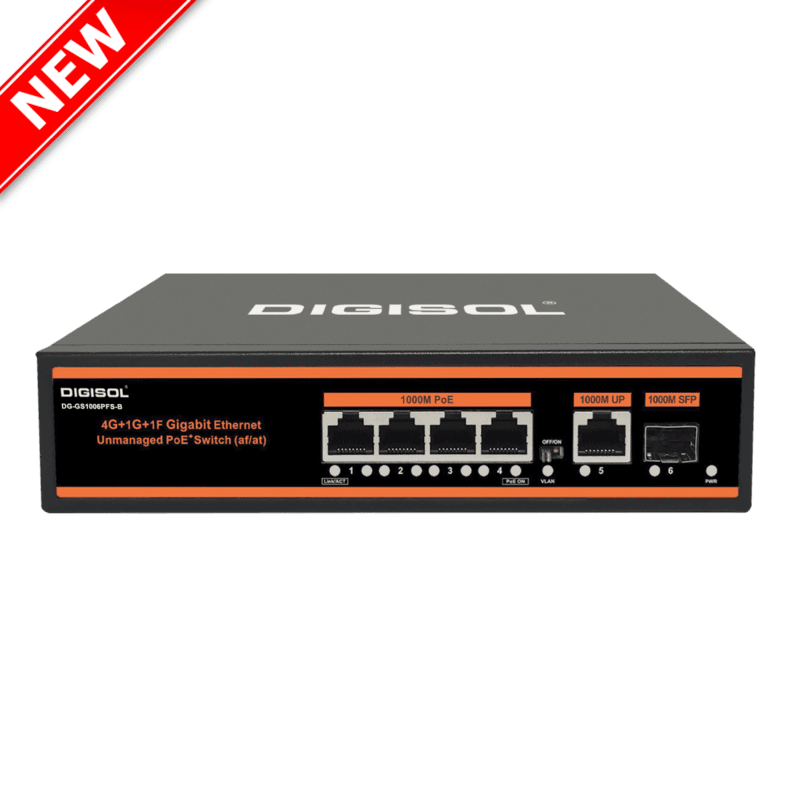

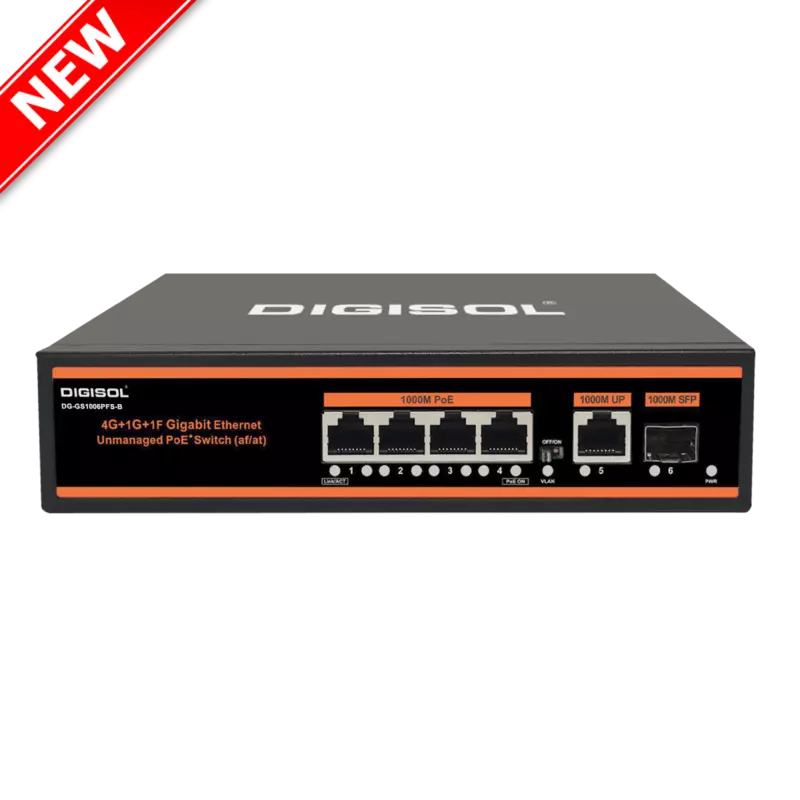

DIGISOL 4 Port PoE Gigabit Ethernet Unmanaged Switch with 2 1G Uplink Ports – DG-GS1006PFS-B
Key Features
4 PoE Gigabit ports + 1 10/100/1000 Base-T uplink + 1 Gigabit SFP uplink port
Support PoE power up to 15.4W (IEEE802.3af) / 30W (IEEE802.3at) for PoE ports
All ports support MDI/MDIX
PoE: 78W
Plug and play installation
Forwarding Mode: Store-And-Forward
Switching capacity: 12Gbps Full duplex
Built-in AC Power Supply
Support 6KV lightning protection
Fanless for quiet functioning with natural cooling
Small and compact design, suitable for desktop or wall-mounting
Supports distance of 250m at 10 Mbps
Technical Specifications
Category | Item | Description | |
|---|---|---|---|
Ports Configuration | Network Ports | 6 | |
PoE Port | 4 x 1000Mbps. Max. 30W Output of Single PoE Port | ||
Indicators | Power, VLAN, Port 1-6 (Link, Powering, Data Transmitting) | ||
Standard | Network Protocol | ||
Performance | Switching Capacity | 12Gbps Full duplex | |
Packet Forwarding Rate | 14.88Mpps/port | ||
Forwarding Mode | Store-and-forward | ||
MAC Address Table | 2K | ||
VLAN Mode | Supports VLAN Mode | ||
Power Over Ethernet | PoE Standard | IEEE802.3af, IEEE802.3at | |
PoE Power Supply | 1/2/4/5(+), 3/6/7/8(-) | ||
Transmission Distance | 0~250m/10Mbps, 0~100m/1000Mbps | ||
PoE Feature | All ports support MDI/MDIX | ||
General | Power Source | Built-in Power Supply | |
Input | 110-240V AC, 50/60Hz | ||
PoE Power Budget | 78W | ||
Operating Temperature | -0°C-55°C | ||
Humidity | 20%-95%, non-condensing | ||
Storage Temperature | -20°C-70°C | ||
Weight | 1Kg |
