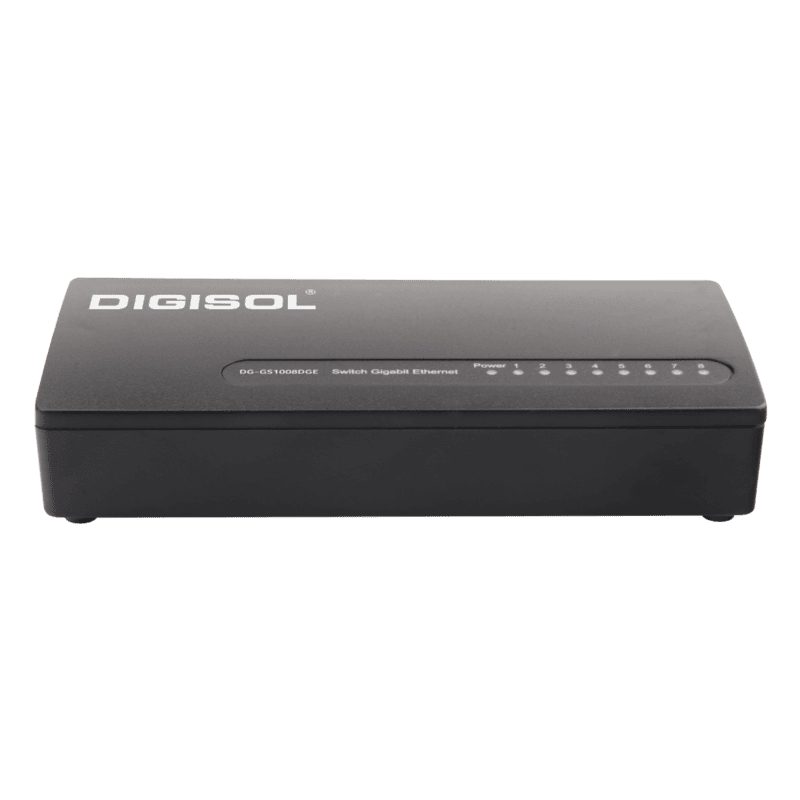

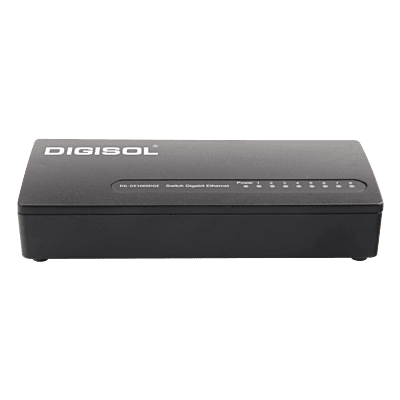

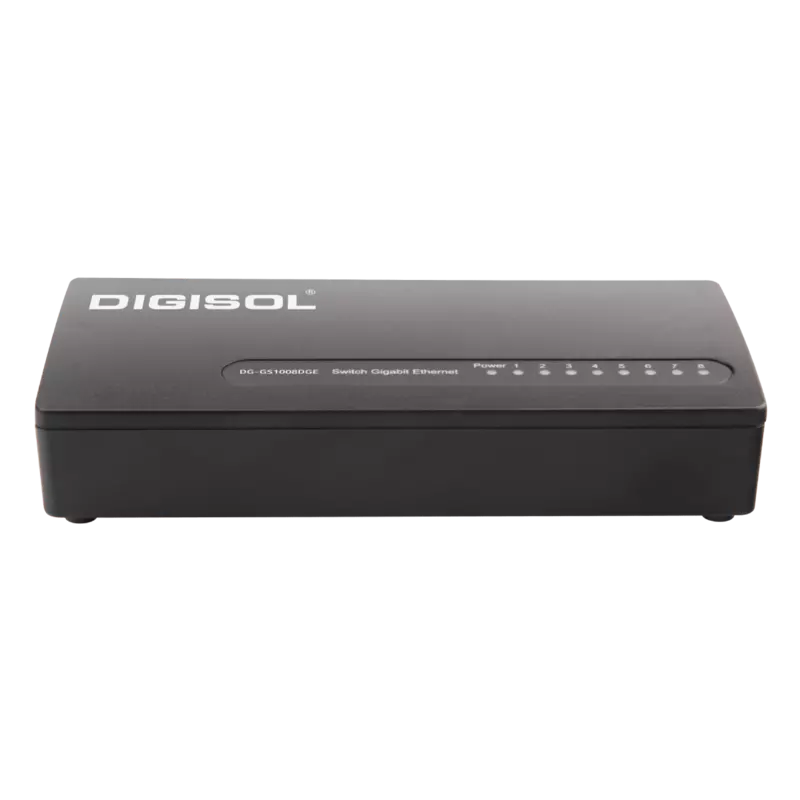

DIGISOL 8 Port 10/100/1000Mbps Gigabit Ethernet Desktop Unmanaged Switch
Key Features
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
8 Auto-Negotiation, Auto-MDI/MDIX ports
Energy-conserving design, save up to 75% of the power
Non-blocking switching architecture
Enables full wire-speed packets forwarding and filtering
Supports MAC address auto-learning and auto-aging
Fanless design ensures quiet operation without noise
Plug and Play design simplifies installation
Technical Specifications
Category | Item | Description |
|---|---|---|
General | Model | DG-GS1008DGE |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x | |
Protocol | CSMA/CD | |
Data Rate | Ethernet: 10Mbps (Half Duplex)/20Mbps (Full Duplex) | |
Switching Features | Transmission Method | Store-and-Forward |
MAC Address | Auto-learning and Auto-aging | |
Bandwidth | 16Gbps Backplane Bandwidth, Forwarding Rate: 11.90Mpps | |
Hardware | Interfaces | 8 x 10/100/1000Base-T Port, 1 x Power Connector |
LED Indicators | LAN1~LAN8, Power | |
Power Supply | Input: AC 100-240V, 50/60Hz, Output: DC 5V 1A | |
MAC Address Table | 8K entries per device | |
Environment | Operating Temperature | 0°C~40°C (32°F~104°F) |
Storage Temperature | -40°C~70°C (-40°F~158°F) | |
Operating Humidity | 10%~90%, Non-condensing | |
Storage Humidity | 5%~90%, Non-condensing |
