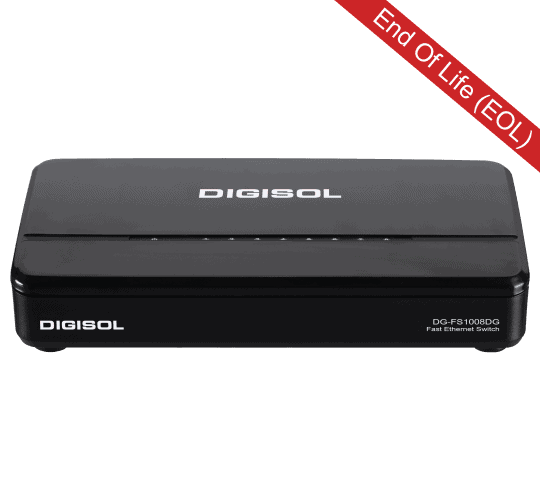

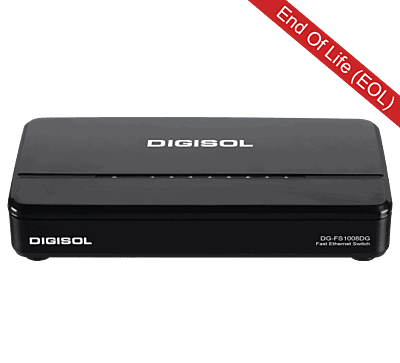

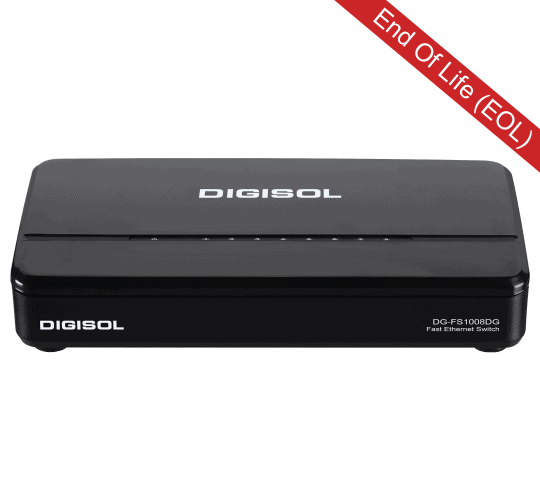

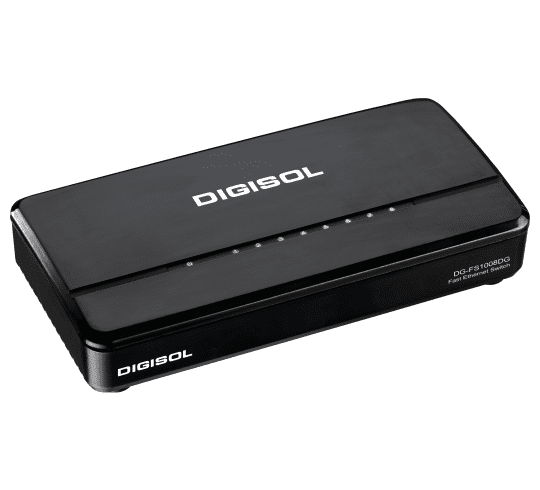

Digisol 8 Port Fast Ethernet Unmanaged Desktop Switch-DG-FS1008 (H/W Ver. C1)
Key Features

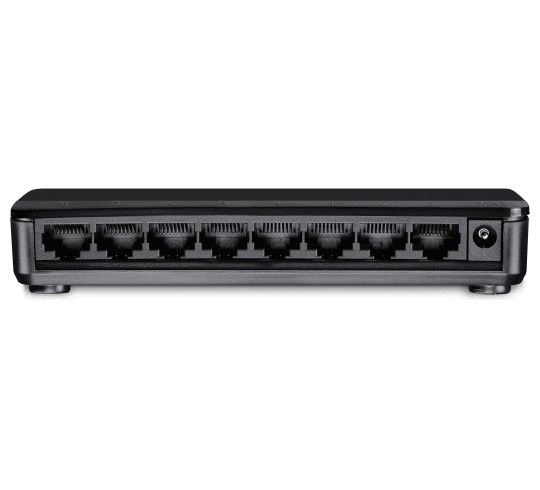

8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ45 ports
Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3az standards
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
Supports MDI/MDI-X auto crossover
Energy Efficient
Plug and Play installation
Switching Capacity: 1.6Gbps Backplane
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports |
| 8 x 10/100 Mbps auto-sensing UTP RJ-45 ports |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T Ethernet |
Fast Ethernet | IEEE 802.3u 100BASE-TX Fast Ethernet | |
Flow Control | IEEE 802.3x Full Duplex Flow Control | |
Energy Efficient | IEEE 802.3az Energy efficient | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 5 (100 m) |
100BASE-TX | UTP Cat. 5, 5e (100 m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Performance Specifications | Forwarding mode | Store-and-forward |
Switching Capacity | 1.6Gbps | |
MAC Address Table | 1K | |
Status LEDs |
| Power, Link & activity indicators for each port |
Environmental Specifications | Operating temperature | 0°C ~ 40°C |
Storage temperature | -20°C ~ 70°C | |
Operating humidity | 10 %~90 % RH (non-condensing) | |
Storage humidity | 5 to 90 % RH (non-condensing) | |
Power Supply |
| Switching Power Adapter: 5V DC, 1A |
Physical Specifications | Dimensions (l x w x h) | 138 x 67.6 x 24.5 mm |
Weight | 126 g | |
Minimum System Requirements |
| Network card for each PC or Server, Network Cables Min. Cat5 for 100 Mbps |
Warranty |
| DIGICARE Limited Lifetime Warranty |
