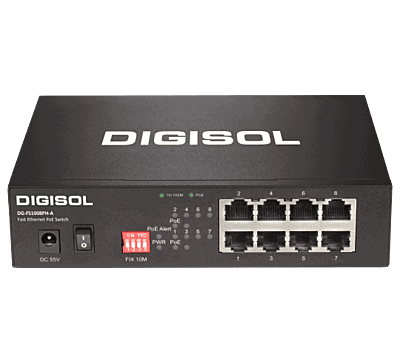

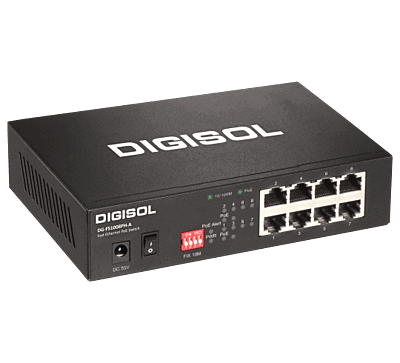

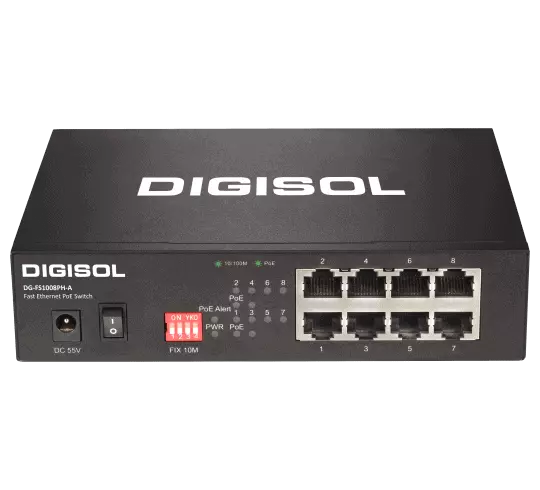

Digisol 8 Port Fast Ethernet Unmanaged Switch with 4 PoE Ports, DG-FS1008PH-A (H/W Ver. A1)
Key Features
8 x 10/100 Mbps RJ-45 Nway ports with 4 PSE/Power over Ethernet Ports
Complies with IEEE802.3, IEEE802.3x, IEEE802.3af & IEEE802.3at standards
Supports 15.4W max per port for IEEE802.3af devices & 30W* max for IEEE802.3at compliant devices
Supports MDI/MDI-X auto crossover
Up to 200Mbps data transfer rates in Full Duplex Mode
High Performance
Plug and Play installation
Support VLAN mode
Link/ACT LED for each port & PoE LED for PoE ports
Supports wire speed packets filtering and forwarding rate
Supports store-and-forward switching infrastructure
Max. PoE Budget 60W
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports | Number and Type | 8 x 10/100 Mbps auto-sensing UTP RJ-45 (including 4 PSE/Power over Ethernet) |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T Ethernet |
Fast Ethernet | IEEE 802.3u 100BASE-TX Fast Ethernet | |
Flow Control | IEEE 802.3x Full-duplex Flow Control | |
Auto-negotiation | IEEE/ANSI 802.3 Nway auto-negotiation | |
PoE | IEEE-802.3af/ IEEE-802.3at | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 4, 5 (100 m) |
100BASE-TX | UTP Cat. 5 (100 m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Performance Specifications | Forwarding mode | Store-and-forward |
Backplane | 1.6 Gbps | |
Buffer memory | 56k bytes | |
MAC Address database | 1K | |
PoE Power Budget | 60W | |
Packet Forwarding Rate | 10Base-TX | 14881PPS |
100Base-TX | 148810PPS | |
Status LEDs |
| Power, Link/Act, PoE indicators |
Environmental Specifications | Operating temperature | 0°C~40°C |
Operating humidity | 10 %~90 % RH (non-condensing) | |
Storage temperature | -40°C~70°C | |
Power Rating |
| 55VDC, 1.3A |
Physical Specifications | Dimensions | 165(W) x 118(D) x 39(H) mm |
System Requirements |
| Network card for each PC or Server, Network Cables Min. Cat.5 for 100 Mbps |
Warranty |
| DIGICARE Limited Lifetime Warranty |
