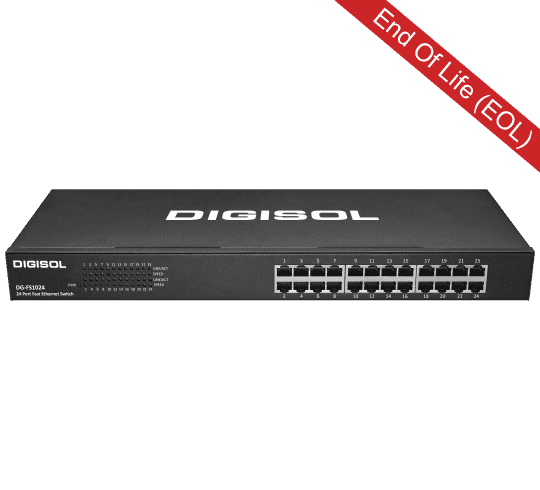

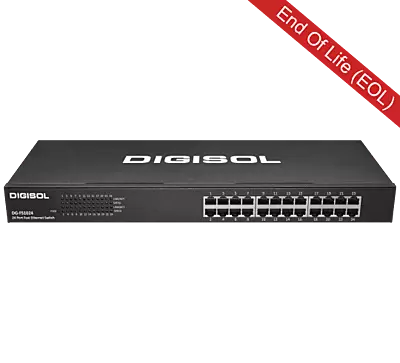

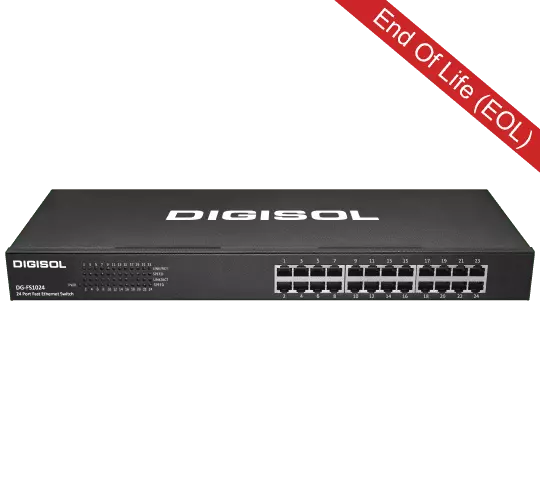

DIGISOL 24 Port Fast Ethernet Unmanaged Switch, DG-FS1024
Key Features
24 x 10/100 Mbps RJ-45 ports
Complies with IEEE802.3, IEEE802.3x Standards
Supports Auto MDI/MDI-X Crossover
Data transfer speed up to 200 Mbps (Full-duplex)
Internal Universal Power Supply
Energy Efficient
Plug and Play installation
Switching Capacity: 4.8Gbps Backplane
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports |
| 24 x 10/100 Mbps auto-sensing UTP RJ-45 ports |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T Ethernet |
Fast Ethernet | IEEE 802.3u 100BASE-TX Fast Ethernet | |
Auto-negotiation | IEEE/ANSI 802.3 Nway auto-negotiation | |
Flow Control | IEEE 802.3x Full-duplex Flow Control | |
Energy Efficiency | IEEE 802.3az Compliant | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 5 (100 m) |
100BASE-TX | UTP Cat. 5, Cat. 5e (100 m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Performance Specifications | Forwarding mode | Store-and-forward |
MAC Address database | 8K | |
Status LEDs |
| Power, Link & activity indicators for each port, Link Speed LED, Status LEDs |
Environmental Specifications | Operating temperature | 0°C~40°C ambient |
Operating humidity | 5 %~95 % (non-condensing) | |
Storage temperature | 0°C~70°C | |
Power Supply |
| Internal (100~240VAC) |
Minimum System Requirements |
| Network card for each PC or Server, Network Cables Min. Cat.5 for 100 Mbps |
Warranty |
| DIGICARE Limited Lifetime Warranty |
General
- TypesUnManaged
- Switching Capacity4.8 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports24
- No. Of RJ45 Ports24
- No. Of Power Supplies Supported1
- Rack MountingYes
