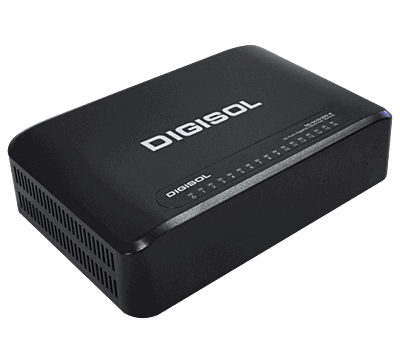

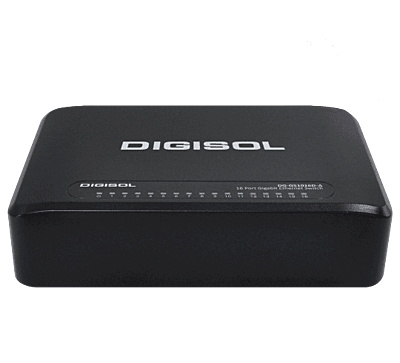

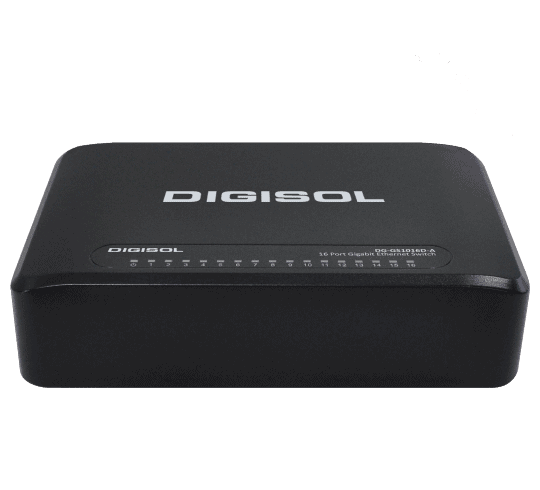

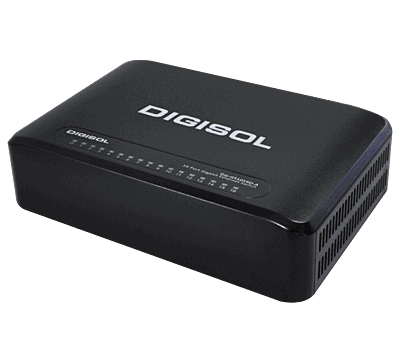

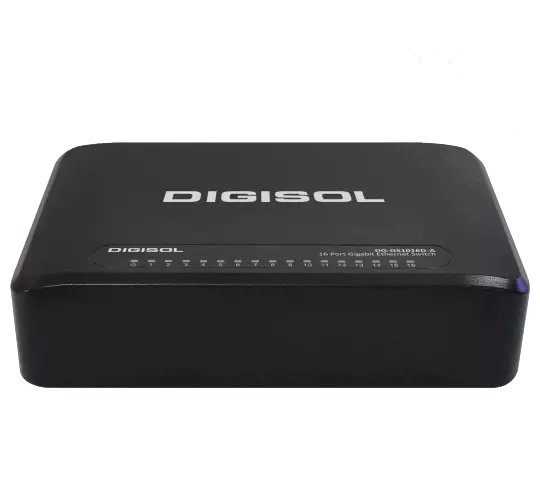

Digisol 16 Port Gigabit Ethernet Unmanaged Desktop Switch with External Power Adapter, DG-GS1016D-A (H/W Ver. A1)
Key Features
16 x 10/100/1000 Mbps RJ-45 ports
Complies with IEEE802.3, IEEE802.3x, IEEE802.3ab Standards
Supports Auto MDI/MDI-X Crossover
Data transfer speed up to 2000Mbps (Full-duplex)
High Performance
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports | Number and Type | 16 x 10/100/1000 Mbps auto-sensing UTP RJ-45 ports |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T |
Fast Ethernet | IEEE 802.3u 100BASE-TX | |
Gigabit Ethernet | IEEE 802.3ab 1000BASE-T | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 4, 5 cable (maximum 100m) |
100BASE-TX | UTP Cat. 5, 5e cable (maximum 100m) | |
1000BASE-T | UTP Cat. 5e, 6 cable (maximum 100m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Gigabit Ethernet | 1000 Mbps (Half-duplex), 2000 Mbps (Full Duplex) | |
Performance Specifications | MAC Address database | 8K |
Buffer memory | 256K byte | |
Bandwidth | 32 Gbps | |
Status LEDs |
| Power, Link & activity indicators for each port |
Environmental Specifications | Operating temperature | 0°C~40°C |
Operating humidity | 10 %~90 % (non-condensing) | |
Storage temperature | -40°C to 70°C | |
Power Supply |
| 12V-1A Power Adapter |
Physical Specifications | Dimensions (W x H x D) | 160 x 41.5 x 107 mm |
Minimum System Requirements |
| Network card for each PC or Server, Network Cables Min. Cat5 for 100 Mbps |
Product Features
Sixteen (16) RJ-45 Ports for 10BaseT, 100BaseTX and 1000BaseT connectivity.
Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards.
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode.
Supports MDI/MDI-X auto crossover for each port.
Link & activity indicators for each port.
Supports Auto-Negotiation.
MAC Address Table: 8K
LED Description
LED | Status | Description |
|---|---|---|
Power | OFF | Switch is powered off. |
ON (Steady Green) | Switch is powered on. | |
Port 1 - Port 16 (Link/Act) | ON (Steady Green) | A valid link is established. |
Blinking | Data packets transmitted/received. |
