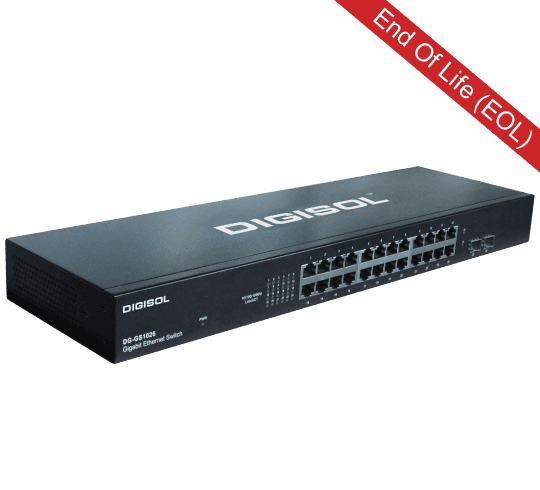

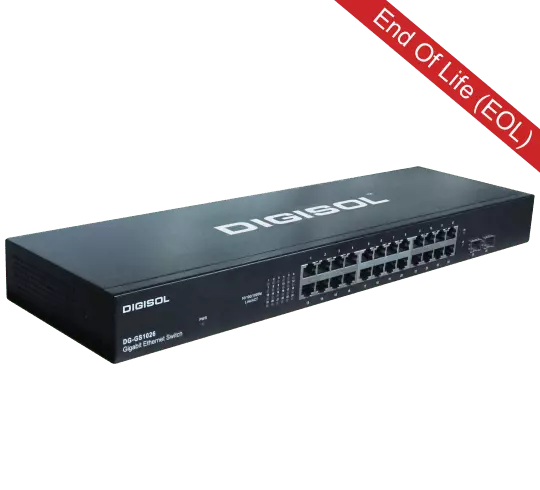

Digisol 24 Port Gigabit Ethernet Unmanaged Switch with 2 SFP slots-DG-GS1026 (H/W Ver. A2)
Key Features
24 x 10/100/1000Mbps RJ-45 Nway ports
Built-In 2 SFP slots
Fan-less Design
Supports Auto-Negotiation & Non-Blocking Wire Speed
Supports High-Speed Networking and Jumbo Frames
Supports Store and Forward Architecture
Supports Auto MDI/MDI-X Crossover
Internal Universal Power Supply
19'' rack-mount size
IEEE802.3x Full-duplex flow control
IEEE/ANSI 802.3 Nway auto-negotiation
Energy Efficient
Plug and Play installation
Switching Capacity: 52Gbps Backplane
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports | RJ-45 Ports | 24 x 10/100/1000 Mbps auto-sensing UTP RJ-45 ports |
SFP Ports | 2 x SFP ports | |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T Ethernet |
Fast Ethernet | IEEE 802.3u 100BASE-TX Fast Ethernet | |
Gigabit Ethernet | IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
SFP | IEEE 802.3z 1000BASE SX/LX | |
Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet | |
Flow Control | IEEE 802.3x Fill-duplex flow control | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 5 (100 m) |
100BASE-TX | UTP Cat. 5, 5e (100 m) | |
1000BASE-T | UTP Cat. 5, 5e, 6 (100 m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Gigabit Ethernet | 2000 Mbps (Full-duplex) | |
Performance Specifications | Forwarding mode | Store-and-forward |
Buffer memory | 448 KB | |
MAC Address database | 16K | |
Jumbo Frames | 9KB | |
Switching fabric | 52Gbps | |
Power Consumption |
| 16 Watts Max. |
Status LEDs |
| Power, Link & activity indicators for each port |
Environmental Specifications | Operating temperature | 0°C ~ 40°C |
Storage temperature | -40°C ~ 70°C | |
Operating humidity | 0 %~90 % RH (non-condensing) | |
Storage humidity | 5 to 90 % RH (non-condensing) | |
Power Supply |
| Internal (100~240VAC) |
Physical Specifications | Dimensions (l x w x h) | 441 x 131 x 44 mm |
Weight | 1.95 kg | |
Minimum System Requirements |
| Network card for each PC or Server, Network Cables Min. Cat.5 for 1000 Mbps |
Warranty |
| DIGICARE Lifetime Warranty |
General
- TypesUnManaged
- Switching Capacity52 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports24
- No. Of SFP Ports2
- No. Of RJ45 Ports24
- No. Of Power Supplies Supported1
- Rack MountingYes
