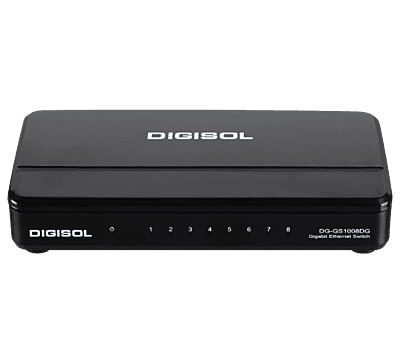

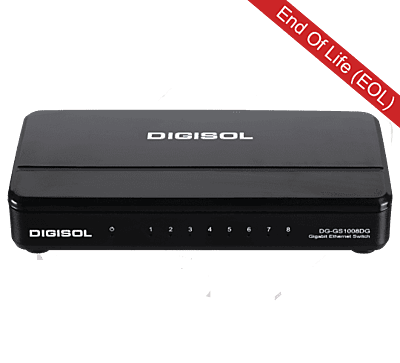

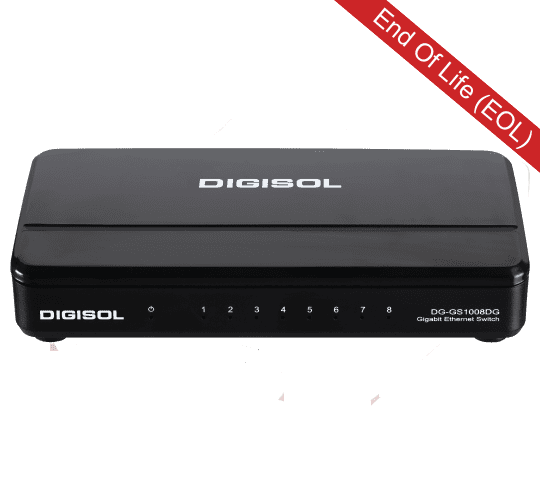

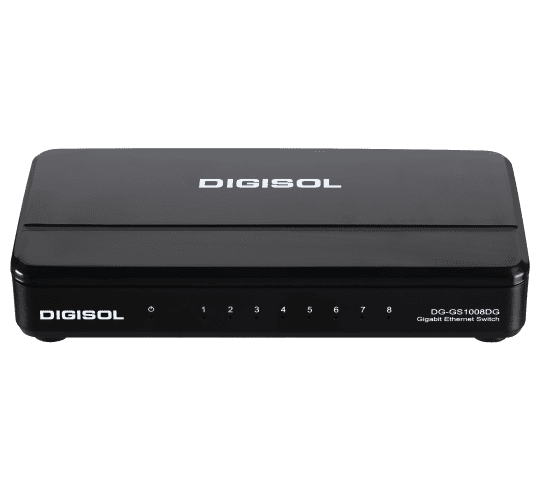

Digisol 8 Port Gigabit Ethernet Unmanaged Desktop Switch, DG-GS1008DG (H/W Ver. C1)
Key Features
Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
Supports 8K-entry MAC address table
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
Fanless design ensures noise-free operation
Desktop design
Plug and Play design simplifies installation
Switching Capacity: 16Gbps Backplane
Technical Specifications
Category | Item | Description |
|---|---|---|
Standards | Ethernet | IEEE802.3 10Base-T |
Fast Ethernet | IEEE802.3u 100Base-TX | |
Gigabit Ethernet | IEEE802.3ab | |
Network Media (Cable) | 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) |
100BASE-T | UTP category 5, 5e cable (maximum 100m) | |
1000BASE-T | UTP category 5e, 6 cable (maximum 100m) | |
Number of Ports |
| 8 x 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX |
LED indicators |
| Link/Act, Power |
Transfer Method |
| Store-and-Forward |
Switching Capacity |
| 16Gbps |
MAC Address table |
| 8K |
Dimensions (L × W × H) |
| 138 x 67.6 x 24.5 mm |
Power Adapter |
| 5V, 1A |
Environment | Operating Temperature | 0 ~ 40 Degree C |
Storage Temperature | -10 ~ 70 Degree C | |
Operating Humidity | 10%~90% non-condensing | |
Storage humidity | 5%~90% non-condensing |
General
- TypesUnManaged
- Switching Capacity16 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports8
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
- Rack MountingYes
