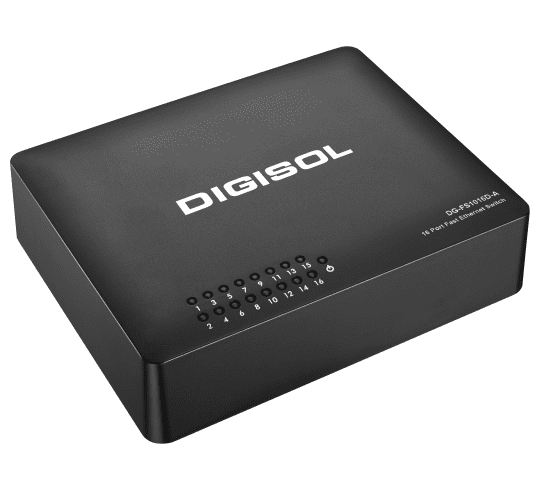

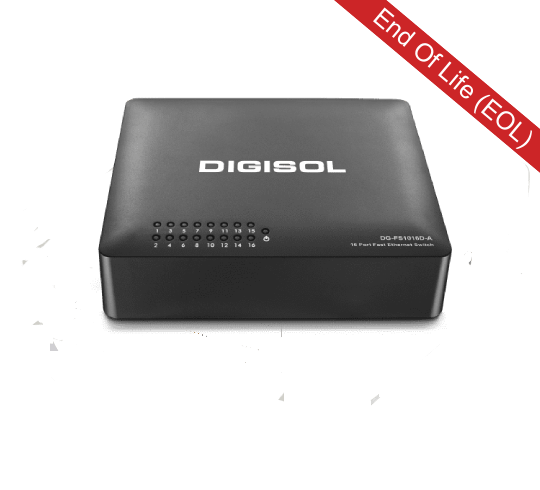

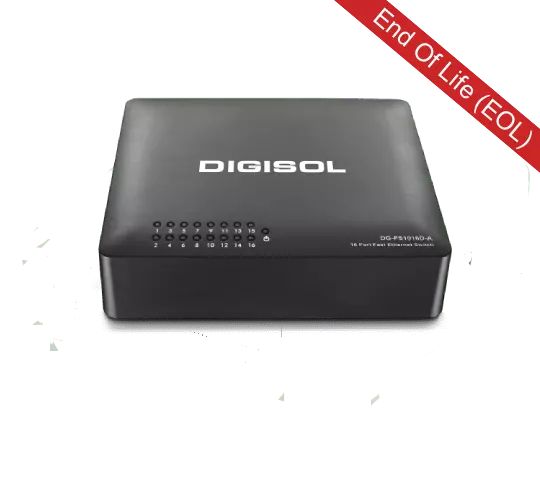

Digisol 16 Port Fast Ethernet Unmanaged Desktop Switch with External Power Adapter, DG-FS1016D-A (H/W Ver. B1)
Key Features

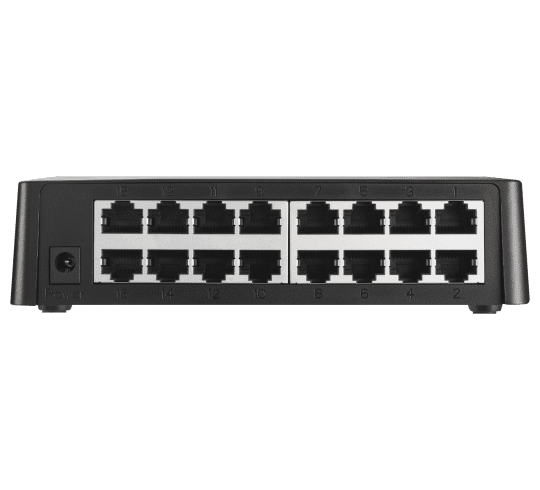

16 x 10/100 Mbps RJ-45 ports
Complies with IEEE802.3, IEEE802.3x Standards
Supports Auto MDI/MDI-X Crossover
Data transfer speed up to 200Mbps (Full-duplex)
Plug and Play installation
Switching Capacity: 3.2Gbps Backplane
Technical Specifications
Category | Item | Description |
|---|---|---|
Network Ports | Number and Type | 16 x 10/100 Mbps auto-sensing UTP RJ-45 ports |
Standard Compliance | Ethernet | IEEE 802.3 10BASE-T Ethernet |
Fast Ethernet | IEEE 802.3u 100BASE-TX Fast Ethernet | |
Auto-negotiation | IEEE/ANSI 802.3 Nway auto-negotiation | |
Flow Control | IEEE 802.3x Full-duplex Flow Control | |
Protocol |
| CSMA/CD |
Network Cables | 10BASE-T | UTP Cat. 3, 5 (100 m) |
100BASE-TX | UTP Cat. 5, Cat. 5e (100 m) | |
Data Transfer Rates | Ethernet | 10 Mbps (Half-duplex), 20 Mbps (Full Duplex) |
Fast Ethernet | 100 Mbps (Half-duplex), 200 Mbps (Full Duplex) | |
Performance Specifications | Forwarding mode | Store-and-forward |
Switching Capacity | 3.2Gbps | |
MAC Address database | 4K | |
Status LEDs |
| Power, Link & activity indicators for each port |
Environmental Specifications | Operating temperature | 0°C~40°C |
Operating humidity | 10 %~90 % (non-condensing) | |
Storage temperature | -40°C to 70°C | |
Power Supply | Input | 100-240V - 50/60Hz |
Output | DC 12V-0.5A | |
Physical Specifications | Dimensions (l x w x h) | 155 x 125 x 38 mm |
Minimum System Requirements |
| Network card for each PC or Server, Network Cables Min. Cat5 for 100 Mbps |
Warranty |
| DIGICARE Limited Lifetime Warranty |
Product Features
Complies with the IEEE802.3 10Base-T Ethernet and IEEE802.3u 100Base-TX Fast Ethernet standard.
16 10/100Mbps Auto-Negotiation Ports.
Supports Auto MDI/MDI-X function.
Automatic Source MAC Address Learning and Ageing.
IEEE802.3x flow control for Full-duplex operation. Back Pressure function for Half-duplex operation.
Supports MAC address auto-learning and auto aging.
LED indicators for simple diagnostics and management.
Non blocking switching architecture enables full wire-speed packets forwarding and filtering.
Fanless design ensures quiet operation.
Plug-and-play design simplifies installation.
General
- TypesUnManaged
- Switching Capacity3.2 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports16
- No. Of RJ45 Ports16
- No. Of Power Supplies Supported1
- Rack MountingYes
