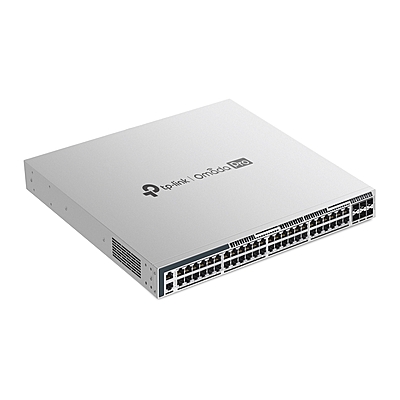

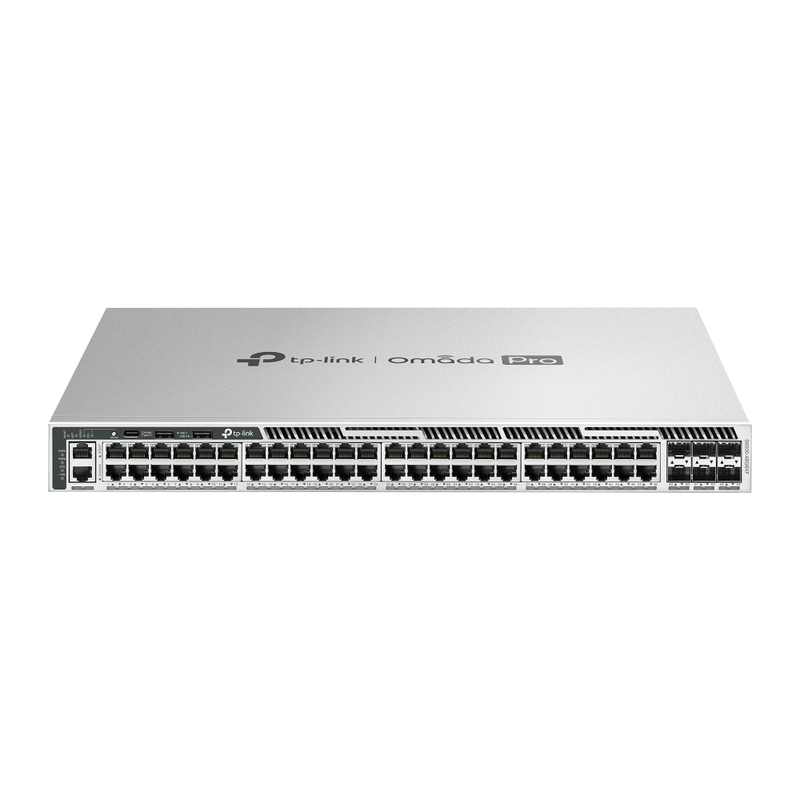

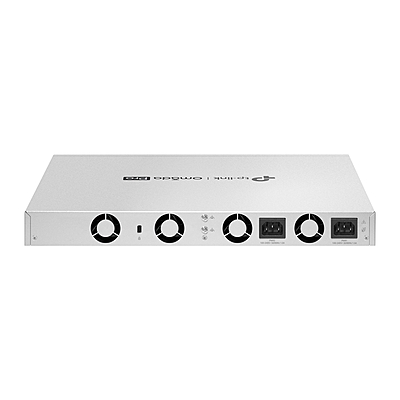

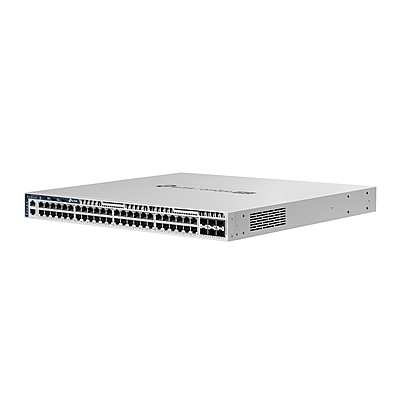

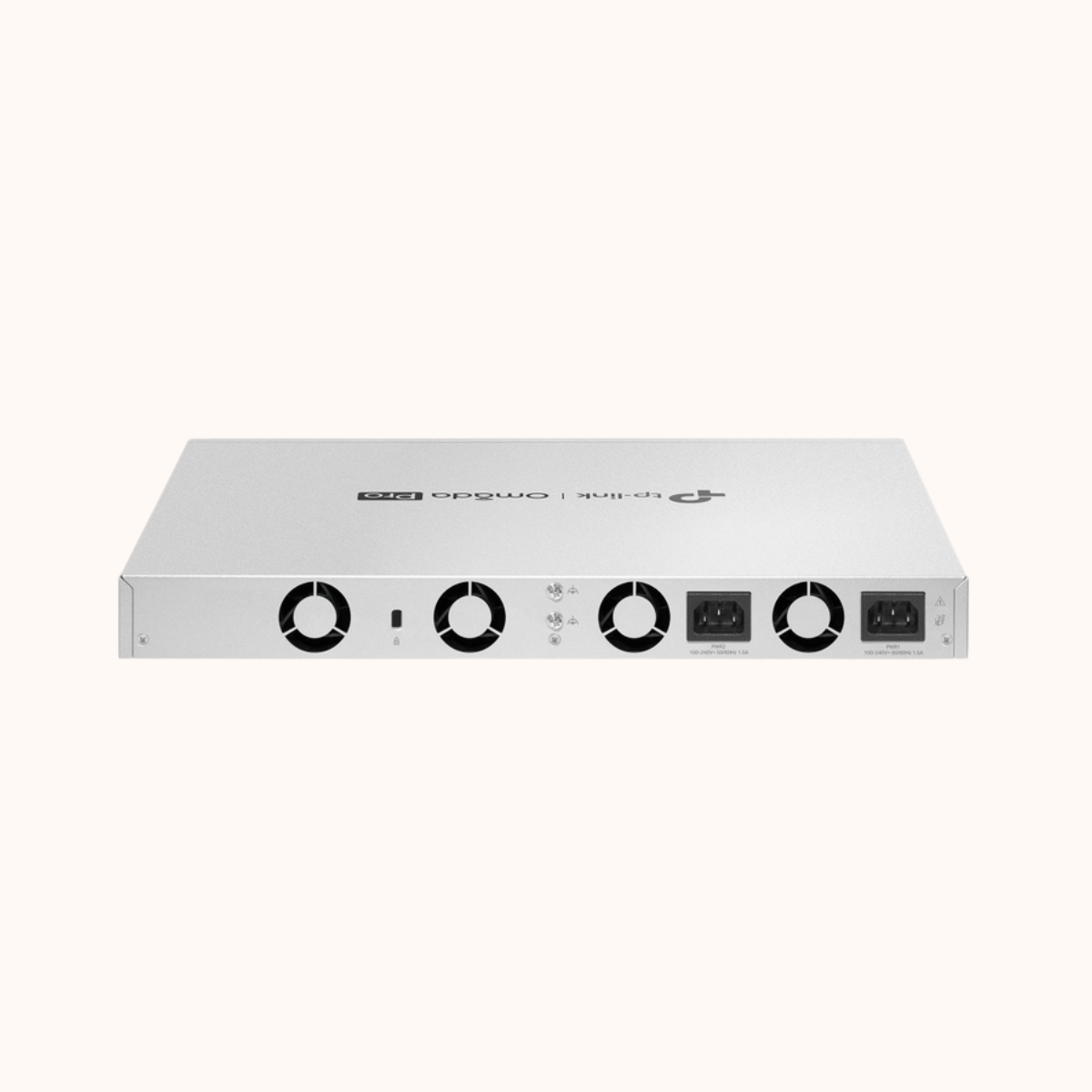

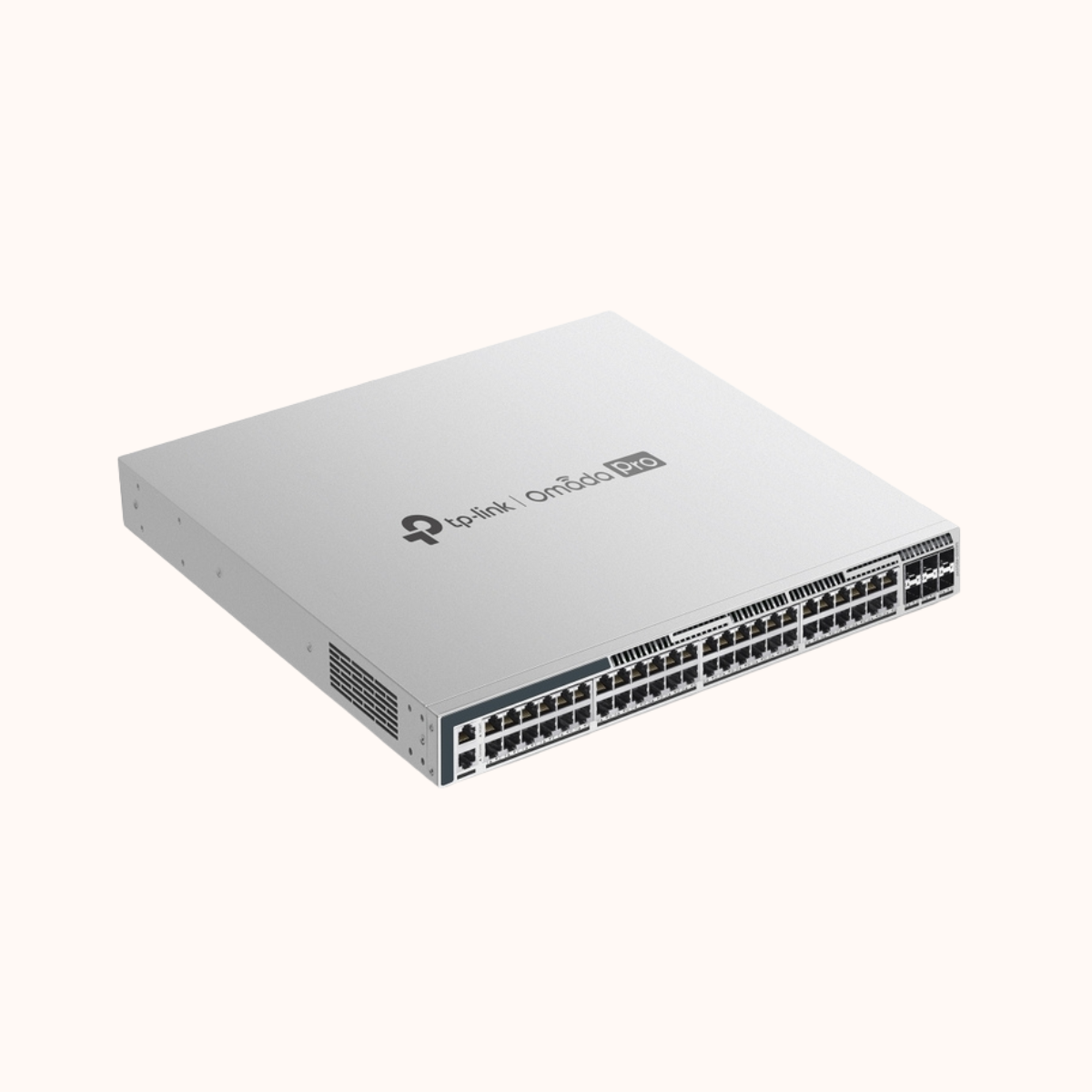

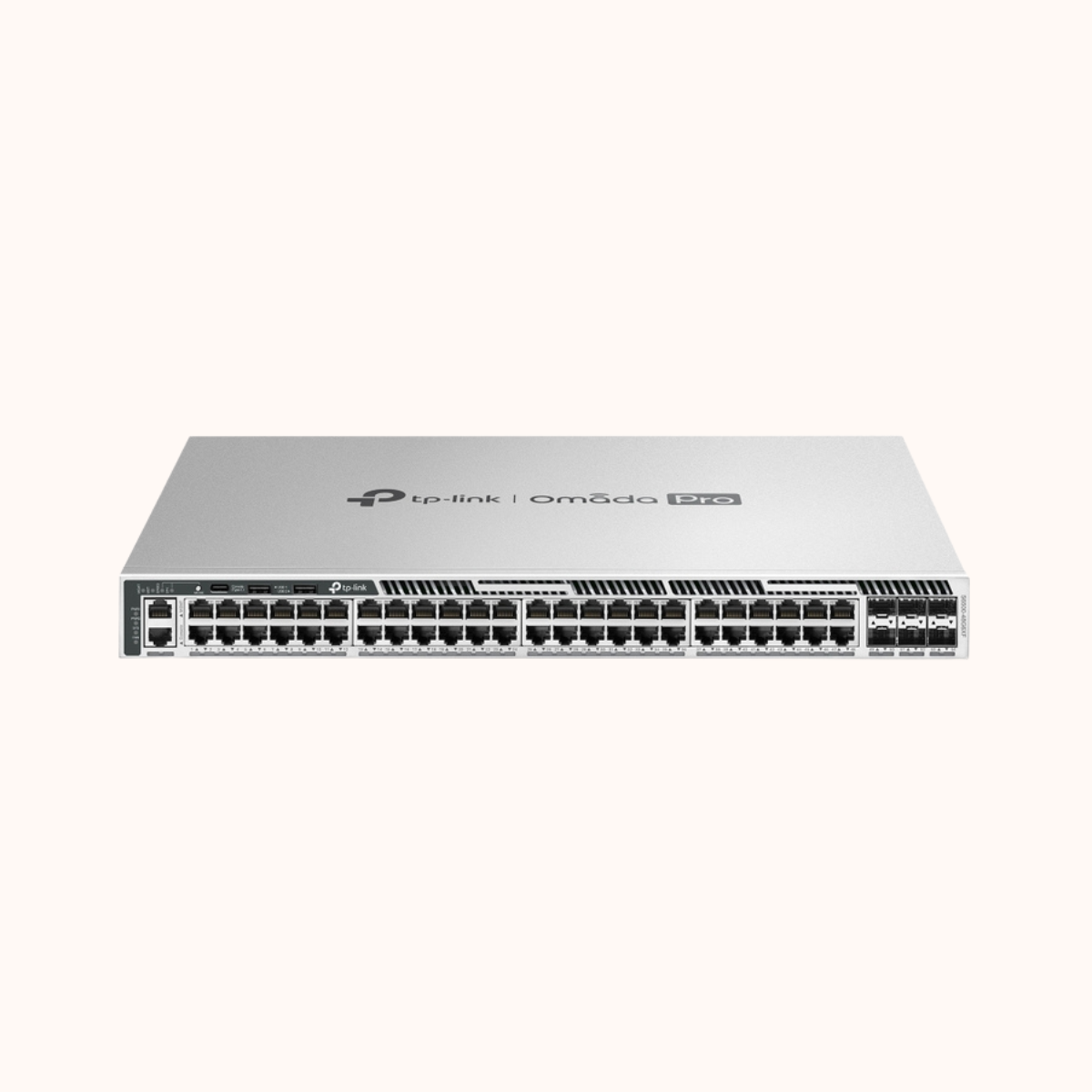

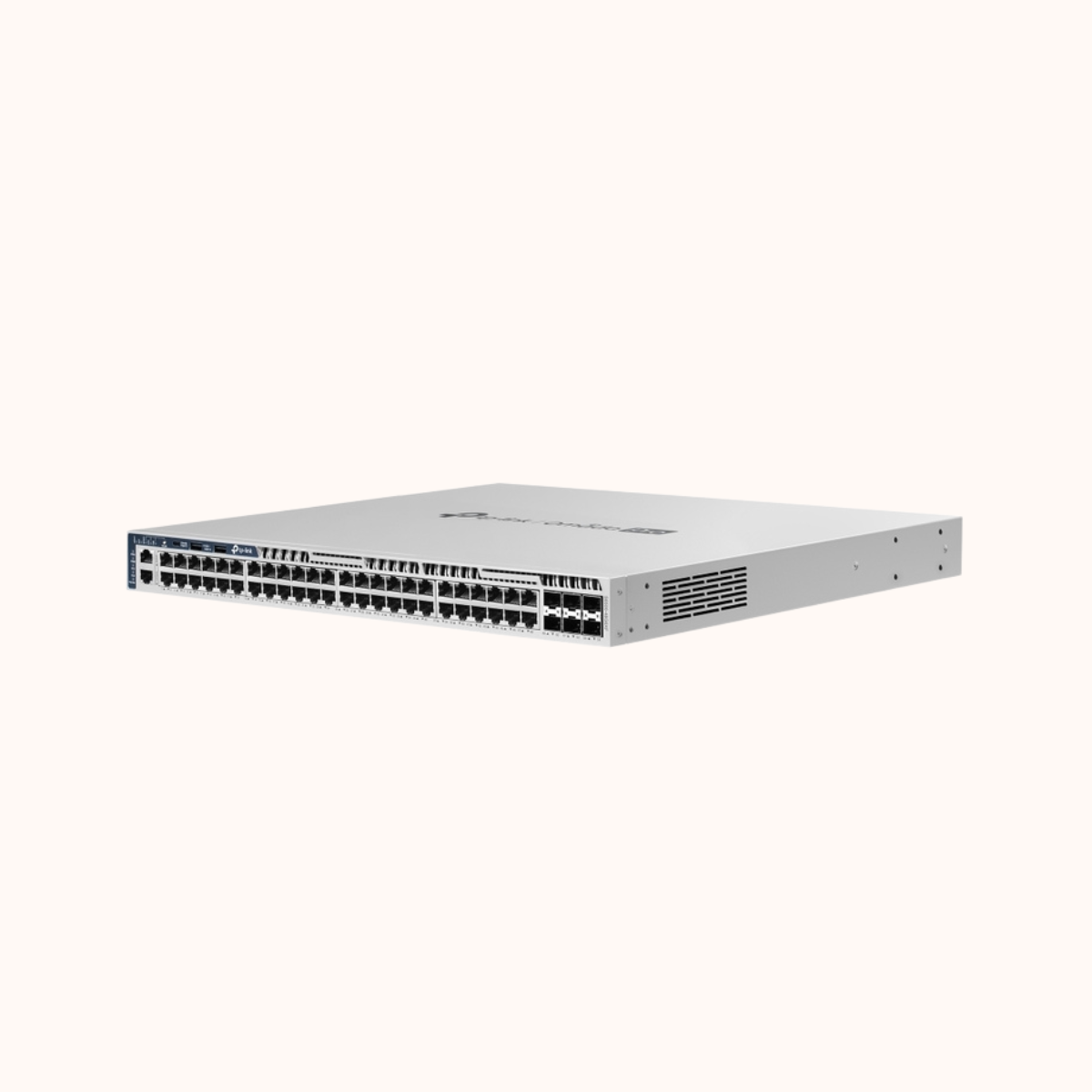

TP-Link Omada Pro 48-Port Gigabit L3 Managed Switch 6 10G Slots-S6500-48G6XF
Feature | Details |
|---|---|
Ports | 48× Gigabit RJ45 & 6× 10 Gbps SFP+ slots |
L3 Features | Supports OSPF, BGP, IS-IS, VRRP, PIM, ECMP, PBR |
Security | MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X |
High Availability | Dual internal power supplies, VRRP, ERPS, BFD |
Cloud Management | Centralized via web or Omada app |
Category | Main Key Points |
|---|---|
Hardware Features | 48× 10/100/1000 Mbps RJ45 Ports, 6× 1/10Gbps SFP+ Slots, 2× USB 2.0, RJ45 Console/Management, USB Type-C |
Power Supply | Two Internal Fixed Power Supply Modules (100–240V AC) |
Cooling | 4 Internal Fixed Fans |
Performance | 216 Gbps Switching Capacity, 160.7 Mpps Forwarding Rate, 32K MAC Address Table |
Stacking | Up to 12 Units, 10G SFP+ Stacking Ports, 120 Gbps Stack Bandwidth |
QoS Features | 8 Queues, Priority Classifications (802.1p, DSCP), Rate Limiting, Storm Control |
L3 Features | 256 IPv4/IPv6 Interfaces, 1024 Static Routes, 512 Static ARP, VRRP, OSPF, RIP, BGP |
L2 & L2+ Features | Link Aggregation, STP/RSTP, Port Mirroring, Loop Detection, ERPS, IGMP Snooping |
Multicast Features | IGMP Snooping v1–v3, MLD Snooping, Multicast Filtering, MVR |
Advanced Features | Auto Device Discovery, Batch Configuration, Intelligent Monitoring, sFlow, OAM |
VLAN Support | 4K VLAN Groups, 802.1Q Tagged, QinQ (256 entries), Voice VLAN, GVRP, Private VLAN |
Security | IP-MAC-Port Binding, ARP Inspection, DoS Defense, Port Security, Source Guard |
Virtualization | IP Tunnel (IPv6 over IPv4, GRE), Max 100 Tunnel Entries |
Management | Web GUI, CLI (Console/Telnet), SNMPv1/v2c/v3, Omada Pro Controller, Zero-Touch Provisioning |
Cloud Access | Yes, via Omada Pro Controller |
Zero-Touch Provisioning | Yes, via Omada Pro Cloud-Based Controller |
MIB Support | MIB II, RMON, RADIUS MIBs, TP-Link Private MIB |
General
- TypesManaged
- Switching Capacity216 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports48
- No. Of Power Supplies Supported2
- Rack MountingYes
