New

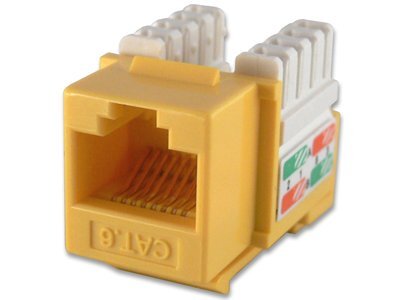

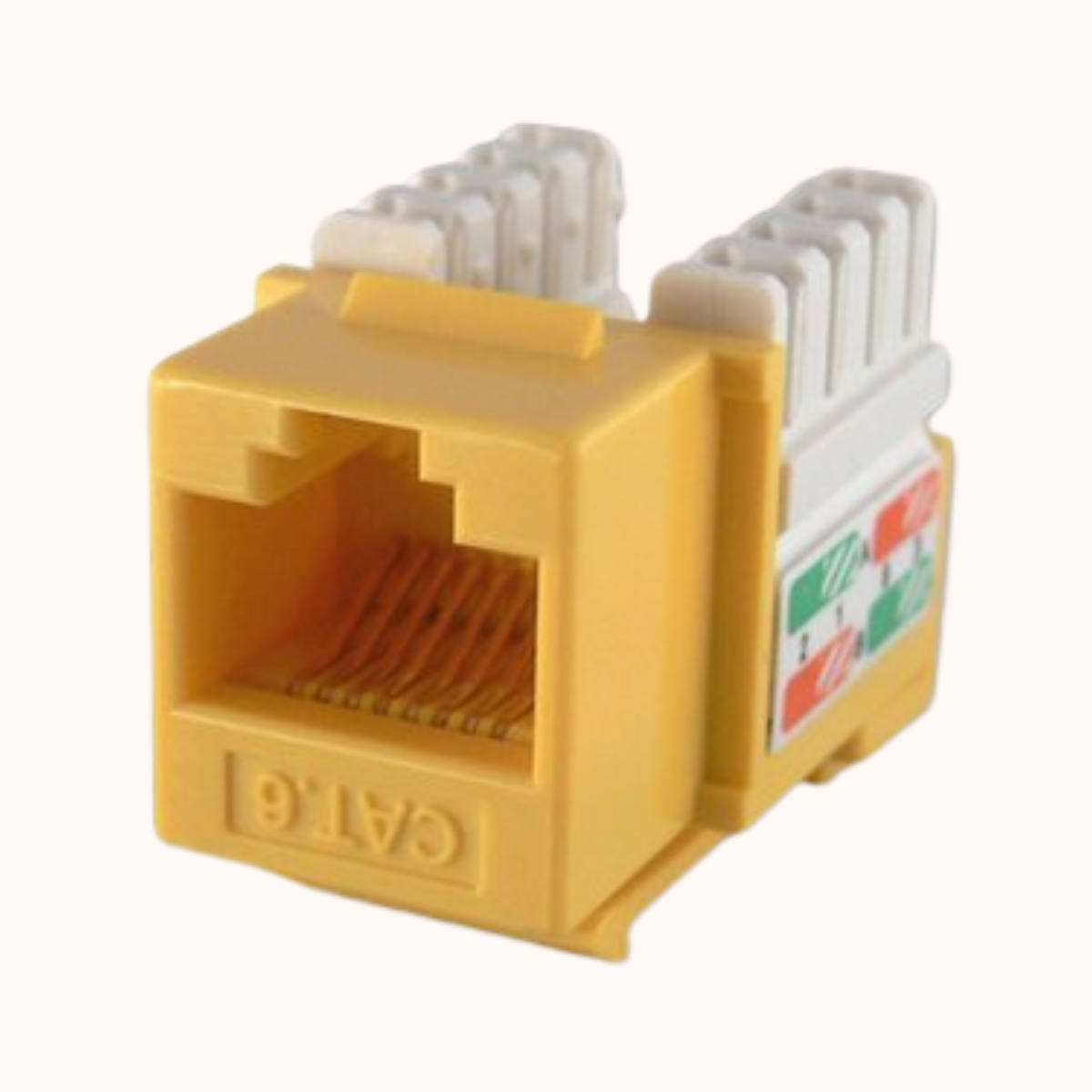

D Link Cat6 Yellow Lane I/O
Rs. 126.00 Rs. 180.00
Out of stock
Tags:
- Brand: D-Link
- Product Type: CAT6 LAN Keystone I/O Jack
- Connector Type: RJ45 (8P8C)
- Color: Yellow
- Compatible Devices: Patch Panels, Wall Plates, Routers, Switches, LAN Networks
Product Details
D-Link Cat6 Yellow LAN I/O Keystone Specifications
| Product Name | D-Link Cat6 LAN Keystone I/O |
| Model Number | NKJ-C6YEL1B21 |
| Brand | D-Link |
| Category | CAT6 UTP Keystone Jack |
| Connector Type | RJ45 (8P8C) |
| Orientation | 180° Punch Down |
| Supported Cable | 22–26 AWG Solid & Stranded Cable |
| Wiring Standard | T568A & T568B Color-Coded |
| Bandwidth | Up to 250 MHz |
| Data Speed | Up to 1 Gbps |
| Contact Material | Phosphor Bronze with Nickel Plating |
| Contact Finish | 50µ Gold Plated |
| Housing Material | High Impact Thermoplastic (UL94V-0) |
| Operating Temperature | -10°C to 60°C |
| Mating Cycles | Minimum 750 Insertions |
| Compatibility | Wall Plates, Patch Panels, Surface Mount Boxes |
| Application | LAN Networking, Structured Cabling, CCTV, IP Cameras |
| Color | Yellow |
