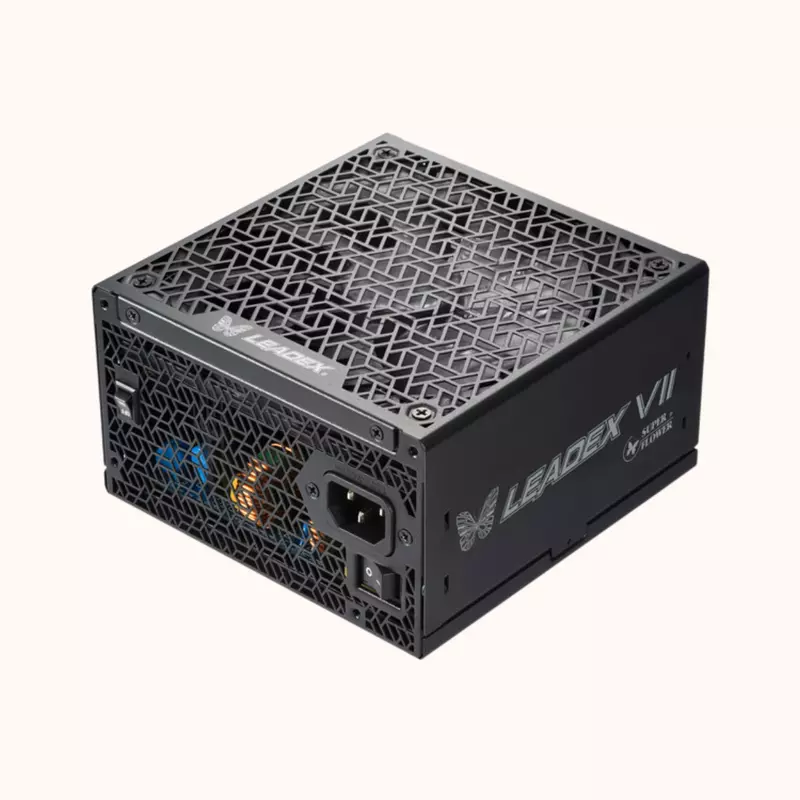

Super Flower Leadex VII GOLD-1000W - SF-1000F14XG
Specification | Details |
|---|---|
Model Number | SF-1000F14XG |
Rated Efficiency | 87% @ 20% load, 90% @ 50% load, 87% @ 100% load (115V Internal Gold) |
Cybernetics Certification | Platinum (115V & 230V) Efficiency |
Intel Design Compliance | Compliant with EPS 2.92 & ATX 3.1 power design guide |
Input Voltage / Frequency | 100V–240V AC |
Cooling Fan | 140mm Fluid Dynamic Bearing (FDB) Fan |
Dimensions (L × W × H) | 150mm × 150mm × 86mm |
Protection Features | OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP |
Thermal Reliability | Passed rigorous 50°C high-temperature testing |
Safety Certifications | cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC |
Feature | Details |
|---|---|

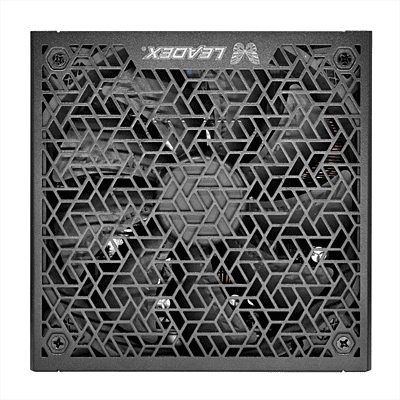

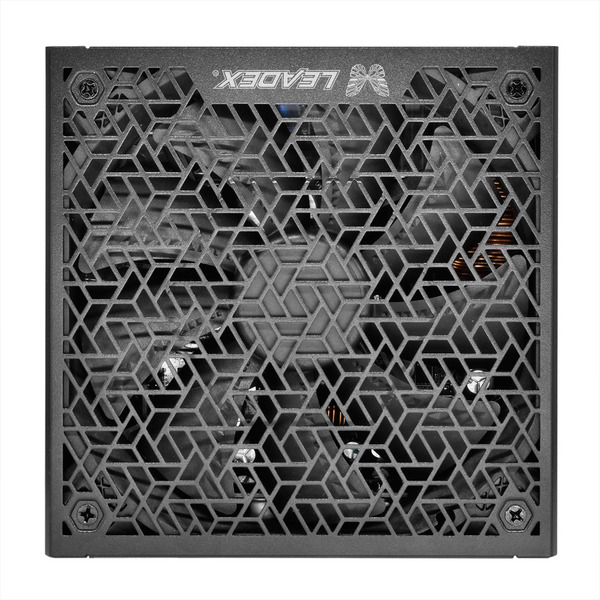

Cooling Fan | 140mm F.D.B Fan with unique 9-blade design for high airflow, stable RPM, and minimal noise (dBA). |
Connector Innovation | Patented Buckle (20+4) Pin Connector (Patent No.: Taiwan M563575; China 7566010). |
Gaming System Stability | Stable output for +12V/+5V/+3.3V rails with improved transient response and low ripple. |
ECO Smart Fan Control | Auto & ECO mode fan control with high efficiency across all rails including 5VSB. |

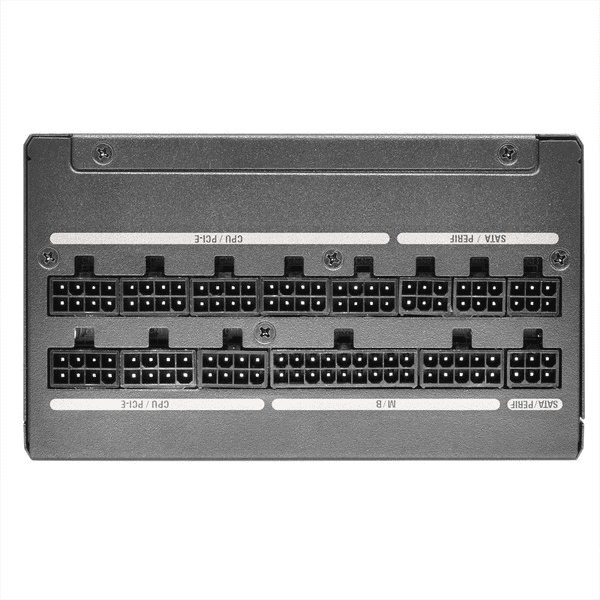

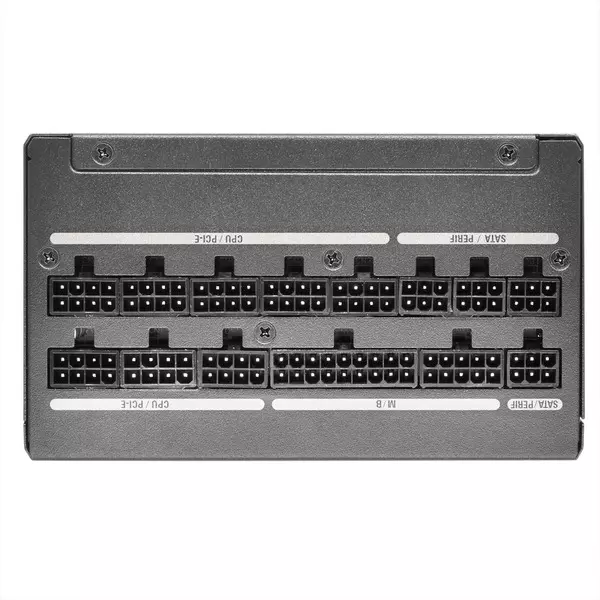

Cable Management | 100% Fully Modular with ultra-flexible ribbon cables for clean and easy installation. |
Power Efficiency | 80 PLUS® Gold Certified – 87% @ 20%, 90% @ 50%, 87% @ 100% load. |
Premium Capacitors | 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel) for long-lasting performance. |
Auto Voltage Detection | Full range 100V–240V AC with Active PFC (Power Factor Correction). |
Standards Compliance | Meets ATX 12V v3.0 & EPS 12V v2.92 specifications. |
Energy Compliance | Conforms to Energy Star & EuP (Energy Using Products) directives. |
Multi-layer Protection | OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP protection built-in. |
CPU/Motherboard Support | Supports Intel & AMD multi-core CPUs; Compatible with ATX / BTX (Haswell ready). |
High-End GPU Ready | PCI-E (6+2) pin connector supports NVIDIA® SLI™ & AMD CrossFireX™ setups. |
General
- Wattage1000 Watt
- ModularFully Modular
- Connector TypeATX
