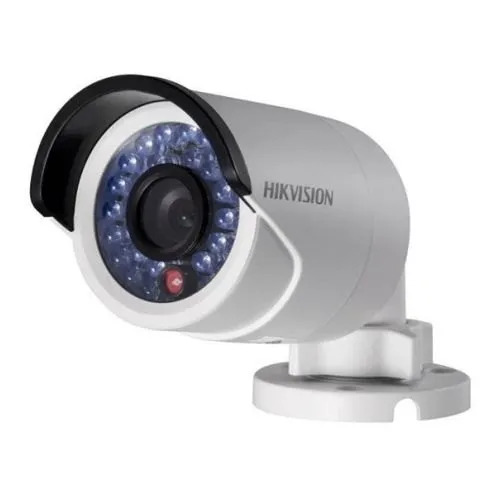

Hikvision 6MM IP Bullet Camera (DS 2CD 2010F I)
Feature | Details |
|---|---|
Image Sensor | 2.54 cm Progressive Scan CMOS |
Minimum Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Lens | 6mm |
Lens Mount | M12 |
Day & Night | IR cut filter with auto switch |
Digital Noise Reduction | 3D DNR |
Wide Dynamic Range | Digital WDR |
Category | Specification |
|---|---|
Video Compression | H.264 / MJPEG |
Video Bit Rate | 32 Kbps – 8 Mbps |
Dual Stream | Yes |
Max Resolution | 1280 x 960 |
Max Frame Rate | 50 Hz: 25 fps (1280 × 960), 60 Hz: 30 fps (1280 × 960) |
Sub Stream | 50 Hz: 25 fps (320 x 240), 60 Hz: 30 fps (320 x 240) |
Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable |
Backlight Compensation | Yes, zone optional |
ROI Support | Yes |
Network Storage | NAS (Support NFS, SMB/CIFS) |
Detection | Intrusion detection, Line crossing, Motion detection, Dynamic analysis |
Alarm Triggers | Tampering alarm, Network disconnect, Storage exception |
Protocols Supported | TCP/IP, HTTP, FTP, SMTP, SNMP, IPv6, Bonjour, ONVIF, etc. |
Communication Interface | 1 RJ45 10M/100M Ethernet interface |
Wi-Fi Standards | IEEE 802.11b/g/n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
Wireless Transfer Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps |
Wireless Range | 50m (dependent on environment) |
General
- TypesIP
- Placement SupportedIndoor/Outdoor
- Megapixel (Approx.)1.3 MP
- Mounting TypeWall
- Connectivity TechnologyWireless
- Video Motion DetectionYes
- Wi-FiYes
- Power Over EthernetYes
- Ethernet LANYes
