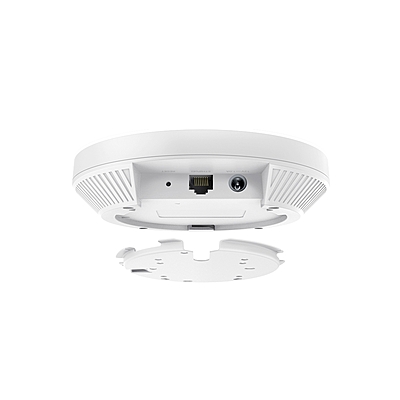

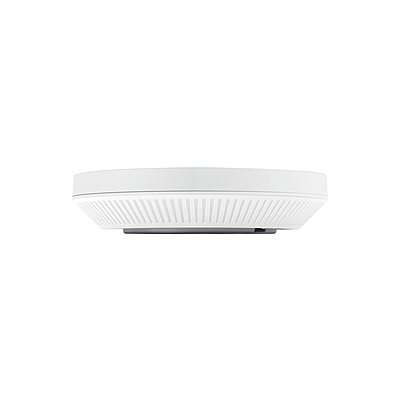

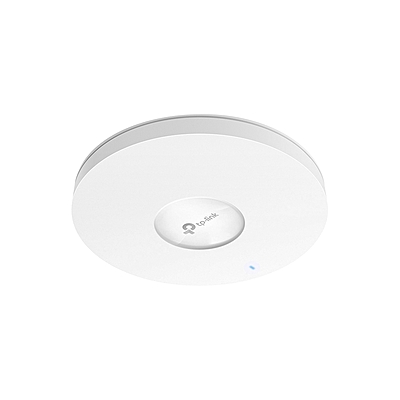

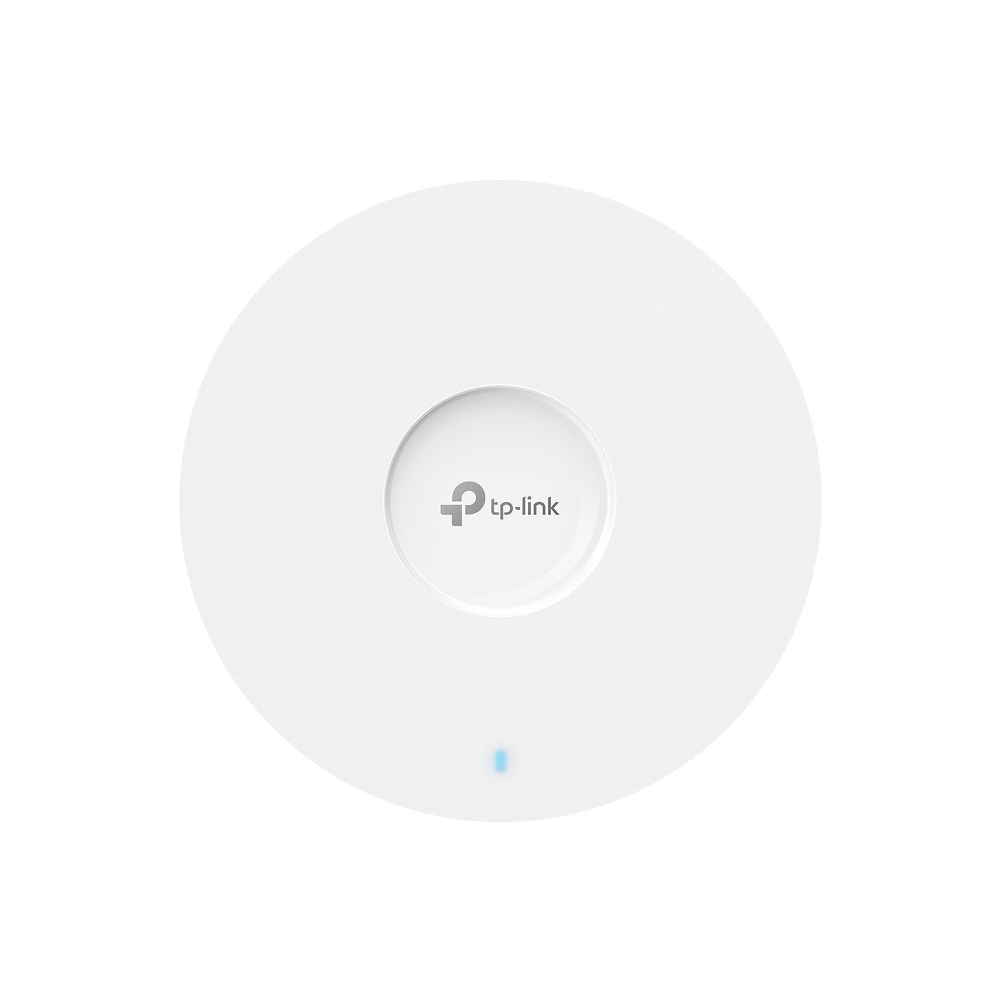

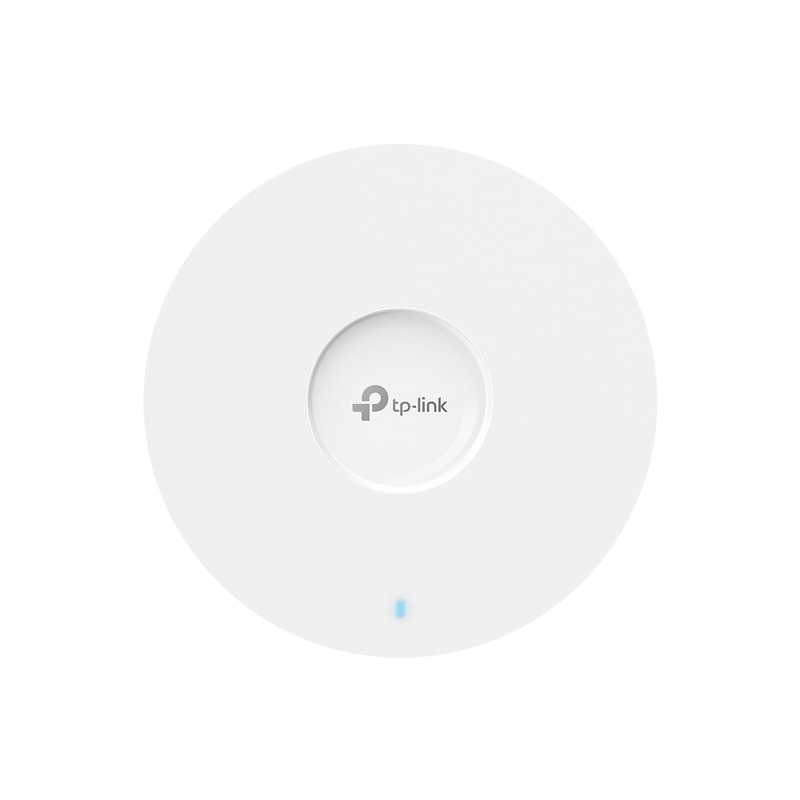

TP-Link Omada Pro AX3000 Ceiling Mount WiFi 6 Access Point-AP9650
Feature | Details |
|---|---|
WiFi 6 Speeds | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) = 2976 Mbps total |
Anomaly Detection | Multi-dimensional detection for better IT maintenance |
Cloud Management | Omada SDN via web UI or Omada app |
PoE+ Powered | Supports 802.3at PoE+ and DC adapter (included) |
Mesh & Seamless Roaming | Smooth AP connectivity and uninterrupted roaming |
Ultra-Slim Design | Compact size: Φ160 mm × 33.6 mm for sleek installations |
Category | Main Key Points |
|---|---|
Hardware Features | - 1× Gigabit Ethernet Port |
Antenna | - 2.4 GHz: 2× 4 dBi |
Dimensions | 6.3 × 6.3 × 1.3 in (160 × 160 × 33 mm) |
Mounting | Ceiling/Wall Mounting, Junction Box Mounting (Mounting Kits Included) |
Wireless Features | - Standards: IEEE 802.11 a/b/g/n/ac/ax |
Concurrent Clients | 250+ clients |
Wireless Security | WPA/WPA2/WPA3, MAC Filtering, Captive Portal Authentication, Rogue AP Detection, 802.1X Support |
Transmission Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz Band 1 & 2), <30 dBm (5 GHz Band 3) |
Management Features | Omada App, SNMP v1/v2c/v3, SSH, Web-based Management, System Log, Zero-Touch Provisioning |
Cloud Access | Yes – Requires Omada Pro Cloud-Based Controller or Omada Pro Software Controller |
Centralized Management | Omada Pro Software Controller, Omada Pro Cloud-Based Controller |
L3 Management | Yes |
General
- Antennas Quantity2
- Ethernet LAN (RJ-45) ports1
