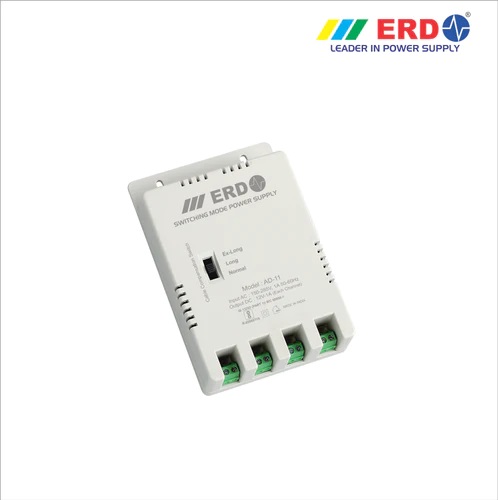

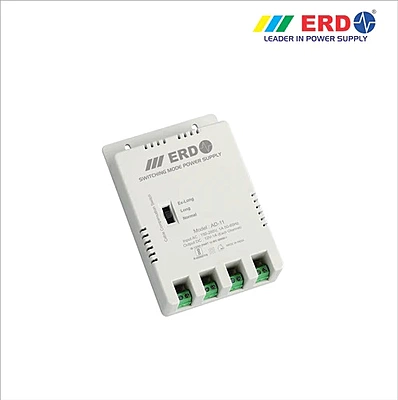

ERD 4CH CCTV Camera Power Supply (AD-11)
Feature | Specification |
|---|---|
Input Voltage | 150V to 240V AC, 50/60Hz |
Output Voltage | 12V DC |
Output Current | 1A per channel (max) |
Total Output Power | 12W per channel (48W total) |
Ripple Voltage | <5% (mV peak-to-peak) |
Efficiency | High-efficiency, low energy consumption |
Feature | Description |
|---|---|
BIS Approved | Complies with Bureau of Indian Standards |
Integrated SMPS Design | Provides stabilized output with low interference |
Surge Protection | Protects connected devices from voltage spikes |
Overload Protection | Prevents damage due to excessive current load |
Short Circuit Auto Restart | Automatically recovers after short circuit incidents |
Cable Compensation Switch | Adjustable output for different cable lengths (Normal, Long, Extra Long) |
Resettable Fuses | Each channel has its own resettable fuse for individual protection |
General
- Wattage450 Watt
- ModularSemi Modular
