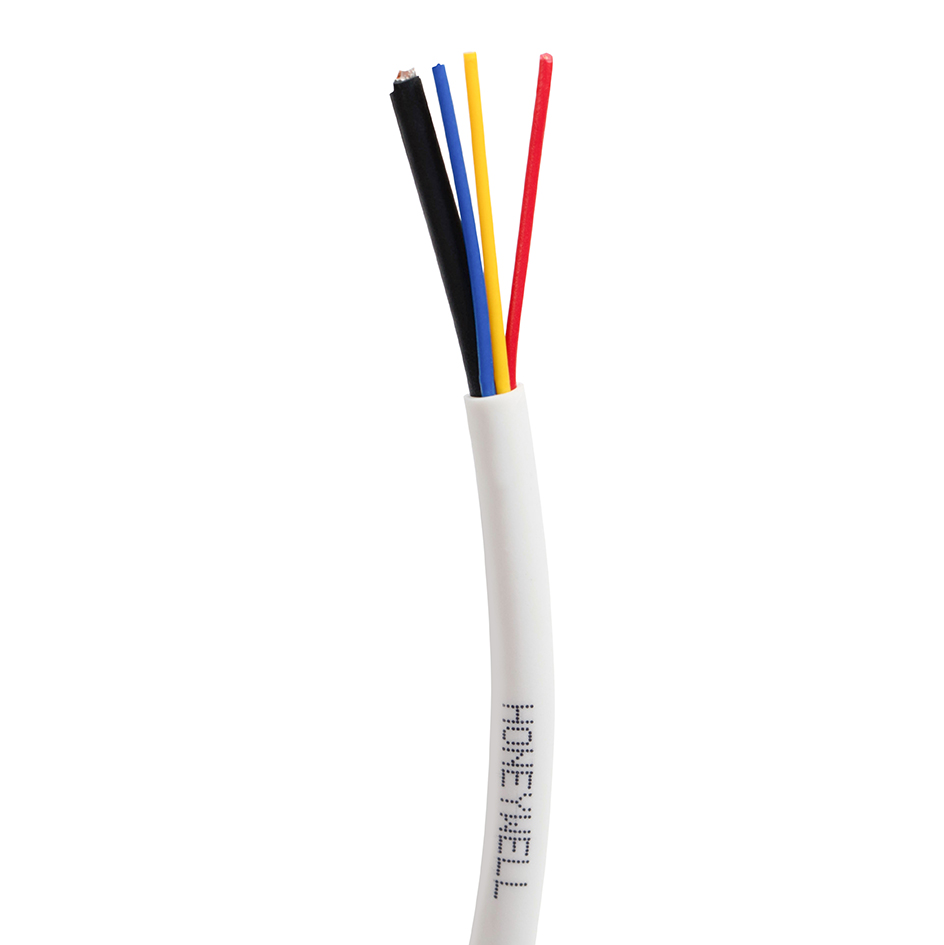

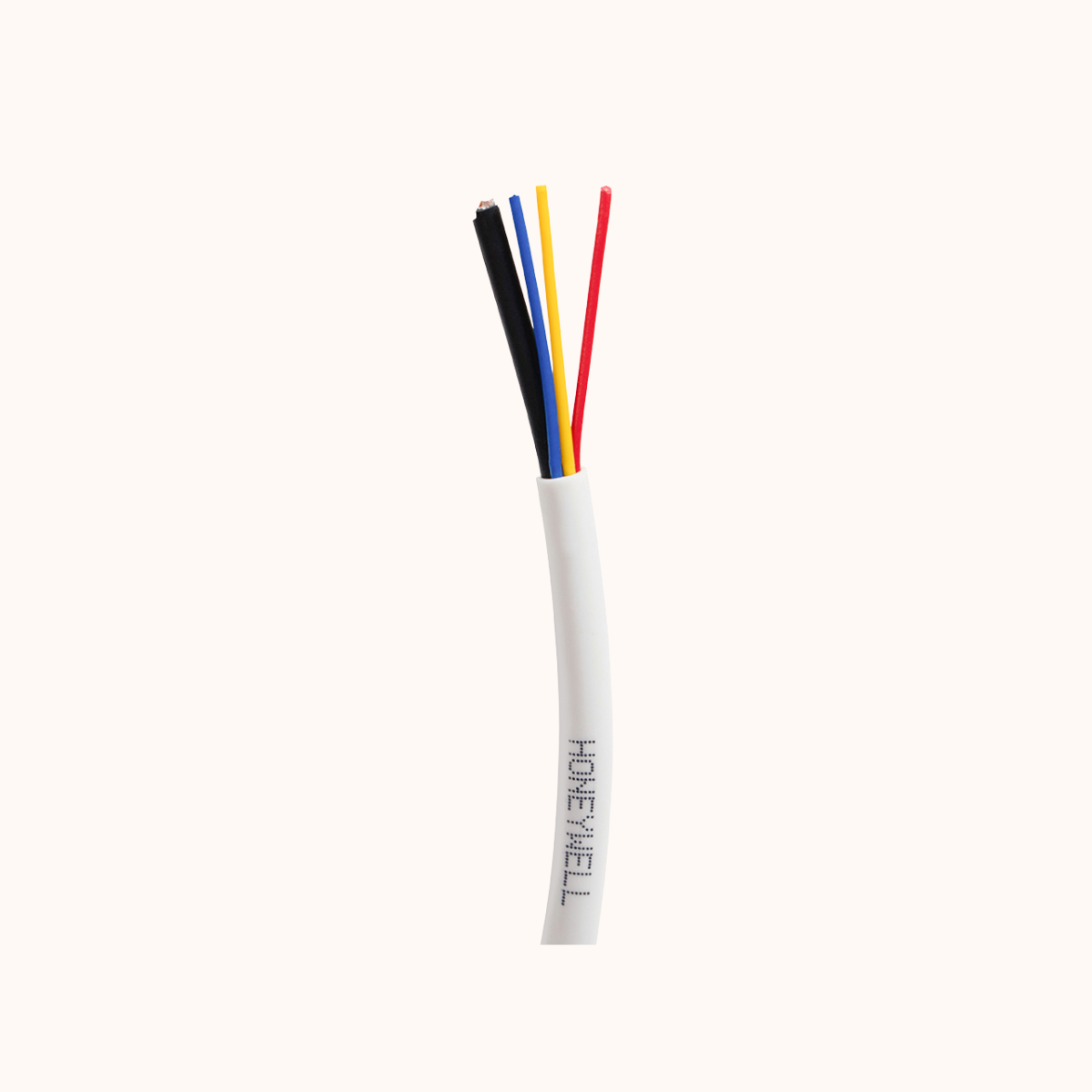

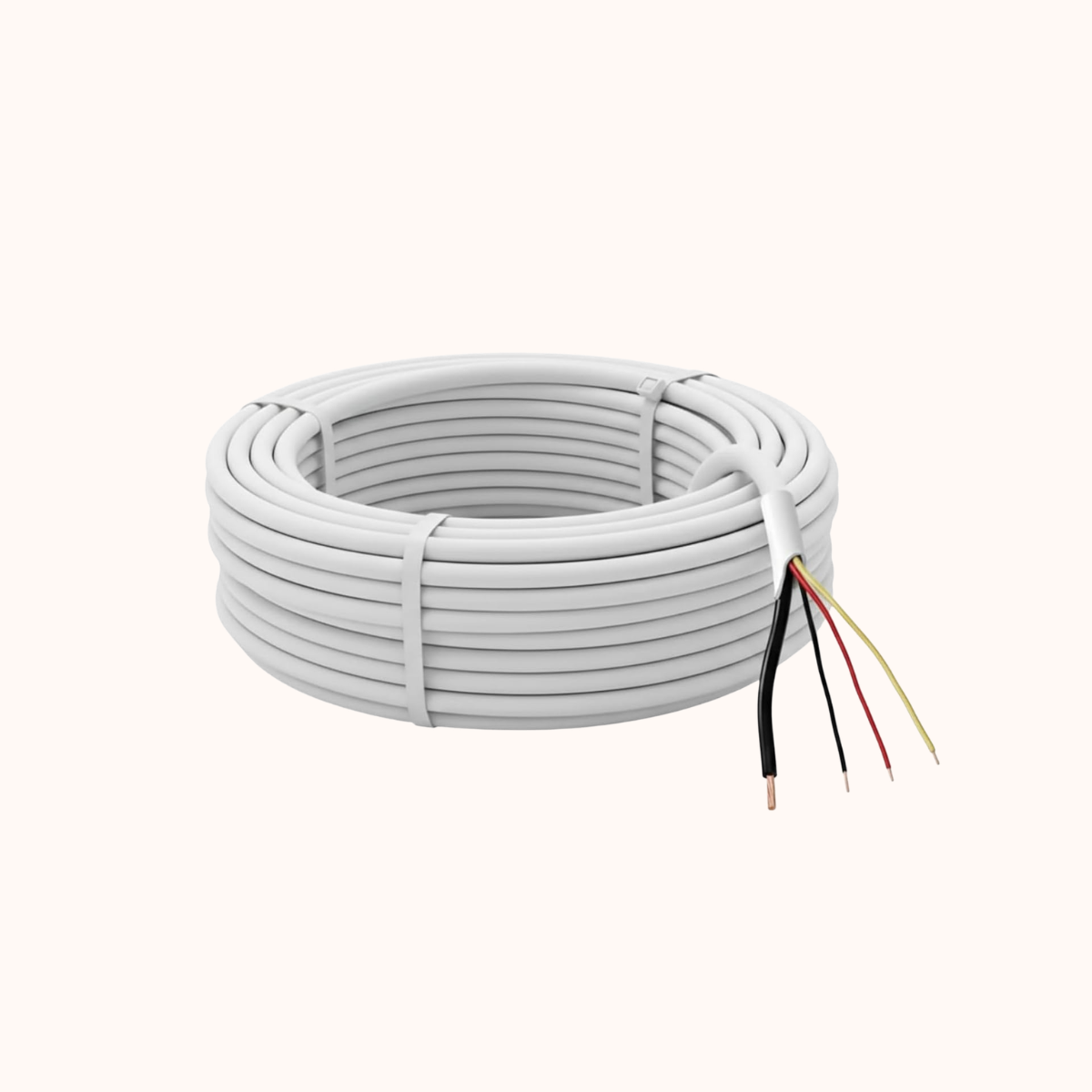

D-Link Cable 3+1 (For Laying)
Features:
Ensures high-quality video transmission with minimal interference.
Outer PVC insulation provides durability and protection.

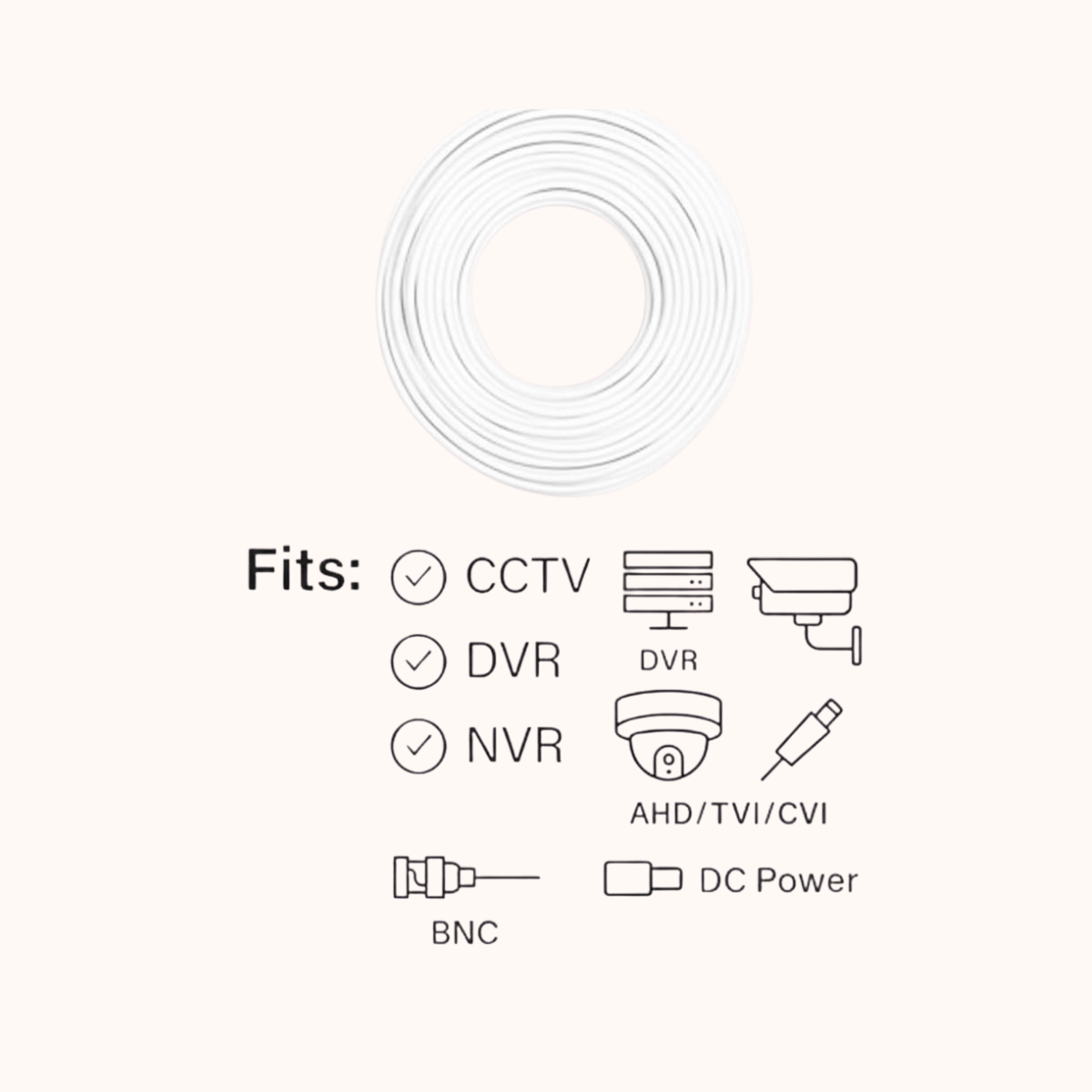

Used for long-distance camera installations.
Suitable for both indoor and outdoor use.
The dimensions of a 3+1 CCTV cable typically vary slightly between manufacturers, but generally, the outer diameter is around 5.70 mm to 5.80 mm, with a jacket thickness of approximately 0.65 to 0.70 mm.
Here are some key specifications:
Outer Jacket Material: PVC (flame retardant in some models)
Power Core Conductors: 3 insulated cores (commonly red, yellow, and grey)
Video Core Conductor: Solid copper with shielding (Aluminum Mylar and Copper Braiding)
Coaxial Core Diameter: Around 1.31 mm to 1.35 mm
Overall Cable Diameter: 5.70 mm to 5.80 mm ± 0.30 mm depending on the brand.
For more detailed specifications, you can check manufacturer datasheets like:
Polycab 3+1 CCTV Cable: Polycab【28】
Digisol 3+1 CCTV Cable: Digisol Datasheet【29】
D-Link 3+1 CCTV Cable: D-Link Datasheet【30】
