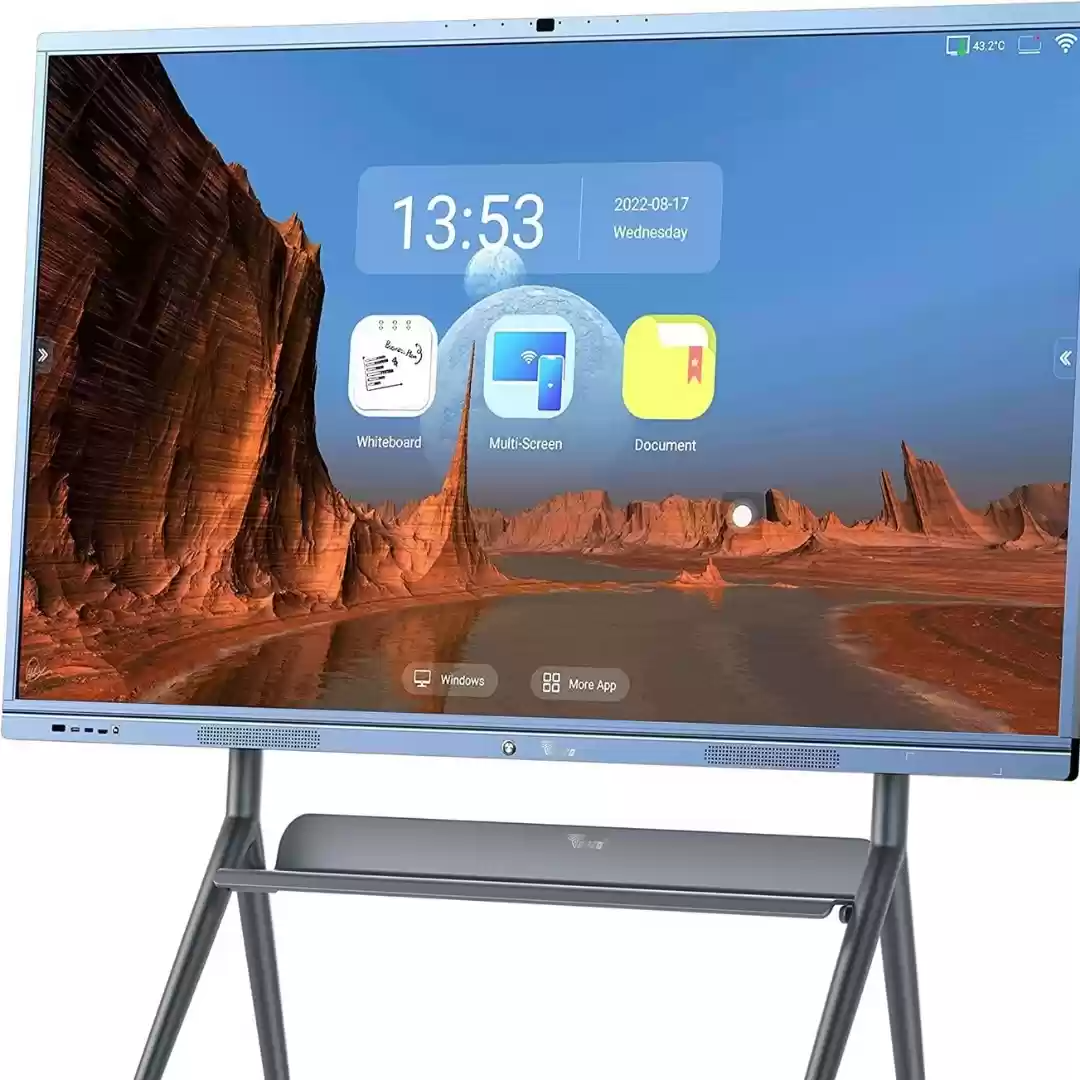

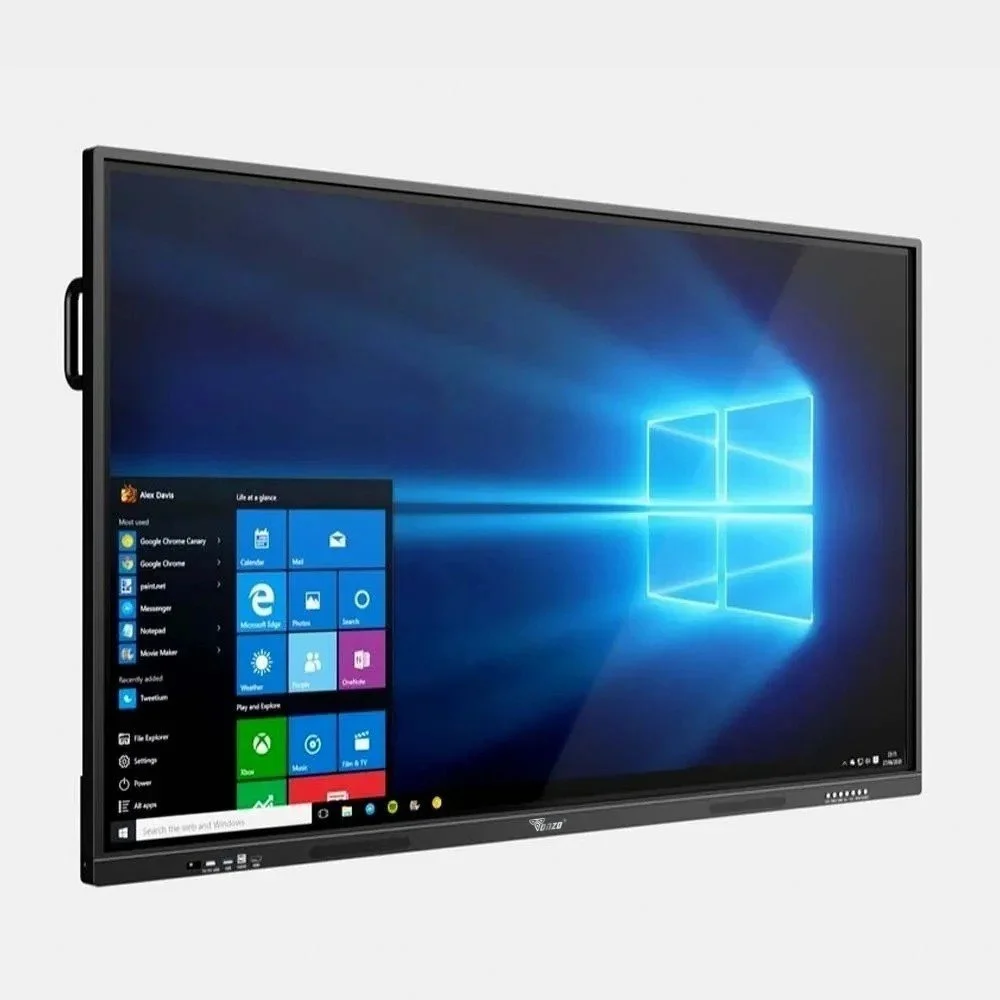

Tonzo Interactive Flat Panel 86 Inch
Feature | Description |
|---|---|
Split Screen | Allows displaying content from multiple sources simultaneously |
Screen Sharing | Enables wireless sharing from devices like phones, tablets, or laptops |
Endless Canvas/Pages | Unlimited whiteboard space for writing and drawing |
Internet Access & Control | Access the internet directly and manage access permissions |
Multiple-finger Gesture Recognition and Control | Supports gesture-based navigation using multiple fingers |
Text and Shape Recognition | Automatically converts handwritten input into digital text/shapes |
Airgo Cast / Transcreen | Wireless screen mirroring across platforms |
4K UHD Resolution | Ultra-high-definition resolution for clear and detailed visuals |
Screen Overlay | Enables annotation and writing over live screen content |
Curtains | On-screen curtain function for focus or classroom control |
Category | Specification |
|---|---|
Size | 86 Inches |
Resolution | 4K (3840×2160) UHD |
Brightness (nits) | 450 cd/m² |
Display Ratio | 16:9 |
Contrast | 15000:1 |
Colour | 1.07 Billion (8-Bits) |
Backlight Life | >50000 Hours |
Backlight Type | D-LED |
Viewing Angle | 178° (V) / 178° (H) |
Tempered Glass | 8MM Grade 7 Explosive-Proof with Anti-Glare Coating |
Touch Technology | High Precision Infrared Touch |
Touch Points | 20 (Android) / 40 (Windows) |
Touch Resolution | 32767 × 32767 |
Surface Hardness | Mohs Class 7 |
Touch Accuracy | ±0.1 mm |
Response Speed | ≤4 ms |
Touch Tools | Finger, Touch Pen, 3MM Non-Transparent Object |
Supported OS | Windows, Android, Mac OS |
CPU | ARM A55×8 @ 1.8GHz, Octa-Core |
Mainboard | V100 |
Android Version | Android 14.0 |
GPU | ARM Mali-G52 MP |
Storage (RAM/ROM) | 8GB DDR4 / 128GB EMMC |
Connectivity | WLAN 2.4GHz + 5GHz, Bluetooth 5.1 |
Software Included | Whiteboarding, Screen Share, Zoom, Google Playstore Enabled |
USB Supported Formats | Movies: MPEG2, AVI, MP4, MKV, MOV, etc. |
Audio Supported Formats | MP3, MP2, WMA, WAV, etc. |
Image Supported Formats | JPEG, PNG, etc. |
File Support | Word, Excel, PowerPoint, PDF, TXT |
Audio Output | 25W × 2 Stereo Sound Effects |
Front I/O Ports | Touch USB ×1, USB 2.0 ×2, HDMI In ×1, Type-C ×1 |
Rear I/O Ports | HDMI Out ×1, RJ45 ×2, PC Audio ×1, VGA ×1, DP ×1, Optical ×1, HDMI ×2, USB 3.0 ×2, Type-C ×1, Touch USB ×1, Mini Line Out ×1 |
Frame Colour | Silver or Black |
Product Size (mm) | 1155 × 1955 × 2260 mm |
Net Weight | Approx. 75 KG |

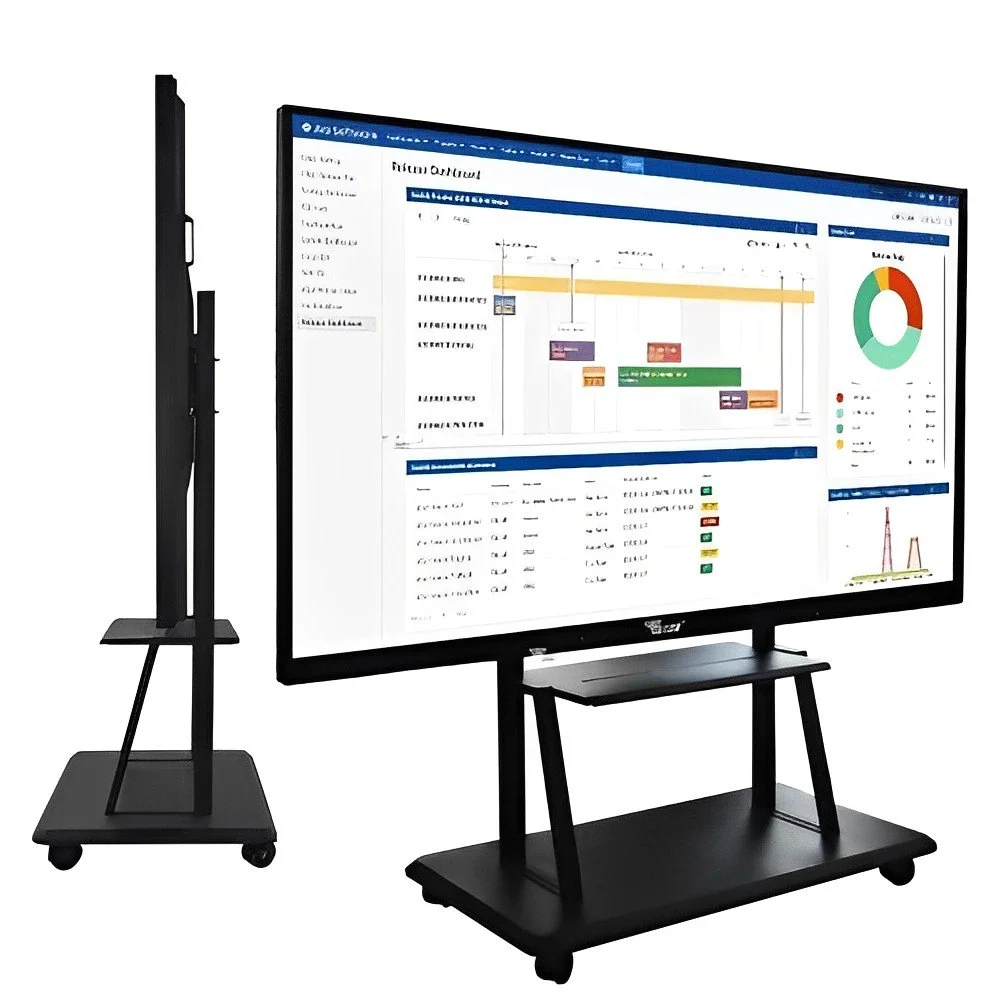

Installation Options | Wall Mount with Bracket / Trolley Metal Stand (Optional), IFP Sliding |
Safety Cover | Optional |
Accessories Included | Power Cord (1.5m) ×1, User Manual ×1, Remote Control ×1, Touch Pen ×2, Touch Wire (3m) ×1, HDMI Cable (1.5m) ×1, Extended Pointer (1m) ×1 |
Compatibility
- Compatible DevicesUSB Devices
Camera & Mic
- Camera4K
Connectivity
- External Device SupportAndroid
Display Features
- Touch Points20 Points
- Viewing Angle178°
General
- Display TypeLED
- Display Size86"
- Resolution3840x2160
- Operating SystemDual OS (Android + Windows)
- RAM8GB
- Storage128GB
- Mounting OptionsWall Mount
