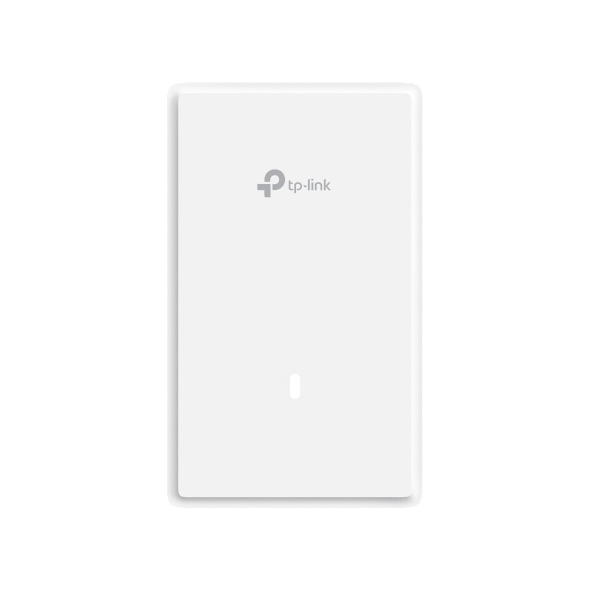

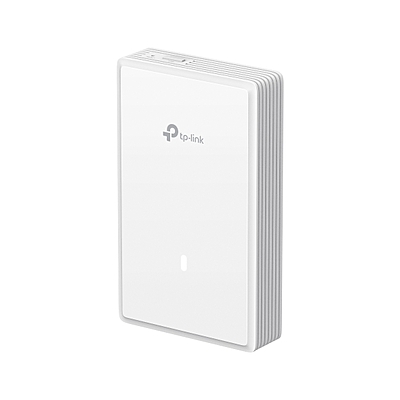

TP-Link Omada BE5000 Wall Plate Wi-Fi 7 Access Point ,EAP725

Hardware Features

Interface

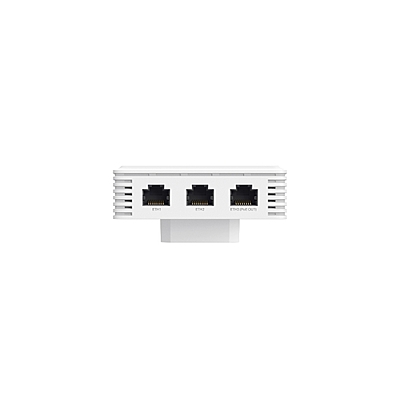

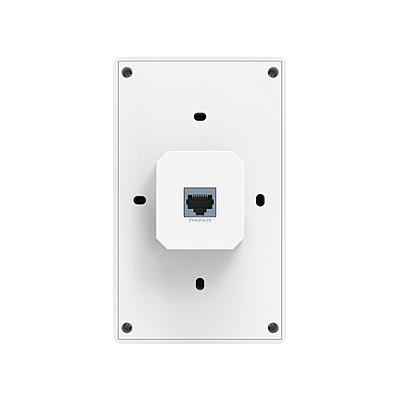

Uplink: 1× 2.5G Ethernet Port; Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (PoE pass-through requires 802.3at/bt input)

Physical Security Lock

No

Button

Reset, LED

Power Supply

802.3at/bt PoE

Max. Power Consumption

802.3bt: 17W (PoE Out support 15.4W); 802.3at: 17W (PoE Out support 7W)

Dimensions (W x D x H)

143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)

Antenna

4× Internal Antennas: 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi

Mounting

Wall Mounting (Kits included)

Wireless Features

Coverage

50 ㎡ (600 ft²)

Concurrent Clients

250+

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 4324 Mbps; 2.4 GHz: Up to 688 Mbps

Wireless Functions

16 SSIDs, Automatic Channel Assignment, Transmit Power Control, Seamless Roaming, Beamforming, QoS, Load Balance, Airtime Fairness, and more

Wireless Security

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Captive Portal Authentication, MAC Filtering, VLAN, Rogue AP Detection

Transmission Power

< 22 dBm (2.4 GHz & 5 GHz)

Management Features

Omada App

Yes

Centralized Management

Omada Hardware Controller (OC300, OC200), Omada Software Controller, Omada Cloud-Based Controller

Cloud Access

Yes (requires the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

SNMP

v1, v2c, v3

SSH

Yes

Web-based Management

Yes

L3 Management

Yes

Multi-site Management

Yes

Zero-Touch Provisioning

Yes (requires the use of Omada Cloud-Based Controller)

Others

Certification

FCC, RoHS

Package Content

BE5000 Wall Plate Wi-Fi 7 Access Point, Installation Guide, Mounting Kits

System Requirements

Windows XP, Vista, 7, 8, 10, 11, Linux

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH (non-condensing)
