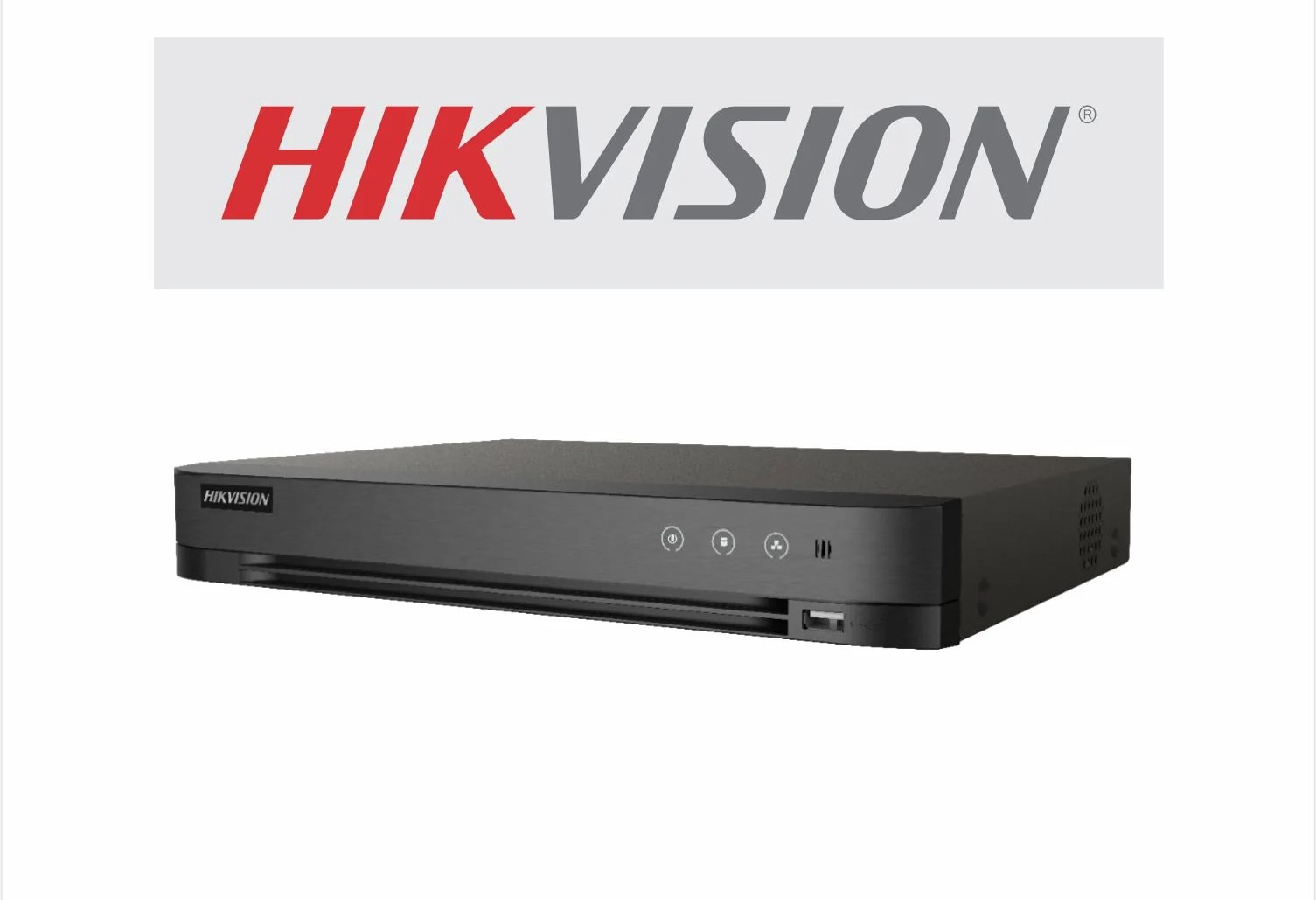

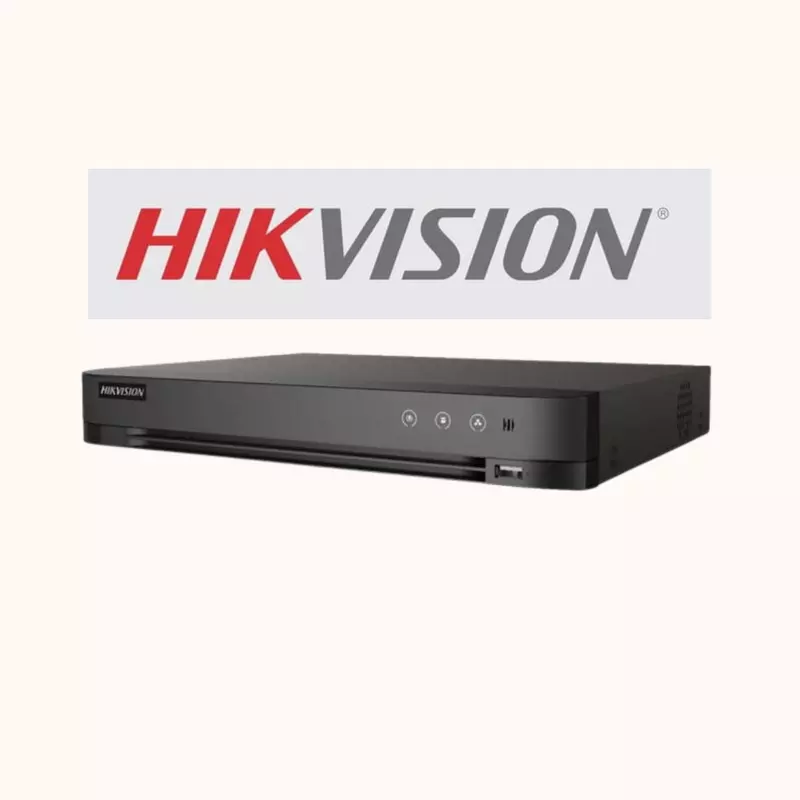

HIKVISION 4Port 5MP ACCUSENSE DVR (iDS-7204HUHI-M1/X)
Feature Category | Specification / Description |
|---|---|
Facial Recognition | Supports face picture library (up to 16 libraries), face comparison, and face search |
Face Comparison Alarm | 2-channel face picture comparison alarm (HD analog camera) |
Perimeter Protection | Human/Vehicle Analysis – Up to 4 channels |
IP Video Input | 2-ch (standard), up to 6-ch; in IP enhanced mode: 4-ch (up to 8-ch), each up to 4 Mbps |
Supported IP Formats | H.265+/H.265/H.264+/H.264 |
IP Video Resolution | Up to 8 MP |
Analog Video Input | 4-ch BNC, supports coaxitron |
HDMI Output | 1-ch, resolutions: 2560×1440, 1920×1080, 1280×1024, 1280×720 @60Hz |
VGA Output | 1-ch, resolutions: 1920×1080, 1280×1024, 1280×720 @60Hz |
HDMI/VGA Output | Simultaneous HDMI/VGA output |
CVBS Input | PAL/NTSC |
CVBS Output | 1-ch BNC, PAL: 704×576, NTSC: 704×480 |
Synchronous Playback | 4-ch |
HDTVI Input Support | Up to 8 MP @12/15 fps, other formats: 3K, 5MP, 4MP, 1080P, 720P |
AHD Input Support | 5 MP, 4 MP, 1080P, 720P @ specified fps |
HDCVI Input Support | 8 MP, 3K, 5 MP, 4 MP, 1080P, 720P @ specified fps |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Audio Input | 1-ch RCA + 4-ch via coaxial cable |
Two-Way Audio | 1-ch, RCA (using first audio input channel) |
Category | Specification / Description |
|---|---|
Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
Encoding Resolution | 8 MP@8 fps, 3K@12 fps, 5 MP@12 fps, 4 MP@15 fps, 8 MP Lite@15 fps, 3 MP@18 fps |
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (PAL)/30 fps (NTSC) | |
*Note: 8 MP@8 fps only on channel 1; 8 MP Lite only on channels 2–4 | |
Sub-Stream | WD1/4CIF/CIF@25 fps (PAL)/30 fps (NTSC) |
Video Bitrate | 32 Kbps to 10 Mbps |
Dual-stream | Supported – Main stream or sub-stream |
Stream Type | Video, Video & Audio |
Audio Compression | G.711u |
Audio Bitrate | 64 Kbps |
Total Network Bandwidth | 96 Mbps |
Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
Remote Connections | Up to 32 |
Network Interface | 1 × RJ45 10/100 Mbps self-adaptive Ethernet |
SATA Interface | 1 SATA interface |
Storage Capacity | Up to 12 TB per disk |
Serial Interface | RS-485 (half-duplex) |
USB Interface | Front: 1 × USB 2.0; Rear: 1 × USB 3.0 |
Alarm In/Out | Not Available (N/A) |
Power Supply | 12 VDC, 1.5 A |
Power Consumption | ≤ 10 W (without HDD) |
Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Humidity Range | 10% to 90% |
Dimensions (W × D × H) | 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) |
Weight | ≤ 1.16 kg (2.6 lb) |
General
- Product TypeDVR
- HDD Capacity10TB
- Channels Quantity4 Channels
- Megapixel (Approx.)5 MP
- Night VisionYes
- Mic SupportedYes
