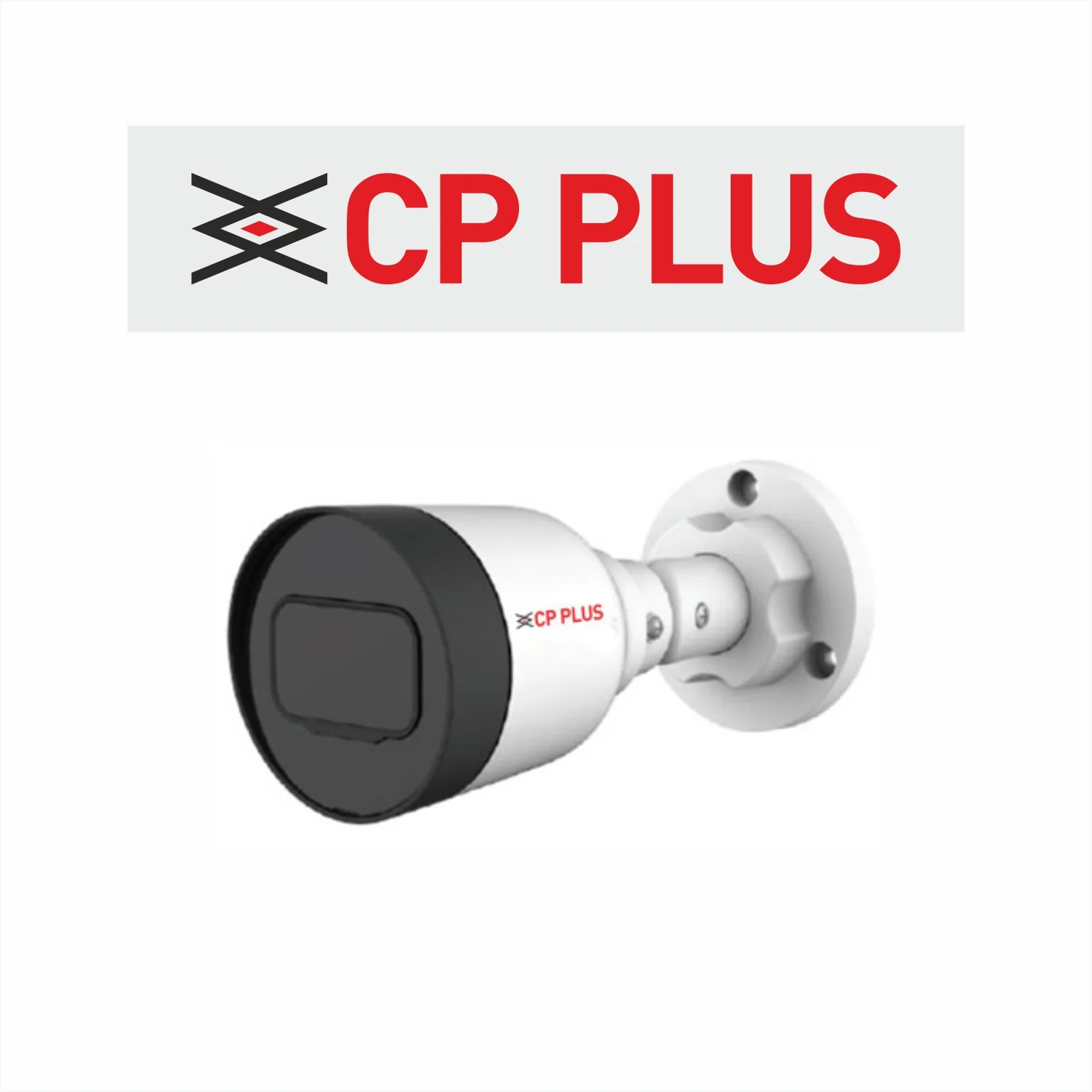

CP PLUS 4MP WDR IR Network Bullet (CP-UNC-TA41PL3C)

Max Aperture

F2.0

Angle of View (3.6 mm)

H: 76°, V: 40°, D: 92°

Angle of View (2.8 mm)

H: 90°, V: 50°, D: 107°

ICR

Auto (ICR)/Color/B/W

DORI Distance (3.6 mm)

Detect: 85.2m, Observe: 34.1m, Recognize: 17.0m, Identify: 8.5m

DORI Distance (2.8 mm)

Detect: 68.0m, Observe: 27.2m, Recognize: 13.6m, Identify: 6.8m

Close Focus Distance

3.6 mm: 1.4m; 2.8 mm: 1m

Motion Detection

4 area, Rectangle

Video Compression

InstaStream, H.265, Smart H.264+, H.264, H.264B, MJPEG

Bit Rate

H.265: 12–6144 Kbps; H.264: 32–6144 Kbps

Resolution Options

4M, 3M, 1080p, 1.3M, 720p

Privacy Mask

4 Areas

Frame Rate

Main: up to 25/30 fps (2560×1440); Sub: up to 25/30 fps (704×576/480)

Alarm Events

Network/IP error, motion, tamper, audio, security exception

Protocols

IPv4/6, HTTP, TCP, UDP, RTP, RTSP, FTP, DHCP, NTP, ONVIF, InstaOn Cloud

Mobile Support

iPhone, iPad, Android

Audio

Built-in Mic; Compression: G.711a/Mu, G.726, PCM

Cyber Security

Video/config encryption, HTTPS, secure boot & upgrade

Ethernet

RJ-45 (10/100Base-T)

IR Distance

30 meters

Weatherproof Rating

IP67

Casing Material

Metal + Plastic

Operating Temp.

-40°C to +60°C

Storage Temp.

-40°C to +60°C

Humidity

≤ 95%

Power Source

DC12V, PoE (802.3af)

Power Consumption

Max: 3.4W (DC), 4.4W (PoE)

Dimensions

162.6 × 70 × 70 mm

Weight

0.22 kg
