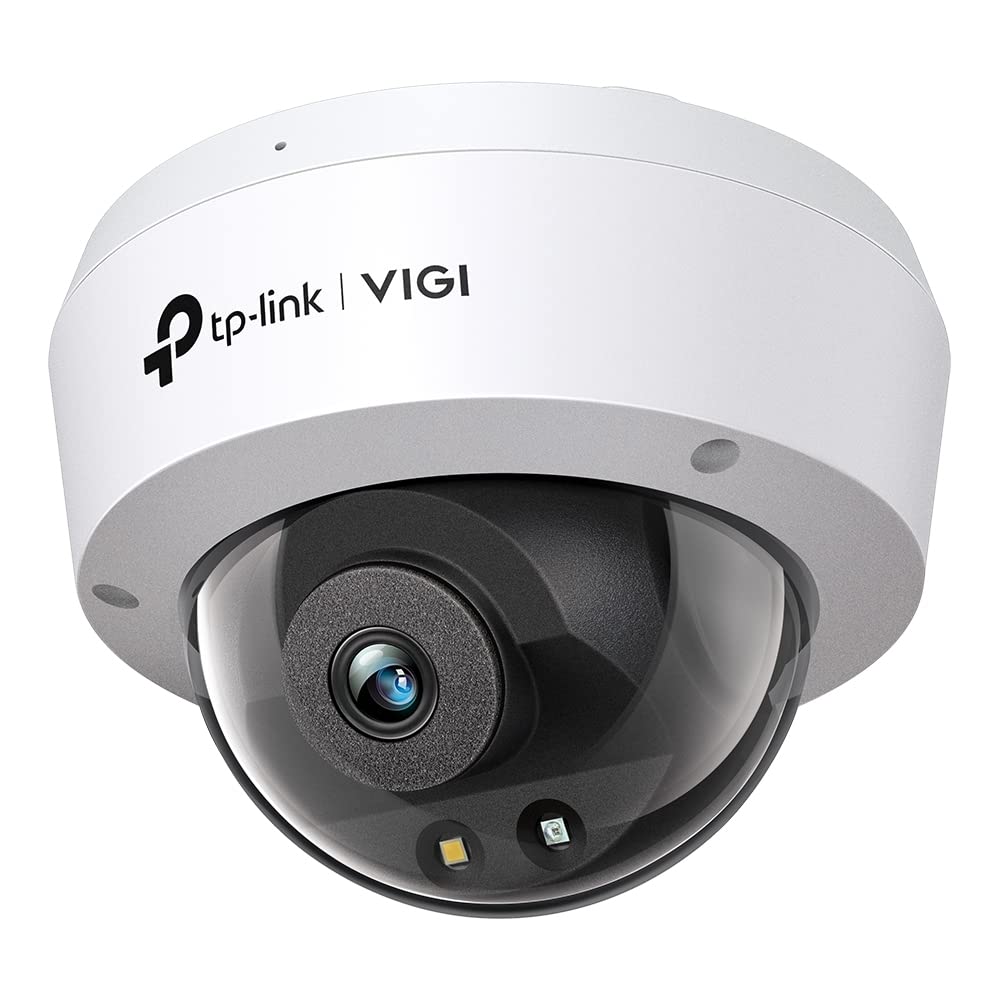

TP-Link VIGI (2.8mm) 3MP Full-Color Dome Network Camera-C230
Recommended Uses For Product | Spying, Pet Monitoring, Baby Monitoring, Indoor Security, Outdoor Security |
Brand | TP-Link |
Connectivity Technology | Wired |
Special Feature | HD Resolution, Night Vision, Built In Light, Full Color, Motion Sensor |
Indoor/Outdoor Usage | Outdoor, Indoor |
Compatible Devices | Laptop |
Power Source | Corded Electric |
Connectivity Protocol | Ethernet |
Controller Type | Android |
Mounting Type | Ceiling Mount |
Camera Specifications Table
Category | Specification |
|---|---|
Image Sensor | 1/2.8” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Aperture | 2.8 mm: F1.6 |
Lens | 2.8 mm / 4 mm |
Lens Mount | M12 |
Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
Weatherproof Rating | IP67 |
Pan/Tilt/Rotate Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
🔍 Lens & Field of View (FOV)
Focal Length | Horizontal FOV | Vertical FOV | Diagonal FOV |
|---|---|---|---|
2.8 mm | 107.5° | 57.2° | 128.7° |
4 mm | 89.1° | 45.1° | 106.9° |
DORI Distance
Focal Length | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
2.8 mm | 52 m (170 ft) | 22 m (71 ft) | 10 m (34 ft) | 5 m (17 ft) |
4 mm | 70 m (230 ft) | 29 m (96 ft) | 14 m (46 ft) | 7 m (23 ft) |
Angle Adjustment (Manual)
Pan | 0° to 355° |
|---|---|
Tilt | 0° to 75° |
Illuminator Details
IR LED | Quantity: 1, Range: 30 m, Wavelength: 850 nm |
|---|---|
White LED | Quantity: 1, Range: 30 m |
Control | Auto / Scheduled / Always On / Always Off |
Video
Max. Resolution | 2304 × 1296 |
|---|
General
- Placement SupportedIndoor/Outdoor
- Case TypeDome
- Megapixel (Approx.)3 MP
- Mounting TypeCeiling
- Connectivity TechnologyWired
- Video Motion DetectionYes
- Wi-FiNo
- Power Over EthernetYes
