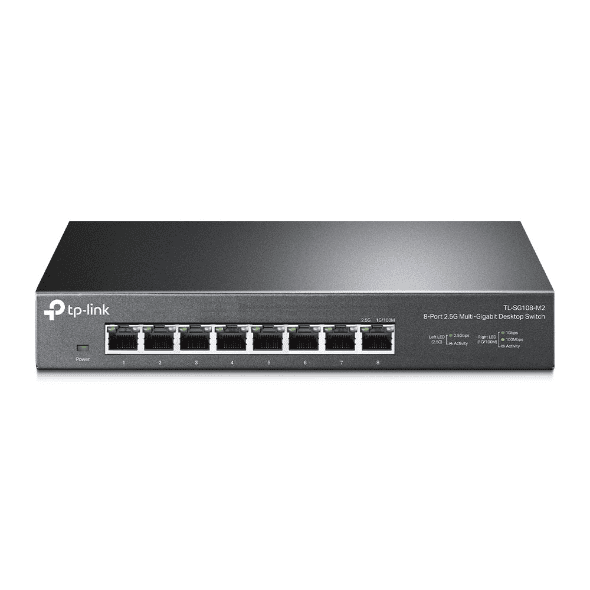

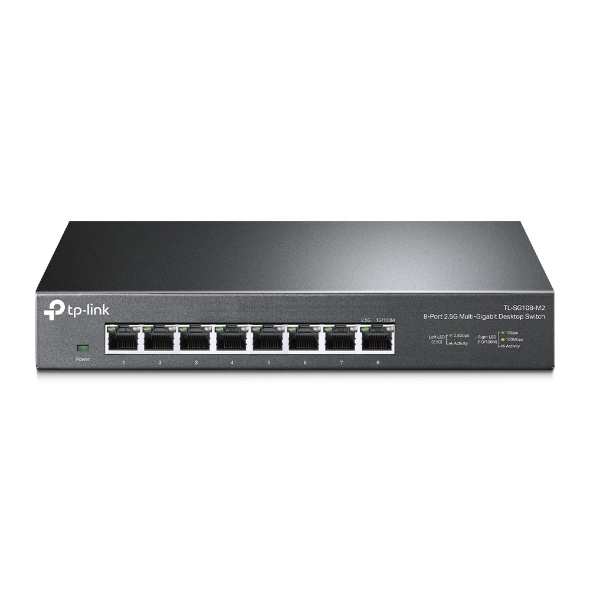

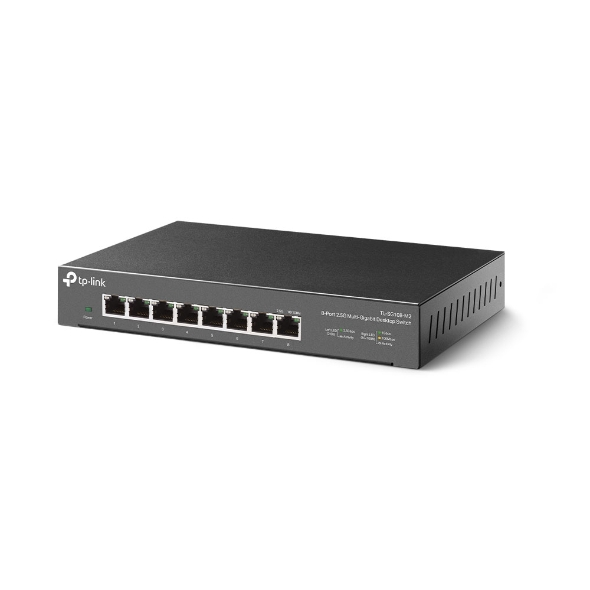

TP-Link 8-Port 2.5G Desktop Switch-TL-SG108-M2
Feature | Details |
|---|---|
Ports | 8 × 2.5-Gigabit ports (up to 40 Gbps switching capacity) |
Performance | Super-fast connections for 2.5G NAS, server, gaming PC, WiFi 6 AP, 4K video |
Use Cases | Suitable for LAN parties, home entertainment, SOHO, workstations |
Cabling | Works with existing Cat5e cables (no Cat6 needed) |
Cooling | Fanless design for silent operation |
Installation | Plug and play – no technician or setup required |
Build | Durable metal casing, desktop or wall-mountable |
Category | Details |
|---|---|
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
Interface | 8× 100Mbps/1Gbps/2.5Gbps RJ45 Ports (Auto-Negotiation, Auto-MDI/MDIX) |
Fan Quantity | Fanless |

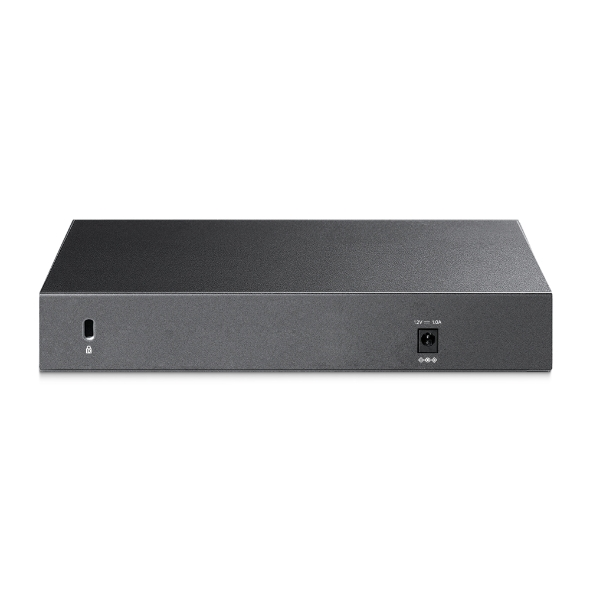

External Power Supply | External Power Adapter (12 VDC / 1.0 A) |
LED Indicators | - System Power: 1 |
Dimensions (W × D × H) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
Max. Power Consumption | 8.45 W |
Max Heat Dissipation | 28.83 BTU/h |
PERFORMANCE | |
Switching Capacity | 40 Gbps |
Packet Forwarding Rate | 29.8 Mpps |
MAC Address Table | 4K |
Jumbo Frame | 12 KB |
SOFTWARE FEATURES | |
Advanced Features | - 802.3X Flow Control |
Transmission Method | Store and Forward |
General
- TypesUnManaged
- Switching Capacity40 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports8
- Rack MountingNo
