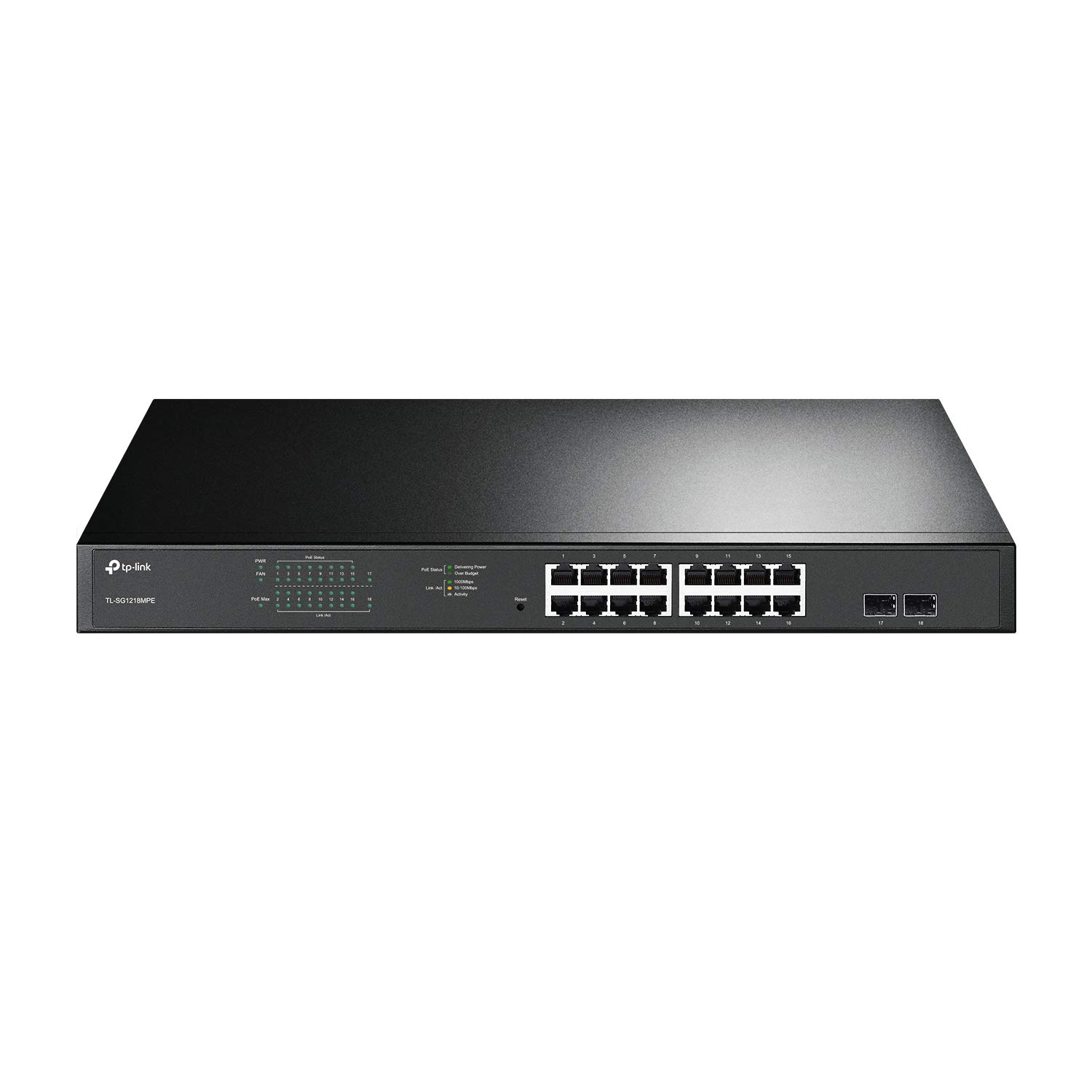

Tp-Link MPE POE GIGA Switch (SG1218)

Product Name

TP-Link MPE POE GIGA Switch (SG1218)

Switch Type

Gigabit Ethernet POE Switch

Port Configuration

18 Ports: 16 Gigabit Ethernet POE ports + 2 Gigabit SFP (Fiber) ports

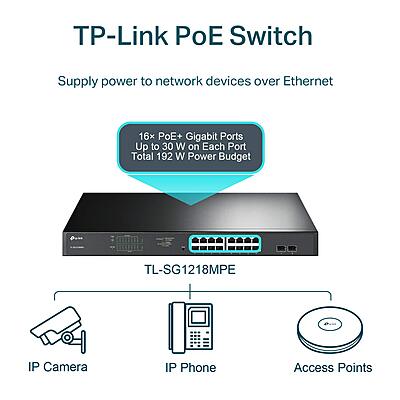

POE Standard

IEEE 802.3af/at POE (Power over Ethernet)

POE Power Budget

150W total POE power budget, capable of powering devices such as IP cameras, access points, and phones

Network Speed

Gigabit Ethernet (10/100/1000 Mbps)

SFP Ports

2 SFP (Small Form-factor Pluggable) ports for fiber connections

Switching Capacity

36 Gbps (Gigabits per second)

Packet Forwarding Rate

26.8 Mpps (Million packets per second)

POE Output Per Port

Each POE port can deliver up to 30W of power, suitable for high-power devices like security cameras and APs

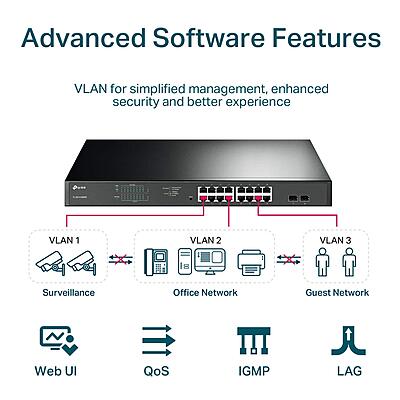

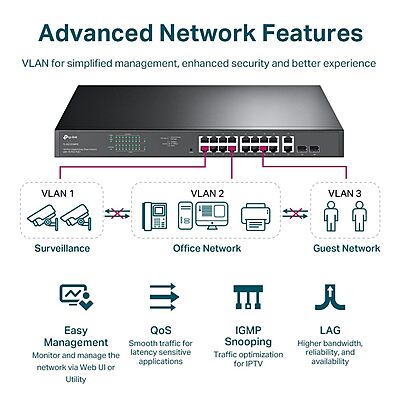

VLAN Support

Supports IEEE 802.1Q VLAN for network segmentation

Layer

Layer 2 Switch

MAC Address Table

8K MAC address table for network management

Power Supply

Internal power supply with 150W POE power budget, suitable for large-scale installations

PoE Mode

Manual or Auto POE detection for energy-efficient operation

Management

Plug-and-play, non-managed switch. No software or configuration needed for operation

Port Mirroring

Allows for network monitoring by mirroring data traffic to a designated port

Jumbo Frame Support

Supports jumbo frame sizes up to 9K bytes for efficient large-data transmission

Energy Efficient

Complies with IEEE 802.3az Energy Efficient Ethernet standards

Mounting Option

Rackmountable design for easy integration into server rooms or network cabinets

Device Compatibility

Works with POE-enabled devices such as IP cameras, phones, access points, and wireless access points
