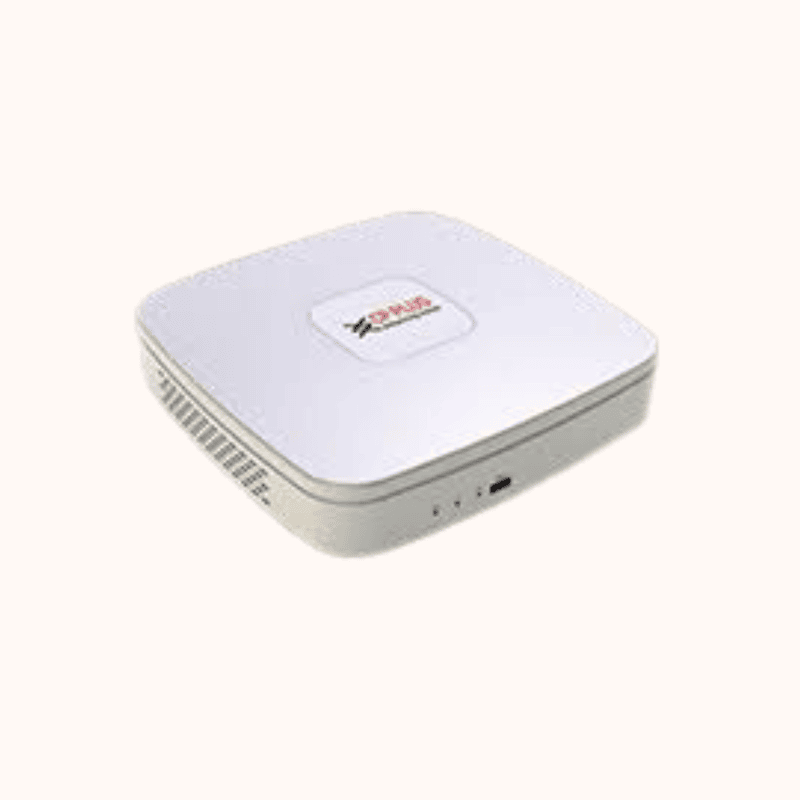

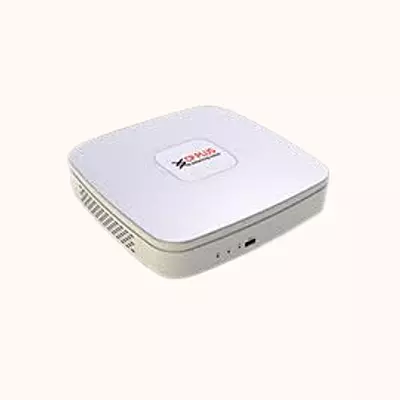

Refurbished CP PLUS 16CH DVR (CP-UAR-1600M1)

Video Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Video Compression

H.264 2CIF Realtime DVR

Video Recording

2CIF (1–25/30fps) / 2ch @ D1 + 14ch @ CIF (1–25/30fps)

Extra Stream

CIF (1–6/7fps) / QCIF (1–25/30fps)

Video Display Split

1 / 4 / 8 / 9 / 16

Privacy Masking

4 rectangular zones (each camera)

Video Loss

Supported

Camera Blank

Supported

Hard Disk

1 SATA port, up to 4TB

Trigger Events

Recording, Tour, Video Push, Email, FTP, Buzzer & Screen Tips

Recording Mode

Manual, Schedule (Regular (Continuous), MD), Stop

Search Mode

Time/Date, MD & Exact Search (accurate to second)

Playback

Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device / Network

Interface Ports

2 USB 2.0 ports

Max User Account

20 users

Record Interval

1–120 min (default: 60 min), Pre-record: 1–30 sec, Post-record: 10–300 sec

Smart Phone Compatibility

iPhone, iPad, Android, Windows Phone

Protocols

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter

Ethernet

RJ-45 port (10/100M)

Power Supply

DC12V/2A

Power Consumption

10W (without HDD)

Working Temperature

-10 ~ +55°C / 1090%RH / 86106kPa

Dimensions

270mm × 205mm × 40mm

Weight

0.5kg
