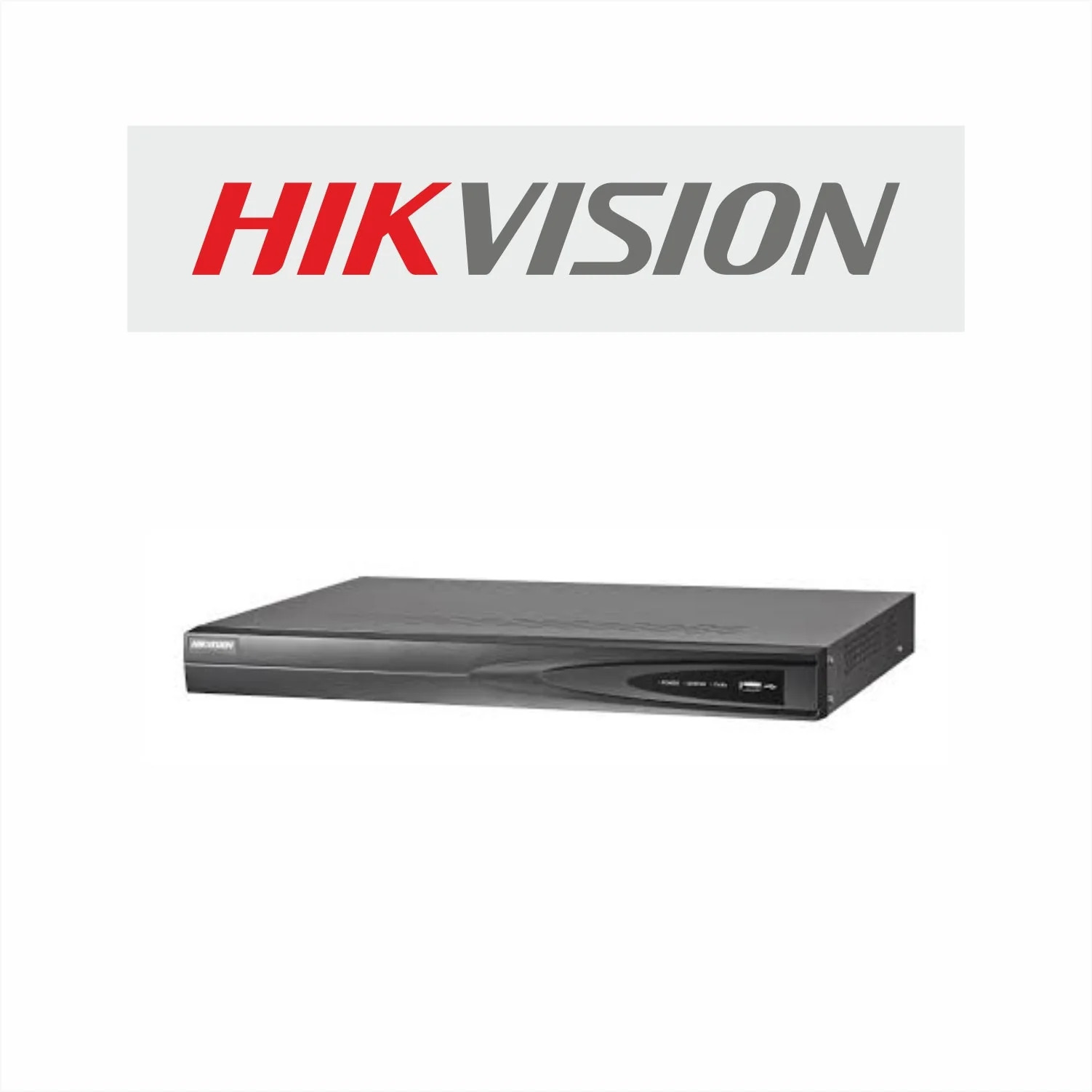

Hikvision 4-ch 1HDD H.265+ NVR (DS-7604NXI-K1)

Facial Recognition

Face detection, picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 libraries, 5,000 face pictures (≤1MB each, ≤73MB total), or 20,000 pictures (≤4MB each, ≤1GB total)

Facial Detection Performance

1-ch, 4 MP

Face Picture Comparison

2-ch (Captured from Camera)

Motion Detection 2.0

4 MP analysis (up to 8 MP in enhanced SVC mode) for human and vehicle recognition

Perimeter Protection

1-ch, 4 MP video analysis for human and vehicle recognition

IP Video Input

4-ch

Incoming Bandwidth

40 Mbps

Outgoing Bandwidth

80 Mbps

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using audio input)

Decoding Formats

H.265, H.265+, H.264+, H.264

Recording Resolution

12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

PoE Interface

4 × RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

≤ 50 W (Standard: IEEE 802.3af/at)

Auxiliary Interface

1 SATA interface, Up to 10 TB per HDD, 2 × USB 2.0 ports, 4/1 Alarm In/Out (Optional)

Power Supply

48 VDC, 1.35 A

Power Consumption

≤ 10 W (without HDD and PoE off)

Dimensions (W × D × H)

320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")

Weight

≤ 1 kg (without HDD, 2.2 lb)
