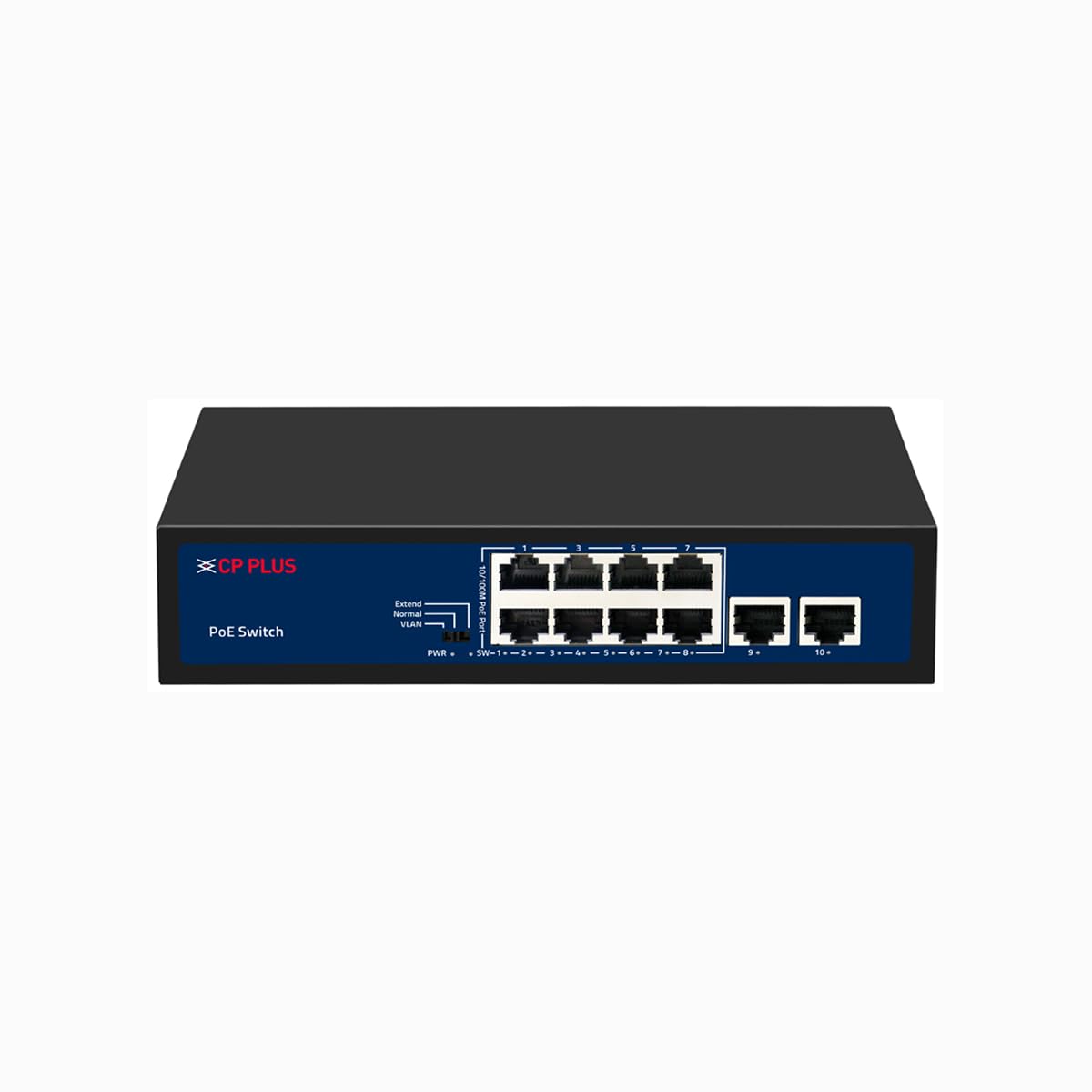

CP Plus 10 Ports Fast Ethernet with 8 Ports Poe Switch , CP-DNW-HPU8H2-96-V2
The CP‑Plus CP‑DNW‑HPU8H2‑96‑V2 is a 10‑port 10/100 Mbps Ethernet switch designed for surveillance and network setups. It provides 8 PoE (Power over Ethernet) ports (supporting up to 30 W per port) plus 2 non‑PoE uplink ports. With a PoE power budget of 96 W, lighting/ESD protection, and extend mode (for longer cable runs), it is suited for powering multiple IP cameras or PoE devices in small to medium deployments
1 | Ports & Configuration | 10 ports total: 8 × PoE RJ‑45 10/100 Mbps; 2 × uplink RJ‑45 10/100 Mbps. |
2 | PoE Standard / Output | Supports IEEE 802.3af/at; each PoE port can deliver up to 30 W. |
3 | Total PoE Power Budget | 96 Watts for all PoE ports combined. |
4 | Transmission Distance | Standard mode: up to 100 m for 100 Mbps on CAT5e. Extend mode: can reach up to 250 m but at reduced speed (≈10 Mbps) using suitable cable. |
5 | Switching Capacity | 2 Gbps non‑blocking. |
6 | Forwarding Rate | ~0.1488 million packets per second. |
7 | MAC Address Table | Capacity for ~2,000 MAC addresses. |
8 | Safety / Protection Features | ESD protection: ~8 kV air discharge, ~6 kV contact discharge. Lightning protection supported. |
9 | Power Input | Built‑in power supply; AC input ~100‑240 V, 50/60 Hz. |
10 | Power Consumption | Less than ~5 W (when PoE load minimal or off). |
11 | LED Indicators / Modes | LEDs indicating port status, PoE status; has modes like “Extend mode” (for longer runs). Some LED light behavior shows VLAN/extend/normal states. |
12 | Operating Conditions | Operating temperature: approximately ‑20 °C to +50 °C; Humidity: 10%‑95% non‑condensing. Storage temperature more extreme. |
13 | Physical Dimensions & Weight | Dimensions: ~ 200 × 118 × 44 mm. Weight ~ 650 g. |
14 | Cable Category Requirements | Best performance with Cat5e or better; for extended distances (250 m) must use good quality cable. Holds up under typical CCTV / PoE camera cable distances. |
15 | Use Case / Ideal Applications | Suited for IP cameras / CCTV deployments, PoE powered devices like wireless access points or cameras in offices, small building networks where PoE simplifies setup. Good for moderate PoE load since it supports 30 W per port and enough budget (96 W) to power multiple devices. |
General
- TypesUnManaged
- Switching Capacity2 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports10
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
