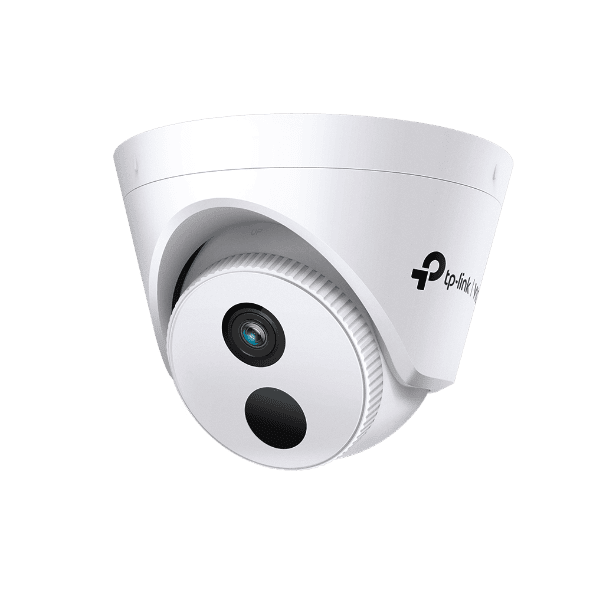

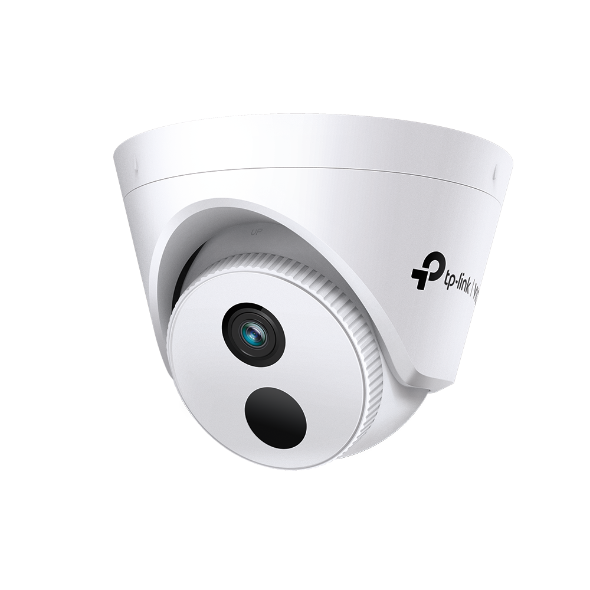

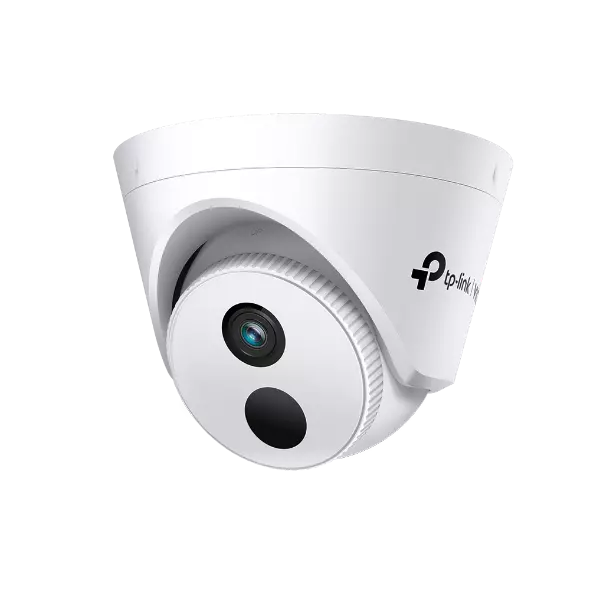

TP-Link VIGI (4mm) 2MP IR Turret Network Camera-C420I

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10,000 s

Slow Shutter

Yes

Aperture

2.8 mm: F2.2
4 mm: F2.0

Lens

2.8 mm / 4 mm

Lens Mount

M12

Minimum Illumination

Color: 0.1 Lux
0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified / Scheduled / Auto

Digital Noise Reduction

3D DNR

WDR (Wide Dynamic Range)

DWDR

IR Working Distance

30 m

Viewing Angle (2.8 mm)

H: 88.2° / V: 48.7° / D: 106.5°

Viewing Angle (4 mm)

H: 74.6° / V: 41.3° / D: 88.1°

Type

Fixed Focal Lens

Focal Length

2.8 mm / 4 mm

Aperture

2.8 mm: F2.2
4 mm: F2.0

FOV (Field of View)

2.8 mm: H: 88.2°, V: 48.7°, D: 106.5°
4 mm: H: 74.6°, V: 41.3°, D: 88.1°

Lens Mount

M12

DORI (2.8 mm)

Detect: 45 m
Observe: 19 m
Recognize: 9 m
Identify: 5 m

DORI (4 mm)

Detect: 60 m
Observe: 25 m
Recognize: 12 m
Identify: 6 m

Manual Angle Adjustment

Pan: 0°–360°
Tilt: 0°–85°
Rotate: 0°–360°

IR LED

Quantity: 1

IR Range

30 m

IR Wavelength

850 nm

White LED

N/A

Illuminator Control

Auto / Scheduled / Always on / Always off

Max. Resolution

1920 × 1080
