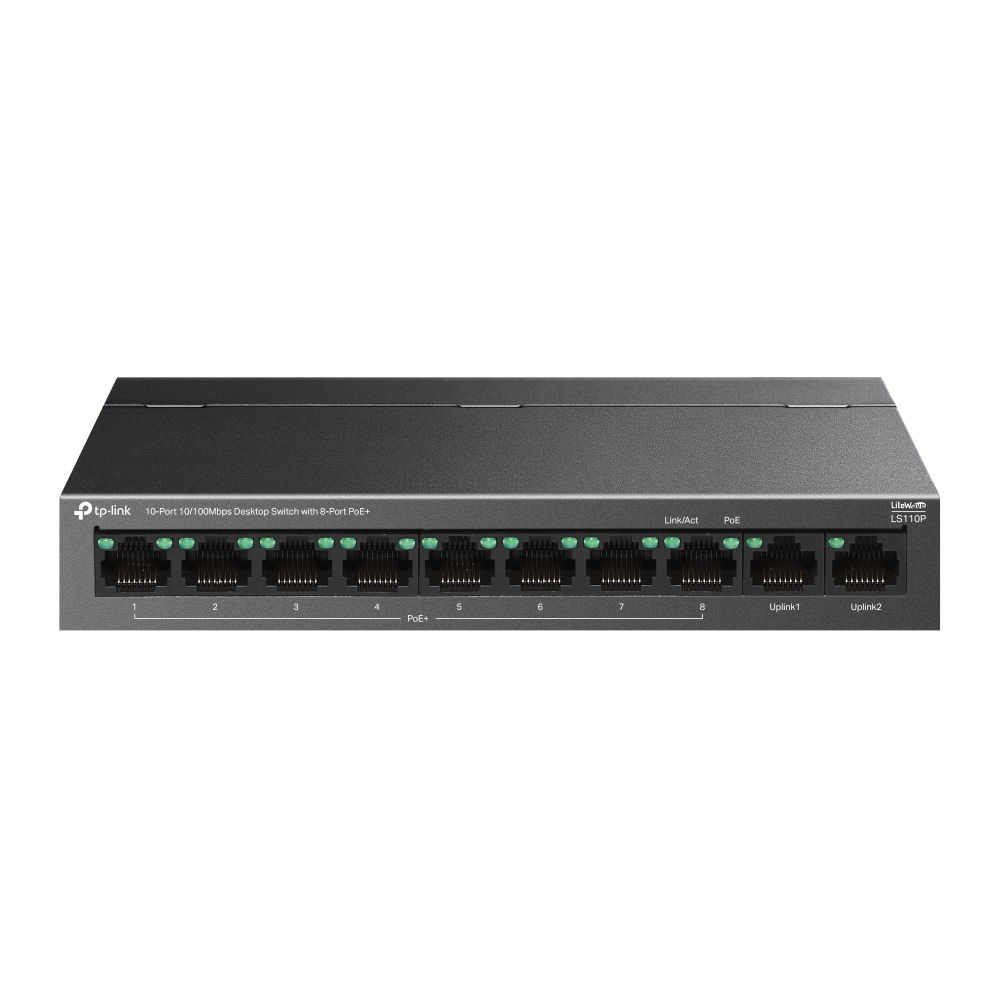

TP-Link 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+(LS110P)

Standards

IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3af, 802.3at

Interface

10× 10/100 Mbps RJ45 Ports (8× PoE+ Ports on Ports 1–8), Auto Negotiation/MDI/MDIX

Network Media

10BASE-T and 100BASE-TX: UTP Cat 3/4/5 or above (max 100m)

Power Supply

External Adapter: Input 220~240V (50/60Hz), Output 53.5 VDC / 1.92 A

LED Indicators

Power, Link/Act, PoE Status

PoE Ports (RJ45)

Ports 1–8, Standard 802.3af/at Compliant, Total PoE Budget: 96 W

Packet Forwarding Rate

1.488 Mpps

Switching Capacity

2 Gbps

Packet Buffer Memory

768 KB

Jumbo Frame

2 KB

Dimensions (W×D×H)

6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption

99.6 W

Max Heat Dissipation

338.64 BTU/h

Advanced Features

Extend Mode (Ports 1–8), Isolation Mode (Ports 1–8), PoE Auto Recovery (Ports 1–8)
