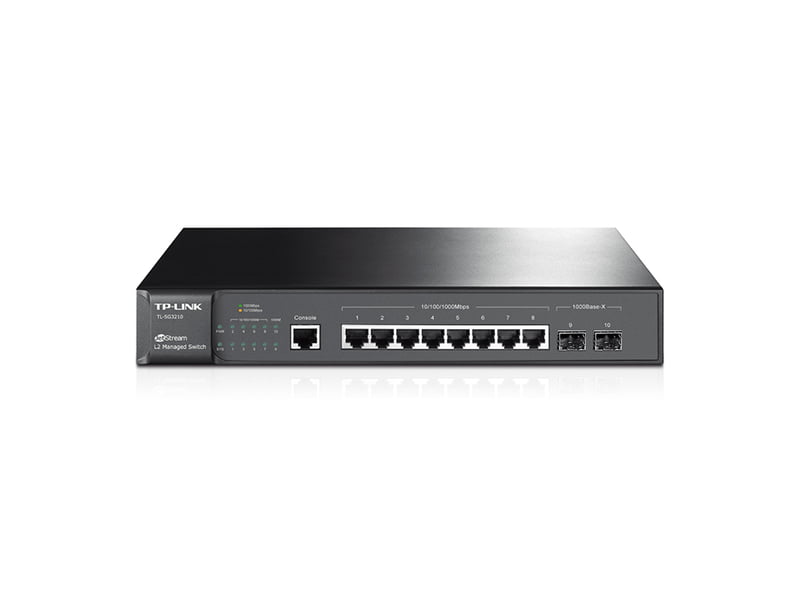

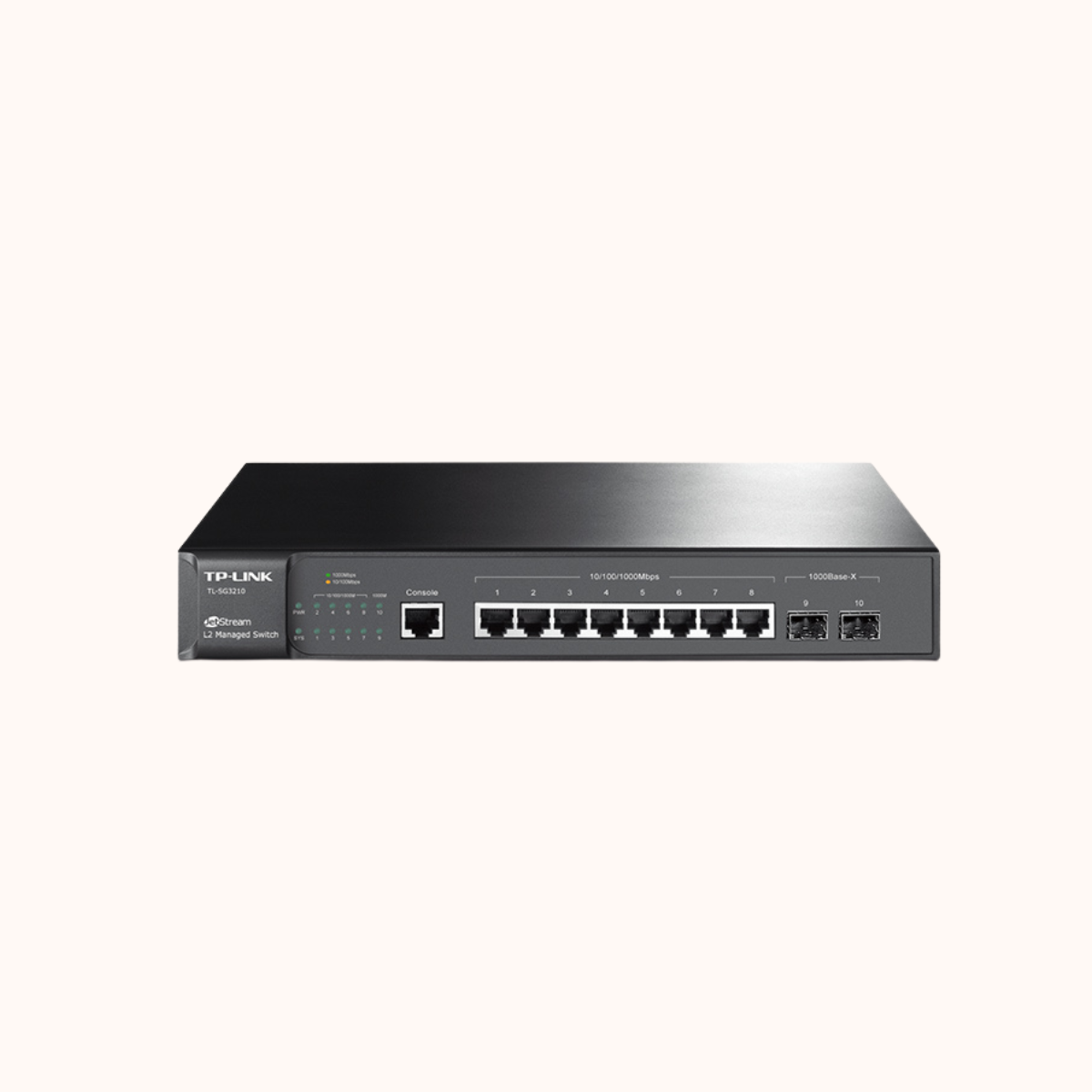

TP-link , JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots, TL-SG3210
8 Gigabit Ports: Provides 8 high-speed Ethernet ports for fast network connectivity
2 SFP Slots: Includes 2 SFP (Small Form-factor Pluggable) slots for fiber optic connections
L2 Managed Switch: Offers Layer 2 management features for efficient network control and optimization
Advanced Security & QoS: Supports VLAN, access control, and Quality of Service (QoS) for enhanced security and performance in enterprise networks
Feature | Description |
|---|---|
Model | TP-Link TL-SG3210 |
Type | 8-Port Gigabit Layer 2 Managed Switch with 2 SFP Slots |
Ports | - 8 x Gigabit Ethernet Ports - 2 x Gigabit SFP Slots for fiber optic connections |
Switching Capacity | 20 Gbps |
Forwarding Rate | 14.88 Mpps |
Layer | Layer 2 Managed Switch |
VLAN Support | Supports VLAN (802.1Q) for network segmentation and traffic isolation |
QoS (Quality of Service) | - 4-level QoS for traffic prioritization - IEEE 802.1p for efficient handling of time-sensitive applications |
Link Aggregation | Supports IEEE 802.3ad Link Aggregation (LACP) for higher bandwidth and link redundancy |
Security Features | - Access Control Lists (ACLs) for access restrictions - IP-MAC-Port Binding - Port Security and Storm Control |
Management Features | - Web Interface for easy setup and monitoring - CLI (Command Line Interface) for advanced configuration - SNMP for network management |
Redundancy and Reliability | - Supports Spanning Tree Protocol (STP) for loop prevention - Link Fault Detection and Loopback Detection |
PoE Support | No PoE (Power over Ethernet) support |
Network Monitoring | - Port Mirroring for network traffic analysis - Traffic Monitoring and Bandwidth Control for network optimization |
Performance Features | - Jumbo Frame support (up to 9K bytes) - IGMP Snooping for efficient multicast traffic management |
Redundant Power Supply (RPS) | No RPS support |
Temperature Operating Range | - Operating Temperature: 0°C to 40°C - Storage Temperature: -40°C to 70°C |
Power Supply | AC 100-240V, 50/60Hz, Internal Power Supply |
Energy-Efficient | IEEE 802.3az (Energy Efficient Ethernet) for reducing power consumption when network activity is low |
Dimensions (H x W x D) | 43.6 x 180 x 28.5 mm |
Weight | 0.72 kg |
Warranty | Limited Lifetime Warranty |
Applications | - Enterprise Networks - SMBs (Small and Medium Businesses) - Data Centers - Fiber Optic Networking - High-traffic office networks |
The TP-Link TL-SG3210 is an 8-Port Gigabit Layer 2 Managed Switch with 2 SFP slots, ideal for high-performance networking in enterprise and small to medium business (SMB) environments. It supports VLANs, QoS, link aggregation, and advanced security features to optimize traffic flow and secure the network. With fiber optic connectivity through SFP slots and robust network monitoring features, it ensures high reliability and performance for various applications, including data centers and multimedia services.
