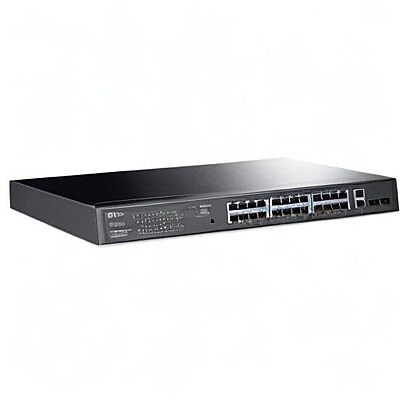

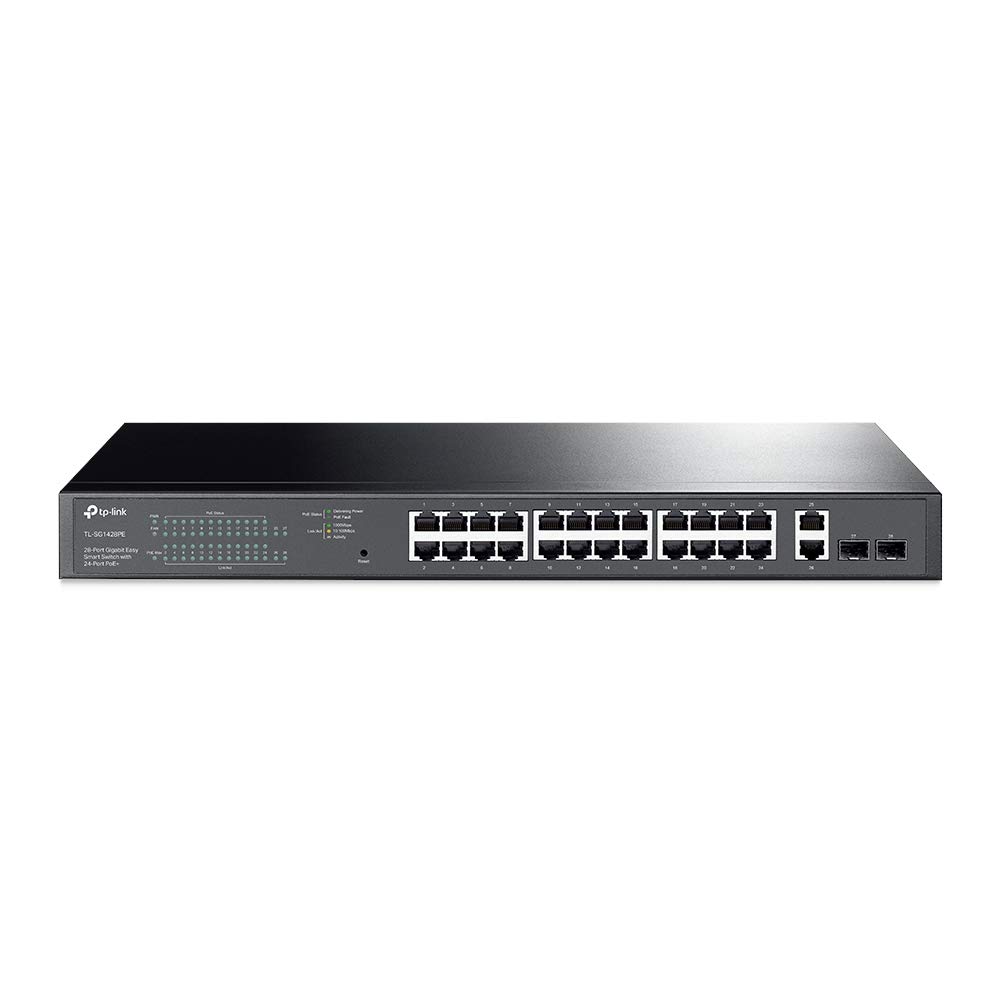

TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ (TL-SG1428PE)

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.1q, 802.1p

Interface

26 × 10/100/1000 Mbps RJ45 Ports
2 × Gigabit SFP Ports

Network Media

- 10BASE-T: UTP Cat 3/4/5 (max 100m)
- 100BASE-TX: UTP Cat 5/5e (max 100m)
- 1000BASE-T: UTP Cat 5/5e/6+ (max 100m)
- 1000BASE-X: MMF, SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

Power Supply

100–240V AC, 50/60Hz

PoE Ports (RJ45)

24 × PoE+ Ports (802.3at/af compliant)

PoE Power Budget

250 W

Dimensions (W × D × H)

17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

27 W (no PD connected)
304.7 W (with 250 W PD connected)

Max Heat Dissipation

92.07 BTU/h (no PD)
1039.03 BTU/h (with 250 W PD)

Switching Capacity

56 Gbps

Packet Forwarding Rate

41.7 Mbps

MAC Address Table

8K entries

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

Quality of Service

- Port-based / 802.1p / DSCP priority
- 4 Priority Queues
- Rate Limit
- Storm Control

L2 Features

- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention

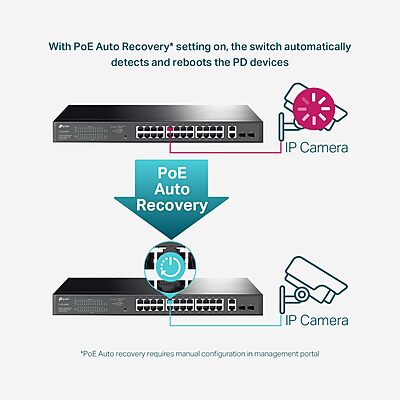

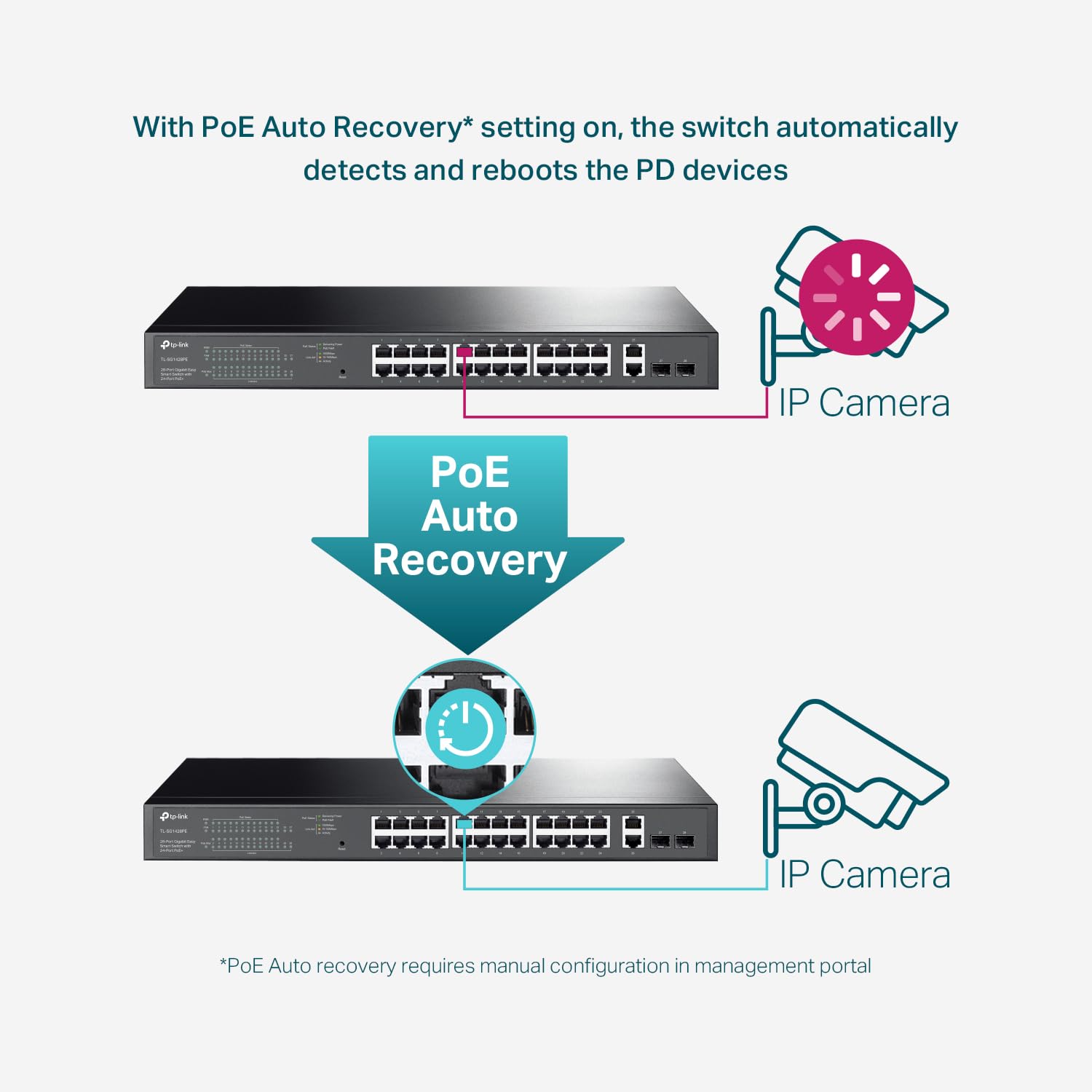

- PoE Auto Recovery

VLAN

- Up to 32 VLANs (from 4K VLAN IDs)
- MTU/Port/Tag VLAN

Management

- Web-Based GUI
- Easy Smart Configuration Utility

Transmission

Store-and-Forward

Certification

CE, FCC, RoHS

Package Content

TL-SG1428PE, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

Operating Temp.

0°C to 50°C (32°F to 122°F)

Storage Temp.

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10% to 90% (non-condensing)

Storage Humidity

5% to 90% (non-condensing)
