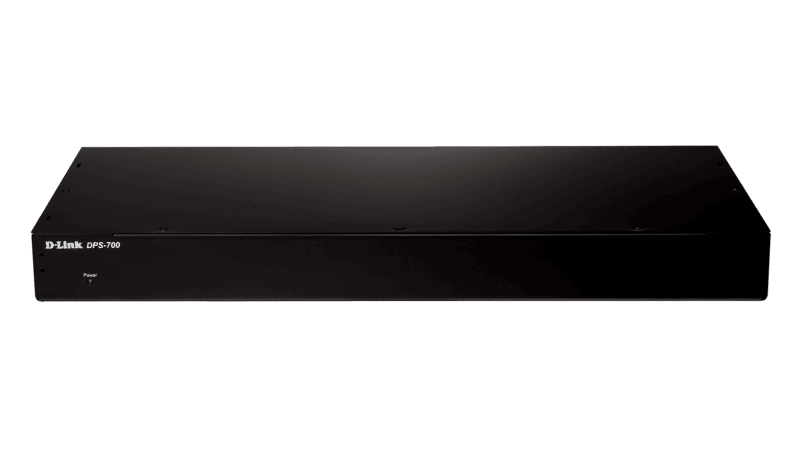

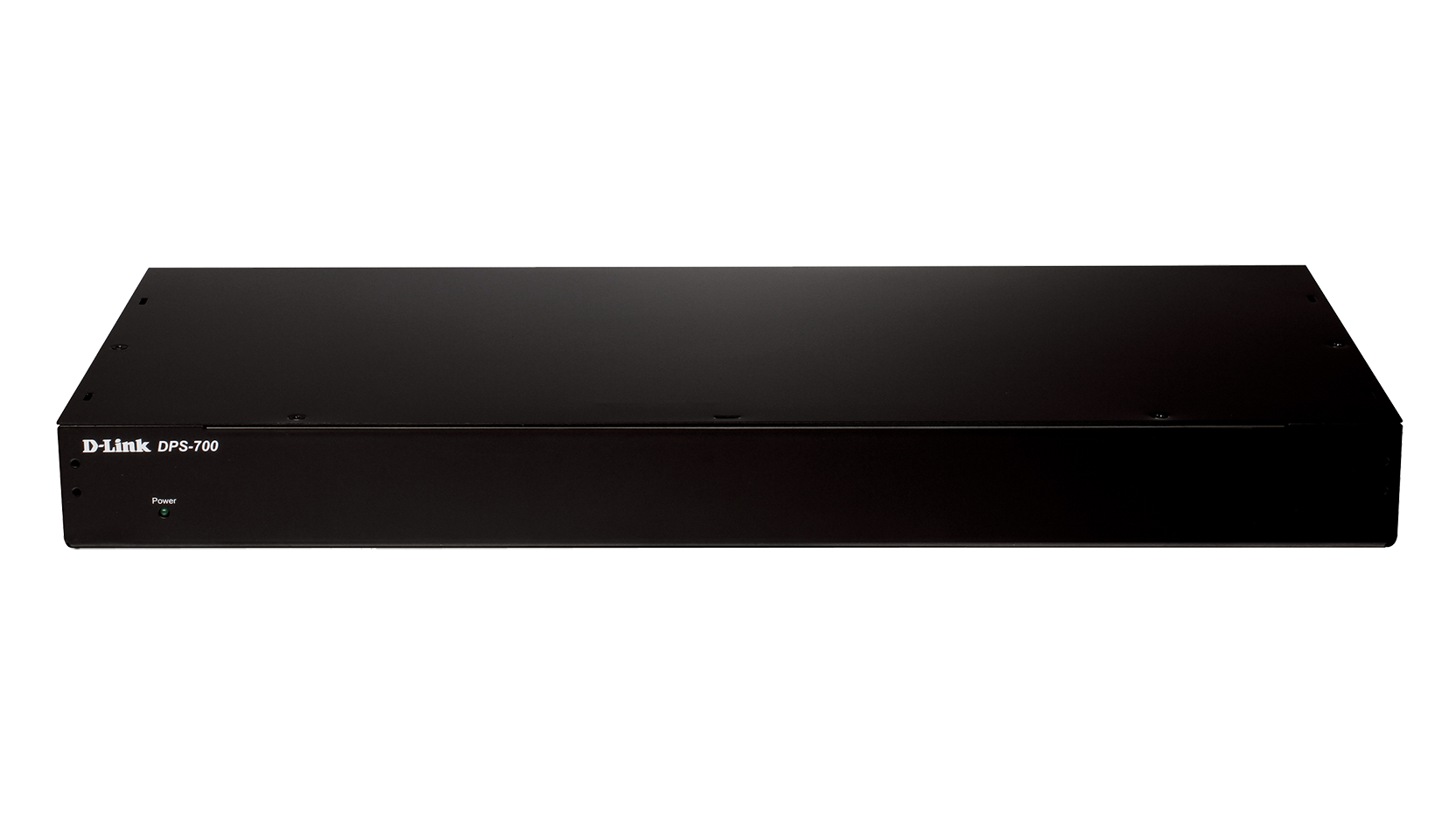

D-Link DPS-700 Power Supply (Cent)
Out of stock
Rs. 2,802.00
Rs. 6,165.00
- Redundant Power Supply keeps your switch online in case of Power Supply Failure
- 1+1 PoE Budget, allowing you to extend your PoE budget by 370 Watts on supported switches
- Rack Mountable for ease of installation
Product Details
Specifications
Product Details
Product Details
Input Voltage Range 90VAC to 264VAC
Input Frequency Range 47 Hz to 63 Hz
Maximum Input Current 7.5A at 115VAC, 60Hz
Input Frequency Range 47 Hz to 63 Hz
Maximum Input Current 7.5A at 115VAC, 60Hz
3.7A at 230VAC, 50Hz
Maximum In-rush Current 30A @ 115VAC, 60Hz
30A @ 230VAC, 50Hz
Leakage Current 3.5mA max.
Output Voltage +54VDC
+12VDC
Total Output Power 589 watts
Efficiency 80%
Over Voltage Protection Trip point: below 16V for +12V output
Auto-recovery mode against short circuit or over load conditions -59V output below -57V will protect itself against short circuit or over load condition
LED Status On: RPS good
Off: RPS failed
Dimensions (LxWxH) 196mm x 195mm x 50mm
Weight 3.7 kg
Operating Temperature 0° to 65° C
Storage Temperature -40° to 70° C
Safety Standards UL 60950 3rd Edition
Dimensions (LxWxH) 196mm x 195mm x 50mm
Weight 3.7 kg
Operating Temperature 0° to 65° C
Storage Temperature -40° to 70° C
Safety Standards UL 60950 3rd Edition
CSA 22.2 NO.234
EN 60 950
Safety Approvals UL
CUL
Specifications
Specifications
General
- Wattage700 Watt
- ModularNo
- Connector TypeAuxiliary
