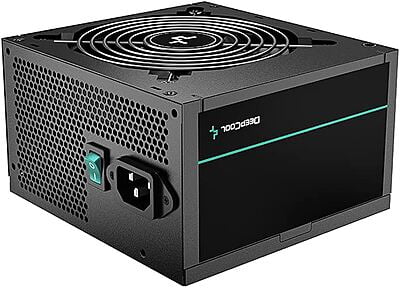

Open Box Deepcool 750 Watts PSU (PM750D)
DeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.DeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.
Category | Specification |
|---|---|
Brand | Deepcool |
Model Name | PM750D |
Power Output | 750 W (Maximum Power Output: 750 W) |
ATX & EPS Version | ATX 12V v2.4 |
Processor Support | Intel and AMD |
Power Rail | 2 x 12V Power Rails |
Efficiency | 90% |
DC to DC Conversion | Yes |
Fan Type | 1 x 120 mm Hypro Bearing |
Coating Type | PFC |
Operating Temperature | 0 to 40°C |
Protection | OPP, OVP, SCP, OTP, OCP |
Safety Standards | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
Certification | ErP (2014) |
Motherboard | 1 x (20 + 4) pin |
CPU | 2 x (4 + 4) pin |
PCI-e | 3 x PCI-e 6 pin, 2 x PCI-e 6+2 pin |
SATA | 6 x SATA cables |
Peripheral | 3 x Peripheral 4-pin connectors |
Peripheral + Floppy | 3 x Peripheral + Floppy Pin |
Dimensions (W x H x D) | 4 x 8.6 x 14 mm |
Weight | 0.69 kg |
General
- Wattage750 Watt
- ModularFully Modular
- PCIe Connector (6+2)3
- SATA Connector6
