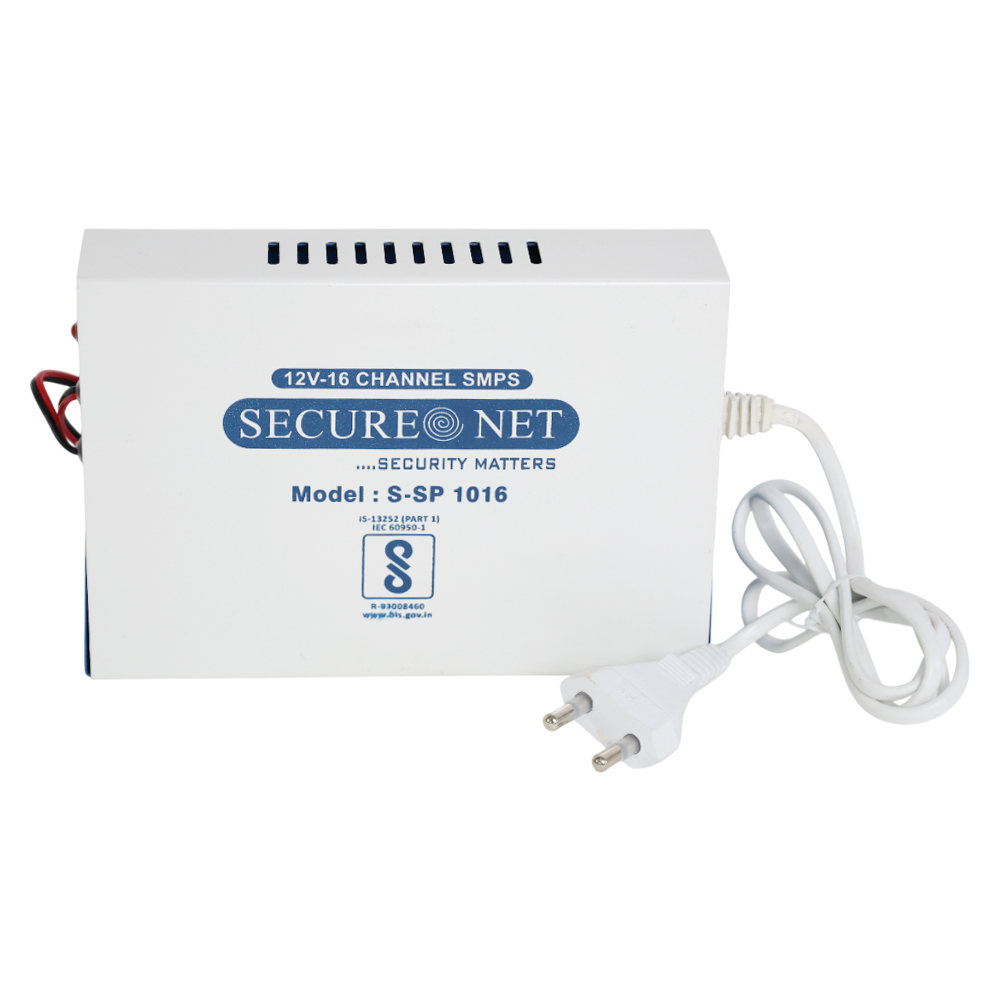

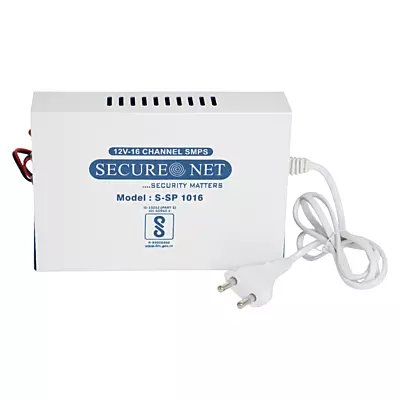

Secure Net 16 CH. POWER SUPPLY SINGLE PORT - S-SP1016
Specification | Details |
|---|
Model | S-SP1016 |
Product Type | 16 Channel CCTV Power Supply Box (Single Output Rail) |
Total Output Voltage | 12 Volts DC |
Total Output Current | 10 Amperes (Shared across all 16 channels) |
Power Output Per Channel | Up to 0.6–0.7A per channel (non-isolated) |
Power Type | Single Port (Single Circuit Rail for All Outputs) |
Input Voltage | 100–240V AC, 50/60 Hz |
Output Terminals | Screw-Terminal Block (16 Ports) |
Housing Material | Metal Cabinet (Powder-Coated Steel) |
Cooling | Ventilated Design / Passive Cooling |
Mounting Type | Wall-Mount or Surface-Mount |
Protection Features | Fuse Protected Per Channel (Glass Fuse Type) |
Indicator Lights | Individual LED Indicators for Each Channel |
Dimensions (Approx.) | 210mm × 210mm × 50mm (varies slightly by batch) |
Weight | ~1.5 kg (approximate) |
Certifications | BIS Certified, CE, RoHS Compliant |
Applications | Suitable for 16 CCTV Cameras, DVRs, Access Control Devices |
