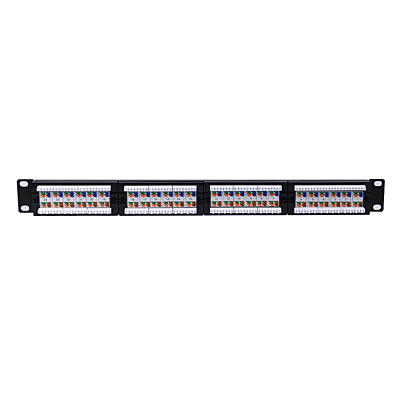

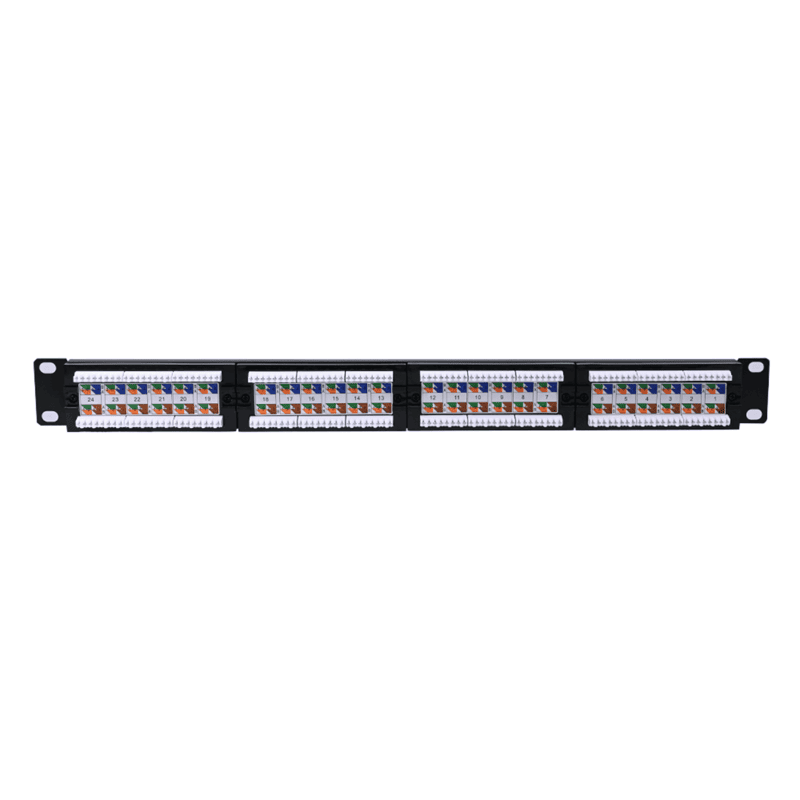

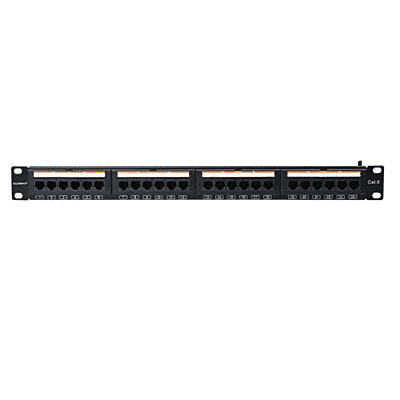

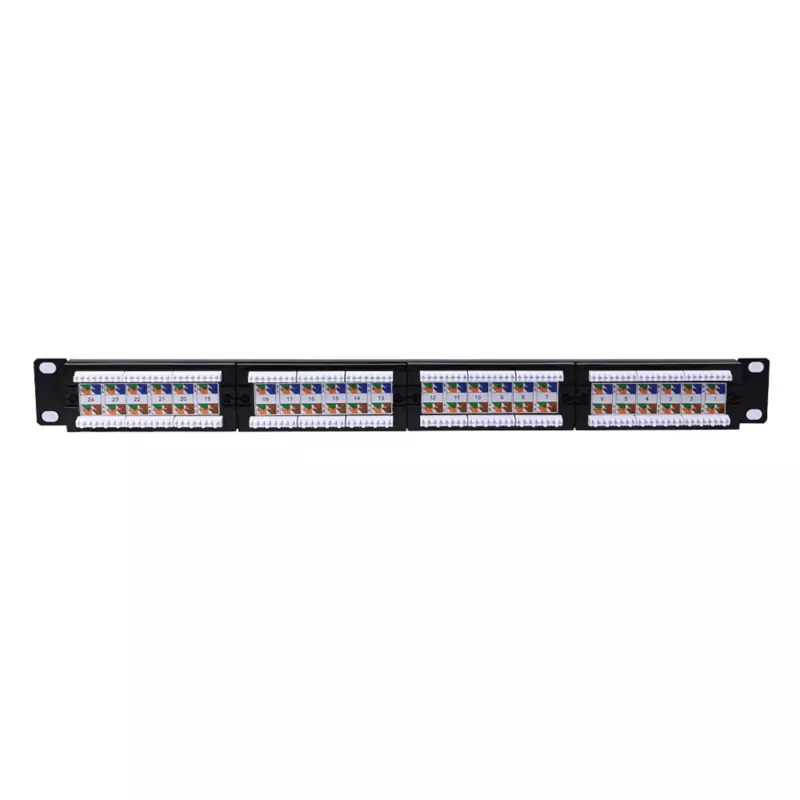

Secure Net 24 PORT PATCH PANEL - S- BP1024-C6
Out of stock
Rs. 1,600.00
Rs. 1,999.00
Specification | Details |
|---|
Model | S-BP1024-C6 |
Product Type | 24-Port Patch Panel |
Category Rating | Cat6 (ANSI/TIA-568-C.2 Compliant) |
Ports | 24 RJ45 Ports (8P8C Modular Jacks) |
Mounting Type | 19″ Rack Mountable (1U Height) |
Product Details
Product Details
Product Details
Termination Type | 110 Punch-Down Rear Terminals |
Conductor Compatibility | 22–26 AWG Solid & Stranded Copper |
Wiring Standards | T568A & T568B |
Panel Material | Cold Rolled Steel with Black Powder Coating |
Jack Material | High-Impact Flame Retardant ABS + Gold-Plated Contacts |
Labeling | Front Port Numbering with Designated Label Area |
Grounding | Integrated Grounding Lug (where applicable) |
Dimensions (L × H × D) | Approx. 48.3 cm × 4.4 cm × 2.5 cm |
Operating Temperature | -10°C to 60°C |
Compliance | RoHS Compliant, UL94V-0 Rated |
