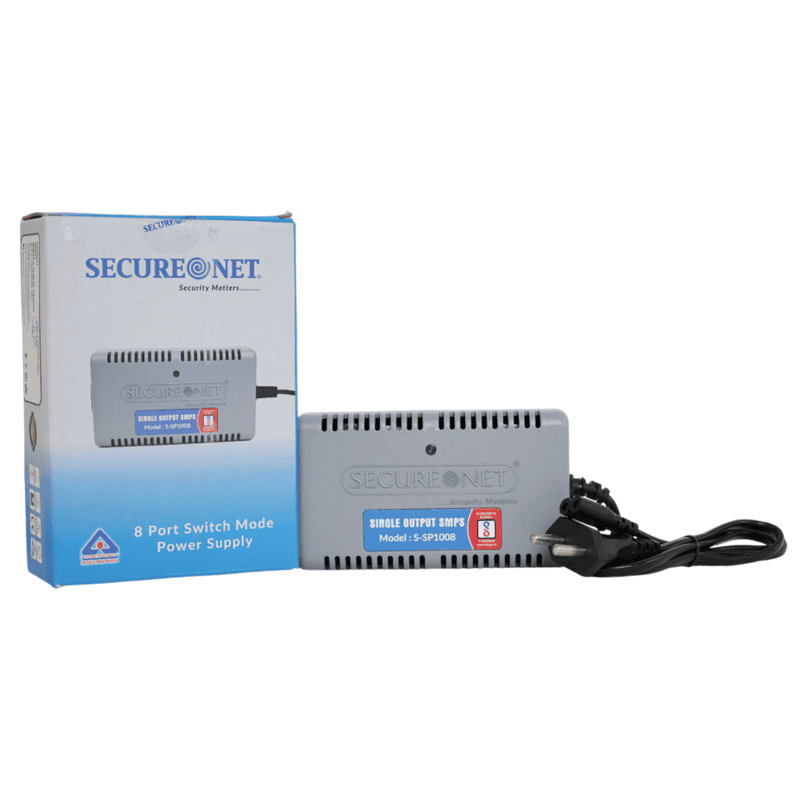

Secure Net 8 CH. POWER SUPPLY SINGLE PORT - S-SP-1008
Specification | Details |
|---|
Model | S-SP-1008 |
Product Type | 8 Channel CCTV Power Supply Box (Single Output Rail) |
Total Output Voltage | 12 Volts DC |
Total Output Current | 5 Amperes (shared across 8 channels) |
Power Output Per Channel | Up to 0.6–0.65A per channel (non-isolated) |
Power Type | Single Port Output (Unified Circuit for All Channels) |
Input Voltage | 100–240V AC, 50/60 Hz |
Output Terminals | 8 × Screw-Terminal Block |
Cooling System | Passive Cooling (Ventilated Metal Enclosure) |
Enclosure Material | Powder-Coated Steel Body |
Mounting Style | Wall Mount / Surface Mount |
Protection Features | Individual Glass Fuses for Each Channel |
LED Indicators | Separate LED Status Light per Output Channel |
Dimensions (Approx.) | 190 mm (W) × 160 mm (H) × 50 mm (D) (may vary slightly by batch) |
Weight | ~1.2 kg (approximate) |
Certifications | BIS Certified, CE, RoHS Compliant |
Application | Designed for 8-Channel DVRs, HD CCTV Cameras, Biometric Devices |
