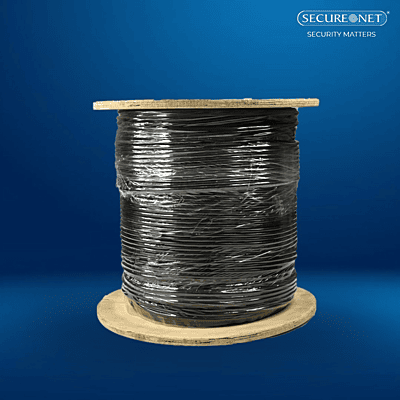

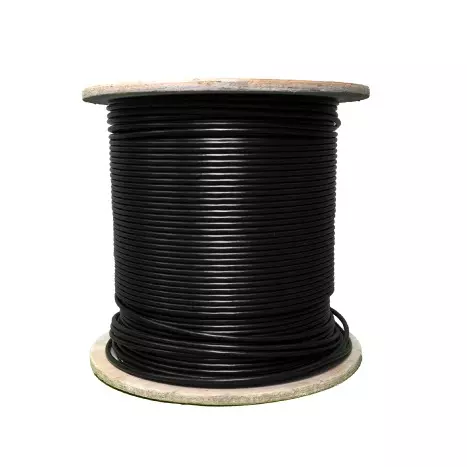

Secure Net DOUBLE JACKET (CAT 6e) -S-305
Rs. 6,400.00 Rs. 7,799.00
Out of stock
Tags:
Specification | Details |
|---|
Cable Type | 4 Pair Unshielded Twisted Pair (UTP) |
Conductor Material | Solid Bare Copper |
Conductor Diameter | 23 AWG |
Insulation Diameter | 0.970 mm (Nominal) |
Insulation Material | PE (Polyethylene) |
Jacket Material | Double Jacket – PVC |
Cable Diameter | 6 mm (Nominal) |
Color Code | Black |
Central Separator | PE Cross Separator |
Product Details
Technical Parameter | Value |
|---|---|
Characteristic Impedance | 100 ± 15% |
Mutual Capacitance | ≤ 5.6 nF / 100 m |
Conductor Resistance | < 9.38 Ω / 100 m |
Resistance Unbalance | ≤ 5% |
Capacitance Unbalance | ≤ 330 pF / 100 m |
Nominal Velocity of Propagation (NVP) | 69% |
Delay Skew | < 45 ns |
Bending Radius | < 4 × Cable Diameter at –20°C ± 1°C |
Pulling Force | 11.5 kg |
Operating Temperature Range | –20°C to +70°C |
